CE+T Modular Inverters TSI Bravo125/120 with extra AC input 125Vdc 120Vac 2.5KVA 2.5KW

Modular inverter with an extra AC input to reduce energy loss and increase the overall efficiency

TSI Bravo – 125/120 is a compact modular inverter that converts 125 Vdc power source into 120 Vac and provides a pure sine wave.

By using several modules, we can offer solutions for two-phase (2x120Vac + N) or three-phase (3x208Vac + N) infrastructures.

The extra AC input ensures a high overall efficiency (up to 95%) which results in a reduction of energy loss and heat dissipation.

This module has a modularity from 2.5 kVA to up to 80 kVA in order to be able to evolve with your needs. The hot swap feature makes maintenance easier and reduces the risk of errors.

The low ripple voltage avoids any disturbances on DC loads and batteries.

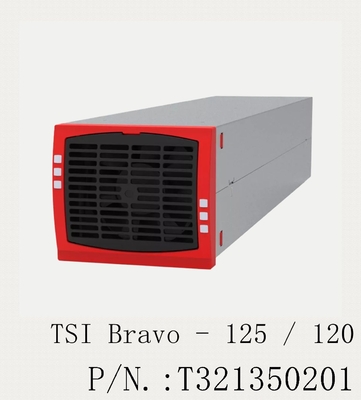

Inverter (P/N.:T321350201)

Key features:

• Extra AC input for increased efficiency
• Compact design
• Up to 80 kVA
• No disturbances on DC loads & batteries

Parameters:

Modular Inverter System Avaliable !
