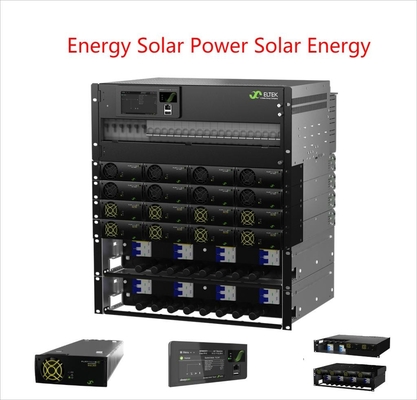

Eltek Autonomous Power Core Telecom Solar Cabinet FP2 48V 3000HE FP2 48V 3200HE Solar

-48Vdc Eltek Autonomous Power Core Solar Hybrid Power System for Telecom Solar Cabinet




Parameters :



Model	300A distribution	500A distribution
Part number	CTO30408S.4XXX	CTO3080XXS.4XXX
Power Module

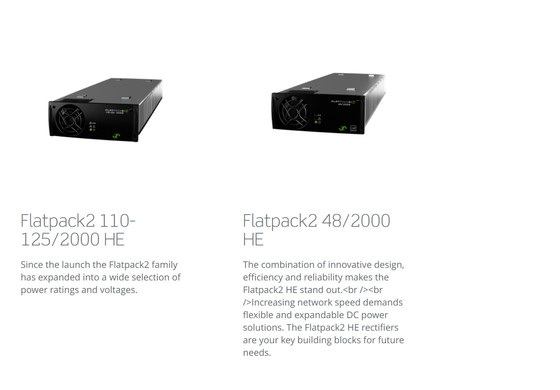

Flatpack2 Rectifiers	FP2 48/3000HE or SHE
Flatpack2 Solar charger	Flatpack2 48/3200HE solar
Input Data (Rectifiers )
Voltage range	85-300vAC (HE model) 85-264Vac (SHE solar )
Frequency	45-66HZ
Mains Configuration	3*1p 230Vac	2*3 P 400Vac
	1*3P 230Vac	Dual mains
Connection	Terminal blocks , 10mm㎡ max
Input data (Solar charger)
Voltage Range	85-420Vdc (operating range )/ 100-380Vdc (MPPT range)
Voltage start up	100Vdc
Max current	20Adc
PV connection panel
Service switches for PV arrays	4 pcs 2 pole	4 or 8 pcs 2 pole
DC SPD Type 2 (option)	Up to 4 pcs	Up to 8 pcs
Output data
Voltage	-48 Vdc	-48Vdc
Current (max)	300A	500A
Battery distribution
Number of breaker positions	6 single pole	8 single pole
LVBD	300A	500A
Battery breaker type	Plug in type
Load Distribution
Number of load positions	Up to 18*18 mm	Up to 16*18 mm
LVLD1	300A	300A
LVLD2 (optional)	150A	150A
Load breaker type	DN rail mounted
Control and Monitoring
Control and monitoring unit	Smartpack2 Touch +Smartpack2 Basic + I/Q monitor Type
Mounting location	Door panel mounted
Local operation	As the user manual
Remote operation	Ethernet for remote /local monitring and control via Web
Other Spec.
Operation tem.	-40 to +70	-40 to +70
Storage tem.	-40 to +70	-40 to +70












Solutions
For Telecommunication Companies in China and across the globe, we present a complete and innovative solution package. Our site survey is a meticulous process, designed to uncover every detail that could impact the success of a telecom project. Based on this thorough analysis, we propose professional and cutting-edge plans that push the boundaries of what's possible. Our technical support is not just reactive; it's predictive, using advanced analytics to anticipate and prevent issues before they occur. And our maintenance services are a holistic approach to system health, focusing on both immediate fixes and long-term optimization. With a competent and creative team and a global network of partners who share our vision, we are redefining the standards for telecom solutions.

FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.

2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.

3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.

4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.

5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.

6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
