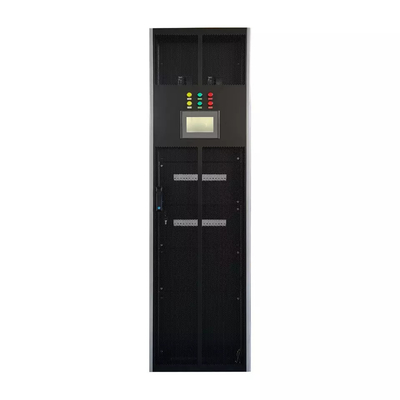

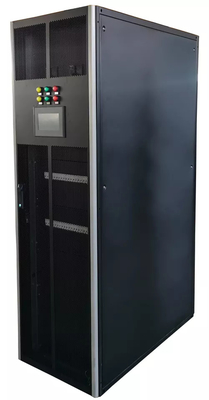

Oem 42u Fiber Low Voltage Pdu Power Distribution Unit Rack Cabinet Data Center PDU
Structural features
1.Welded frame, easy disassembly, solid andreliable structure 2.Square and round mounting holes Doubldesign, flexible installation of equipment andaccessores 3.Front and rear doors open angle> 130 degrees, convenient equipment shelves and mantenance 4.Vertical support can adjust the different installation depth, compatible with all major manufacturers of IT equipment 5.Cabinet front and rear doors and both sides can be fully sealed to prevent the formationof short air leakage 6.Sever rack beams, columns take up smaspace, make full use of the available space inside the cabinet.
Name | Quantity ( PCS ) |
Input Voltage | 220/380v, TN-S system1 |
Frequency | 50/60Hz±10%2 |
Output Voltage | 220V(1Ph+N+PE);380V(3Ph+N+PE)4 |
Capacity | 10~630A |
Distribution Architecture |
Support single bus, double bus and multi bus systems Branch air switch supports fixed switch, hot plug air switch or hot plug adjustable phase air switch |
System Function | three phase voltage, current, frequency, active power, reactive power, power factor, active electric energy, reactive electric energy, zero ground voltage, neutral line current, total harmonic content (THD), 2nd-63rd harmonic, current voltage unbalance, current K factor (KF), voltage crest factor (CF), telephone waveform factor (thff), peak voltage, voltage and current sequence, ambient temperature and humidity |
voltage, current, frequency, active power, reactive power, power factor, active electric energy, reactive electric energy, 2-31 harmonics | |
Accuracy | Incoming line: voltage / current level 0.2, active power / electric energy level 0.5s, reactive power / electric energy level 1 |
Outgoing line: voltage / current level 0.5, active power / active electric energy / reactive power / reactive electric energy level 1 | |
SPD | Standard C-level surge protection: 20KA, 40KA |
Display | Standard 7-inch touch screen, optional 10 inch or above |
Communication interface | One way RS485 Modbus-RTU |
One way RJ45 10/100m, TCP/IP Modbus Protocol (optional) | |
Dimension | 600/800(W)*1000/1100/1200(D)*2000/2200(H)mm |
Solutions
We deliver a holistic solution for telecommunication enterprises, both within China and across the globe. Our services encompass site surveys, the creation of professional plans tailored to customer needs, technical support, and maintenance services. With a skilled team and a worldwide network of reliable partners, we bring a unique and customer-centric approach to the market.
