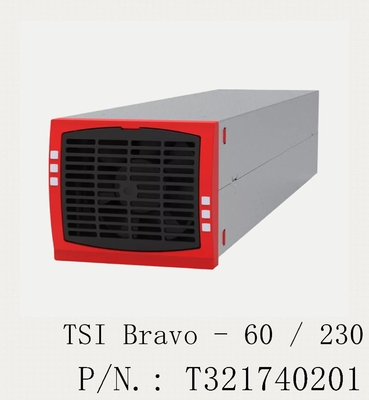

CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201

1 Pieces
MOQ
US$ 420
Price
CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201
Features Gallery Product Description Chat Now
Features
Specifications
Brand: CE+T
Product Name: TSI Bravo 60/230
Part No.: T321740201
AC Input: 230Vac
DC Input: 60Vdc
AC Output: 60Vac
Capacity: 2.5kva
Dimension: 2U X 103 Mm X 435 Mm
Weight: 5kg
Warranty: 24 Months
Highlight:

T321740201 dc ac inverters

,

60v to 230v dc ac inverters

,

T321740201 modular inverter
Basic Infomation
Place of Origin: CN
Brand Name: CE+T
Certification: CE ROHS
Model Number: TSI Bravo 60/230
Payment & Shipping Terms
Packaging Details: Wooden
Delivery Time: 10-15 workdays
Payment Terms: L/C,T/T
Supply Ability: 3000 sets per month
Product Description

CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 0

Modular inverter with an extra AC input to reduce energy loss and increase the overall efficiency.



TSI Bravo – 60/230 is a compact modular inverter that converts 60 Vdc power source into 230 Vac and provides a pure sine wave.

By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N).

The extra AC input ensures a high overall efficiency (up to 96%) which results in a reduction of energy loss and heat dissipation.

This module has a modularity from 2.5 kVA to up to 80 kVA in order to be able to evolve with your needs. The hot swap feature makes maintenance easier and reduces the risk of errors.

Main features:

  • Extra AC input for increased efficiency
  • Compact design
  • Up to 80 kVA
  • No disturbances on DC loads & batteries



Parameters:

In: DC voltage (input range) 60 Vdc (48 – 72)
In/Out: AC voltage (input range) 230 Vac (150 – 265)
Output power 2.5 kVA / 2 kW
Efficiency: DC/AC 91%
Efficiency: AC/AC 96%
Temperature -20°C to 65°C
Dimension 2U x 103 mm x 435 mm
Part number T321740201



CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 1

CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 2CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 3

CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 4



CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 5

CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 6



CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 7

CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 8

CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 9

CET Modular Dc Ac Inverters TSI Bravo 60/230 With Extra AC Input 60Vdc 230Vac 2.5KVA 2KW P/N T321740201 6
