TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201

1 Pieces

MOQ

US$ 320

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: CE+T

Product Name: TSI Bravo 24/230

Part Number: T321720201

AC Input: 230Vac

DC Input: 24Vdc

AC Output: 230Vac

AC To DC: 89.5%

DC To AC: 95.5%

Warranty: 12 Monthes

Highlight:

24Vdc 230Vac dc ac inverters

P/N T321720201 dc ac inverters

24Vdc 230Vac modular inverter

Basic Infomation

Place of Origin: CN

Brand Name: CE+T

Certification: CE / UL

Model Number: TSI Bravo 24/230

Payment & Shipping Terms

Packaging Details: Wooden

Delivery Time: 10-15 workdays

Payment Terms: L/C,T/T

Supply Ability: 3000 sets per month

Gallery

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201

Product Description

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 0

TSI Bravo24/230

Name: TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: TSI Bravo 24/230
Price: 320 USD
Availability: InStock

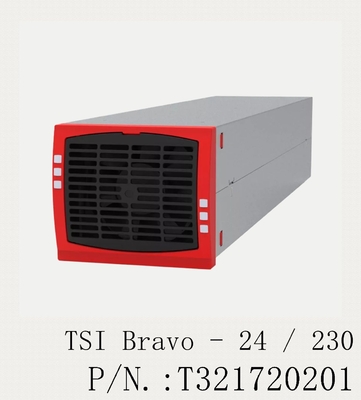

TSI Bravo - 24/230 is a compact and modular inverter that converts a 24 Vdc power source into 230 Vac and provides a pure sine wave.

By using at least three modules, we can offer solutions for three-phase infrastructures (3x400Vac + N).

The additional AC input ensures a high overall efficiency (up to 95.5%) which results in a reduction of energy loss and heat dissipation.

This module has a modularity ranging from 1.5 kVA to up to 48 kVA to be able to evolve with your needs.

The hot swap feature makes maintenance easier and reduces the risk of errors.

The low ripple voltage avoids any disturbances on DC loads and batteries.

Application:

All business-critical applications and all types of AC loads.

The design is modular and scalable with hot-swappable inverter modules, which ensures low Mean

Time to Repair (MTTR),

reduction in service costs, and meets the changing needs for future expansion.

Parameters:

In: DC voltage (input range)	24 Vdc (19 – 35)
In/Out: AC voltage (input range)	230 Vac (150 – 265)
Output power	1.5 kVA / 1.2 kW
Efficiency: DC/AC	89.5%
Efficiency: AC/AC	95.5%
Temperature	-20°C to 65°C
Dimension	2U x 103 mm x 435 mm
Part number	T321720201

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 2

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 3

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 4

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 5

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 7

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 8

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 9

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 10

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 11

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 12

TSI Bravo 24/230 Dc Ac Inverters 1.5kva 1.2kw 24Vdc For Low DC Voltage P/N T321720201 13
