Home /Products/DC AC Inverters/3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201

3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201

1 Pieces
MOQ
US$ 1
Price
3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Brand: CE+T
Product Name: Sierra 25 – 380/230-277
Part No.: T721D70201
AC Input: 230 /240/277 Vac
DC Input: 340Vdc
AC Output: 230 /240/277 Vac
DC Output: 380Vdc
Package: Wooden Cartons
Warranty: 12 Monthes
Capacity: 2.7KW
Highlight:

AC DC Loads ups converter

,

P/N T721D70201 ups converter
Basic Infomation
Place of Origin: CN
Brand Name: CE+T
Certification: CE / UL
Model Number: XM-4
Payment & Shipping Terms
Packaging Details: Wooden
Delivery Time: 10-15 workdays
Payment Terms: L/C,T/T
Supply Ability: 3000 sets per month
Product Description

3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 0

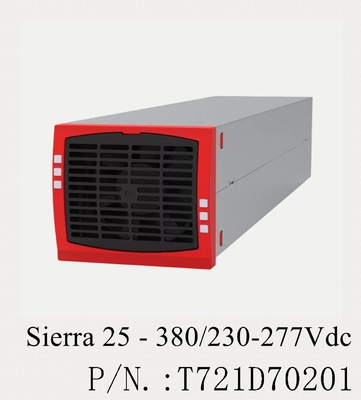

CE+T UPS Converter 3KVA 2.7KW Sierra 25 – 380/230-277 for AC &DC loads (P/N.: T721D70201)



Sierra 25 – 380/230-277 can be used as a UPS to secure AC & DC loads and charge the batteries.

This solution is designed for high-voltage DC infrastructures.

The 3 all bidirectional ports allow for multiple innovative applications such as grid reinjection, peak shavings,

phase balancing or energy sharing through DC distribution, among many others.

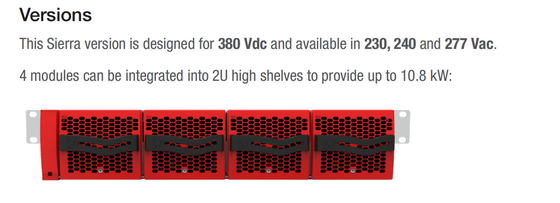

By using several modules, we can offer solutions for three-phase (3x400Vac + N) infrastructures.

The module can be integrated in small or large cabinets to reach up to 2 MW. With our new Inview S monitoring,

you can benefit from a unique experience.

The total output power per module is 2.7 kW, limited to 2.4 kW for each AC or DC port.





Parameters:

In/Out: DC voltage (range) 380 Vdc (200 – 430)
In/Out: AC voltage (range) 230, 240 & 277 Vac (150 – 293)
Output power 3 kVA / 2.7 kW
Efficiency: DC/AC 94.5%
Efficiency: AC/AC 96%
Temperature -20°C to 65°C
Dimension 2U x 103 mm x 435 mm
Part number T721D70201



3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 1



3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 2



3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 3





3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 4

3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 5





3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 6



3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 7

3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 8

3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 9

3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 83KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 11

3KVA 2.7KW Sierra 25 – 380/230-277 ups converter For AC DC Loads P/N T721D70201 12
