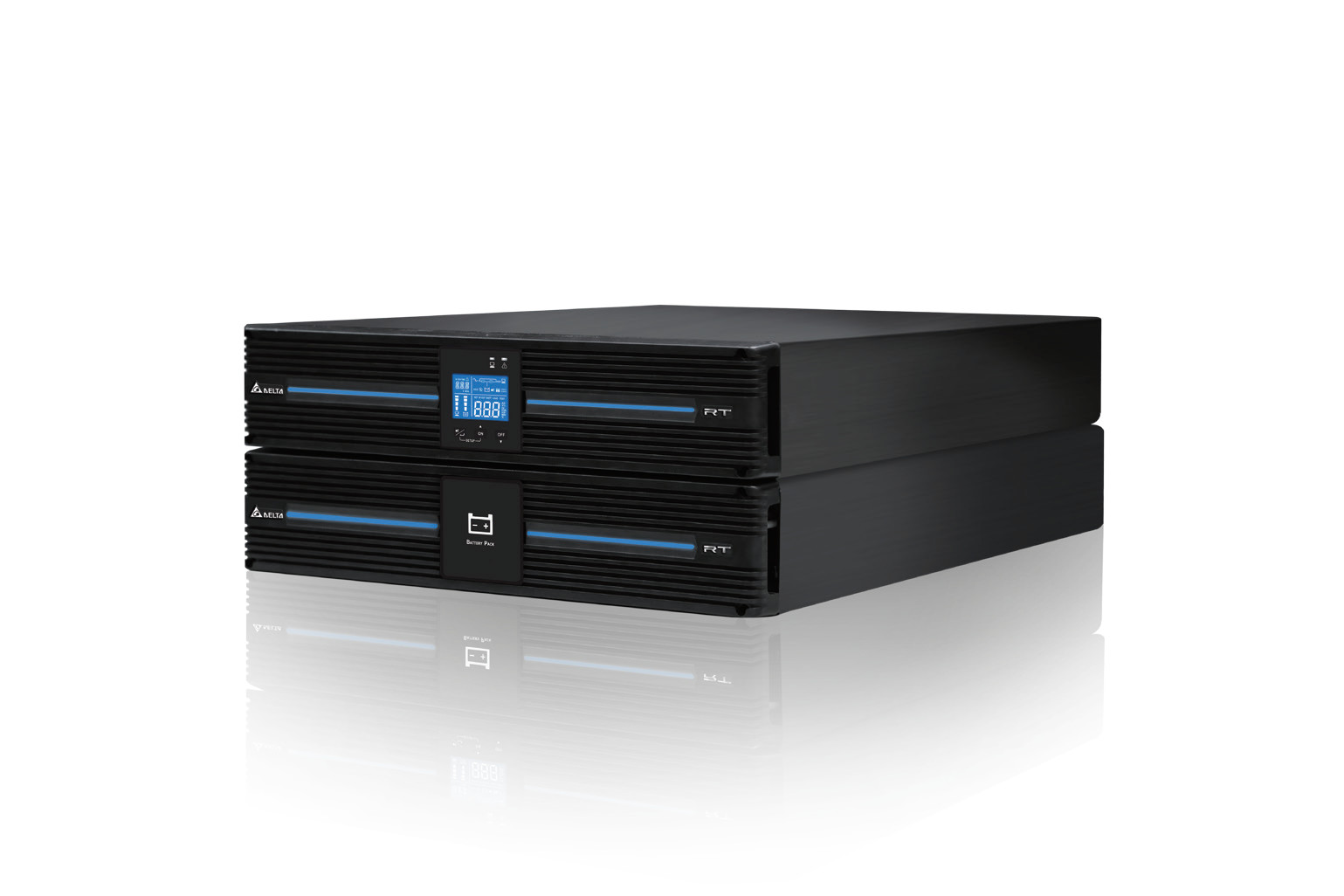

Delta Amplon Family RT series Single Phase 1KVA 2KVA 3KVA UPS
Reliable power with greater energy-saving features
The Amplon RT 1-3kVA series is an online double-conversion UPS providing consistent sine-wave power to your critical equipment. It supports personal computers, networks, servers, VoIP and telecommunications. The Amplon RT 1-3kVA series features an output power factor of 0.9 and best-in-class AC-AC efficiency up to 94% resulting in greater energy savings. Optional external battery pack can be connected for longer backup time to keep your applications safe and running smoothly at all times.
Tech Speificaiton
| Technical Specifications |
|
| Model |
|
RT-1K RT-2K |
RT-3K |
| Power Rating |
|
1kVA/0.9kW 2kVA/1.8kW |
3kVA/2.7kW |
| Input |
Nominal Voltage |
200*/208*/220/230/240Vac |
|
|
Voltage range |
175~280Vac (full load); 120~175Vac (70~100% load) |
|
|
Frequency |
40~70Hz |
|
|
Power Factor |
> 0.99 (full load) |
|
|
Current Harmonic Distortion |
< 5% |
|
| Output |
Power Factor |
0.9 |
|
|
Voltage |
200*/208*/220/230/240Vac |
|
|
Voltage Regulation |
± 1% (linear load) |
|
|
Frequency |
50/60Hz ± 0.05Hz |
|
|
Voltage Harmonic Distortion |
< 2% (linear load) |
|
|
Overload Capability |
< 105%: Continuous; 105~125%: 1 minute; 125~150%: 15 seconds |
|
|
Receptacle |
IEC C13 x 6 IEC C13 x 6, IEC C19 x 1 |
|
| Efficiency |
AC-AC |
90% Up to 94% |
|
|
ECO Mode |
96% Up to 97% |
|
| Battery |
Battery Voltage |
24Vdc 48Vdc |
72Vdc |
|
Typical Backup Time** |
6.5 minutes 7 minutes |
|
|
Charge Current |
1.5A 2A |
|
|
Recharge Time |
3 hours to 90% |
|
| Audible Noise |
|
< 40dB < 43dB |
< 46dB |
| Display |
|
LCD display and LED indicators |
|
| Interfaces |
|
SMART Slot x 1, RS-232 Port x 1, USB Port x 1, REPO x 1 |
|
| Conformance |
|
CE, TISI, RCM, EAC |
|
| Dimensions (W x D x H) |
UPS |
440 x 335 x 89mm 440 x 432 x 89mm |
440 x 610 x 89mm |
|
External Battery Pack |
440 x 335 x 89mm 440 x 432 x 89mm |
440 x 610 x 89mm |
| Weight |
UPS |
12kg 18kg |
28kg |
|
External Battery Pack |
15kg 27kg |
44kg |
| Environment |
Operating Temperature |
0~50°C*** |
|
|
Relative Humidity |
5~95% (non-condensing) |
|
Solutions
Our all-inclusive solutions cater to the needs of Telecommunication Companies across China and the globe. We begin with a detailed site survey to evaluate the site's suitability for telecom installations. We then create professional and customized plans that are tailored to the customer's specific needs. Our technical support is knowledgeable and experienced, providing expert guidance, and our maintenance services keep the telecom equipment in top shape. With a team of skilled professionals and a global network of trusted partners, we are a trusted partner for telecom companies.
FAQ :
1.Q: What quality control methods do you use?
A: We have a strict quality control system in place. Before products are shipped, they undergo testing in simulated real - life usage conditions, along with load, full load, and current sharing tests to ensure they meet our high - quality criteria.
2.Q: Is there a limit to the smallest order I can make?
A: There’s no minimum order quantity. You can order just one item if that’s what you need. But do be aware that the price and delivery time may change depending on the order volume.
3.Q: Could you tell me something about your company?
A: Absolutely! I’ll forward our company introduction document to you shortly. It will give you a complete and concise overview of our company, including our business operations, achievements, and corporate culture.
4.Q: What makes your company unique?
A: Our company offers the advantage of a large inventory, ensuring a stable supply for future orders. We also provide customized solutions to meet the diverse needs of our customers, offering flexibility and high - quality service.
5.Q: Can I request samples and get pricing information?
A: Yes, you can request samples. The sample price is based on the regular rate, and the shipping cost will be your responsibility.
