Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module

1 piece
MOQ
499 USD/pc
Price
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Brand: Eltek
Part Number: 241123.100
Product Name: Inverter Module
Model Name: Flatpack2 230/1500 48/1200
AC Input: 185 - 275 VAC
DC Input: 40 - 58 VDC
AC Output: 200 - 240 VAC
DC Output Power: 1200 W
DC Output Cu6,3 ADCrrent: 25 ADC
Package: Cartons
Highlight:

48V Flatpack2 48/1200 241123.100

,

Eltek AC DC inverter Rectiverter 241123.100

,

48V Flatpack2 230/1500
Basic Infomation
Place of Origin: CN
Brand Name: Eltek
Certification: CE,UL
Model Number: 241123.100
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 6-8 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000 pieces / month
Product Description

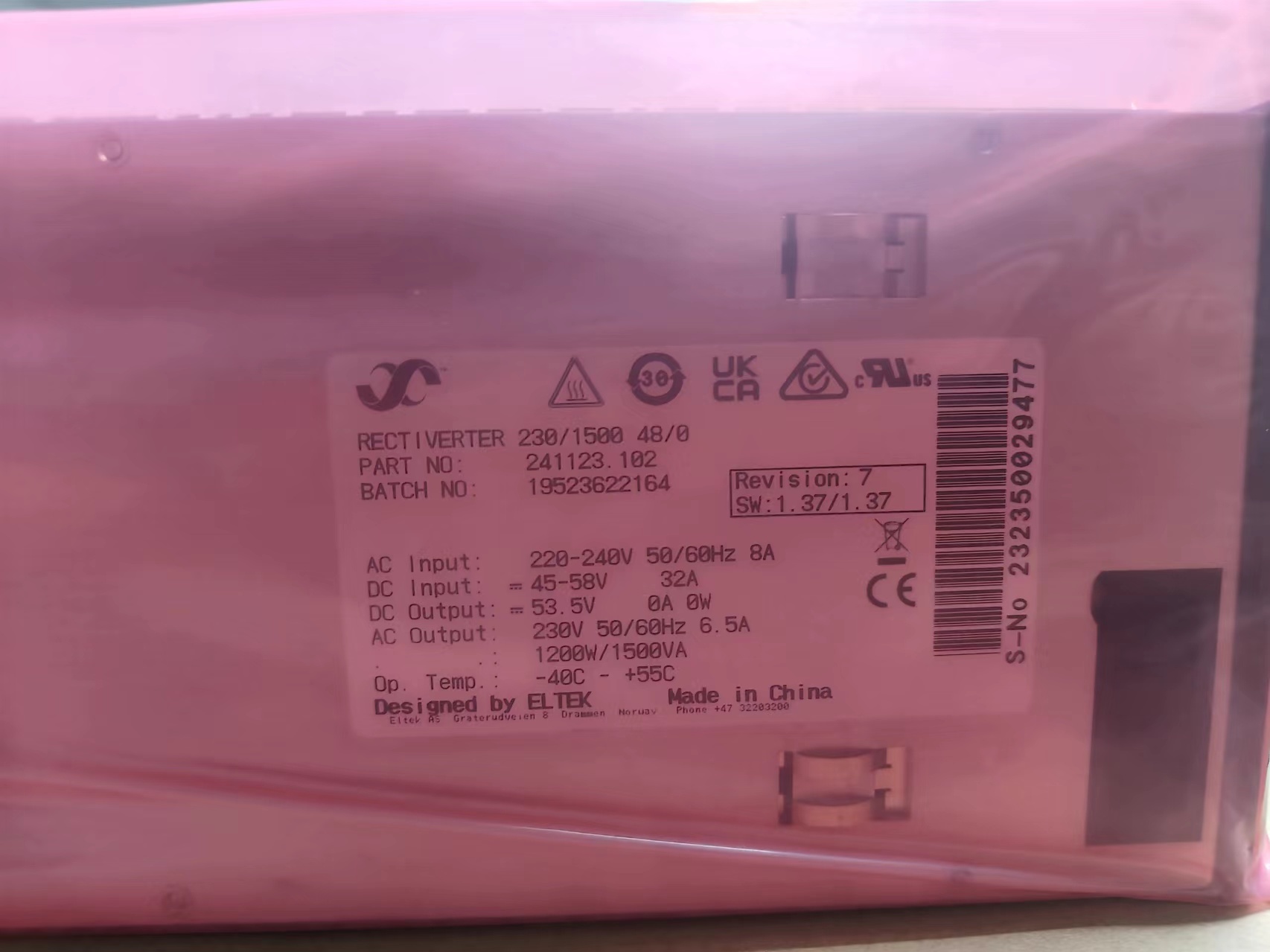

Eltek AC DC Inverter Rectiverter 48V Flatpack2 230/1500 48/0 (P/N: 241123.102)
Eltek 48V 230V/1500VA High Efficiency DC AC Inverter Rectiverter Flatpack2 Module 0
Product Overview

Built on HE technology from the Flatpack2 HE rectifier family, the Rectiverter 230V/1500VA 48V/1200W provides backed up power for 230 Vac and 48 Vdc loads with minimum losses and footprint.

Rectifier and Inverter in One Unit

The Rectiverter is a 3-port device capable of charging the 48V battery while simultaneously providing power for AC and DC loads. During mains outage, the Rectiverter feeds AC loads using energy stored in the battery.

Key Features
  • Unique 3-in-1 operation
  • Inverter functionality
  • Rectifier functionality
  • Power source transfer
  • Modular design
  • High efficiency
  • Global compliance
  • Patented technology
  • Hot pluggable
  • Voltage keying
Technical Specifications
Parameter Specification
AC Output Voltage 230 VAC (200-240 VAC adjustable)
AC Output Power 1200 W (1500 VA) continuous / 2000 VA overload (<15s)
DC Output Voltage 53.5 VDC (43-58 VDC adjustable)
DC Output Power 1200 W maximum @ nominal input
AC Input Voltage 185-275 VAC / 170 VAC LV disconnect
Efficiency >96% (mains mode), >94% (inverter mode)
Operating Temperature -40 to +75°C (-40 to +167°F)
Dimensions 109 x 41.5 x 327mm (4.25 x 1.69 x 13")
Weight 1.95 kg (4.3 lbs)
MTBF 260,000 hours @ 25°C ambient

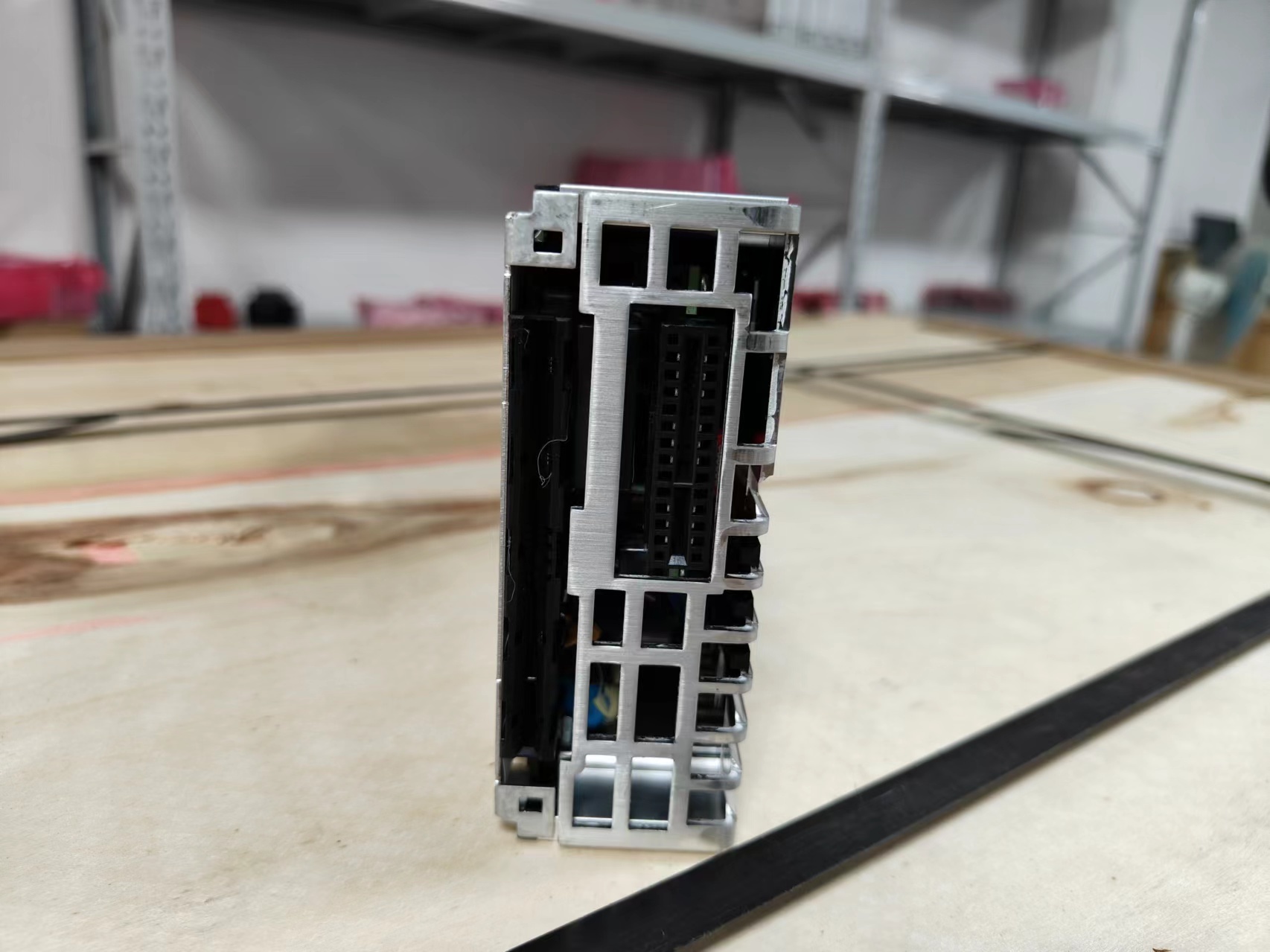

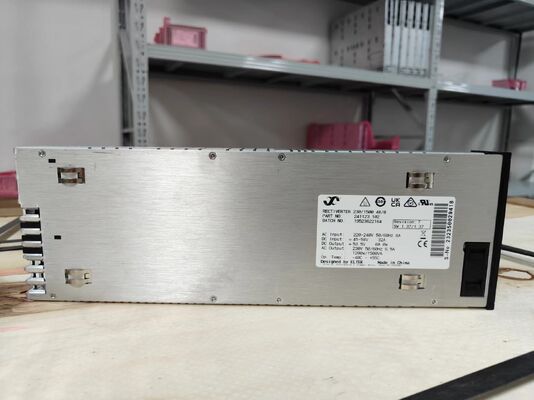

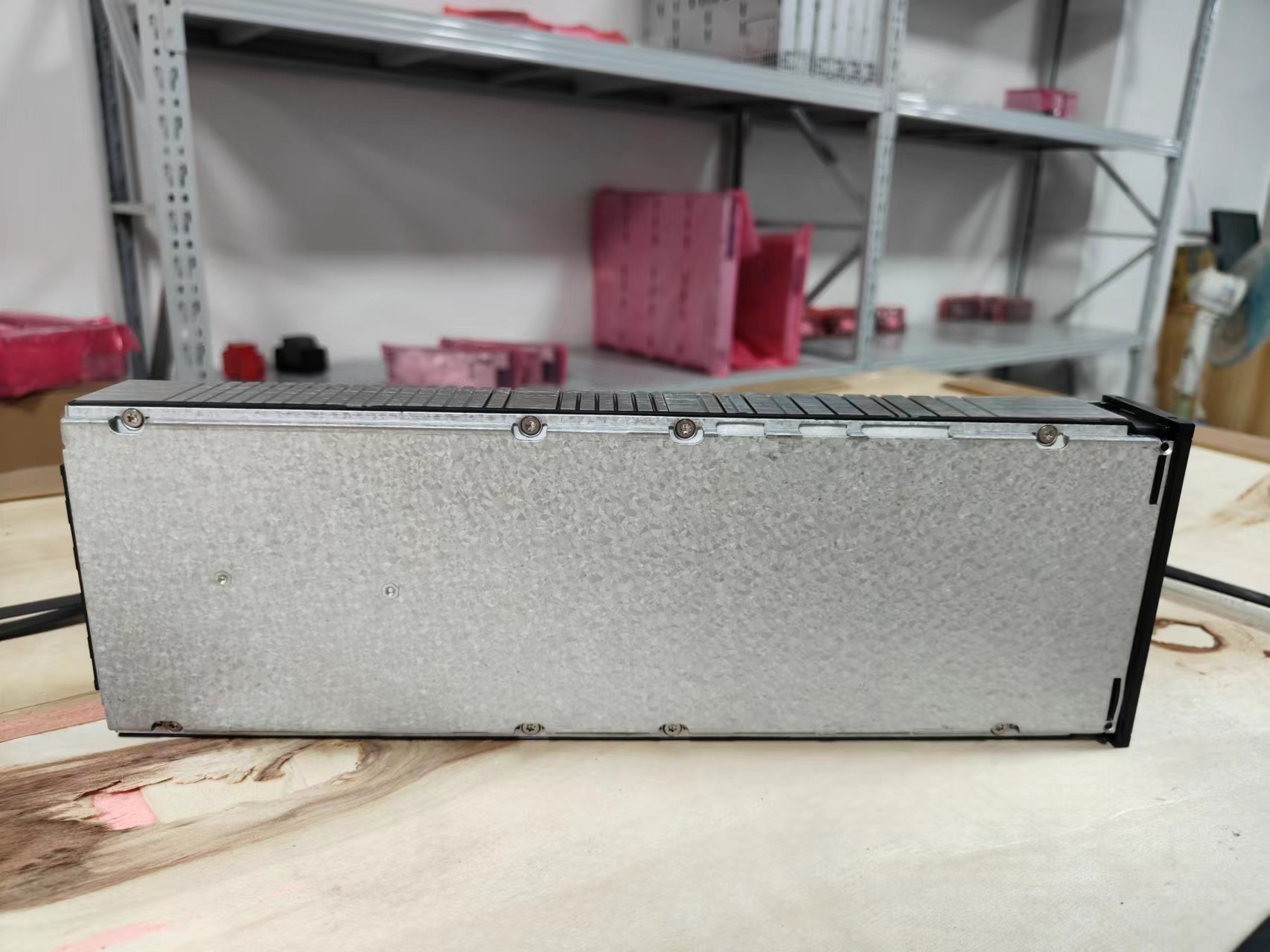

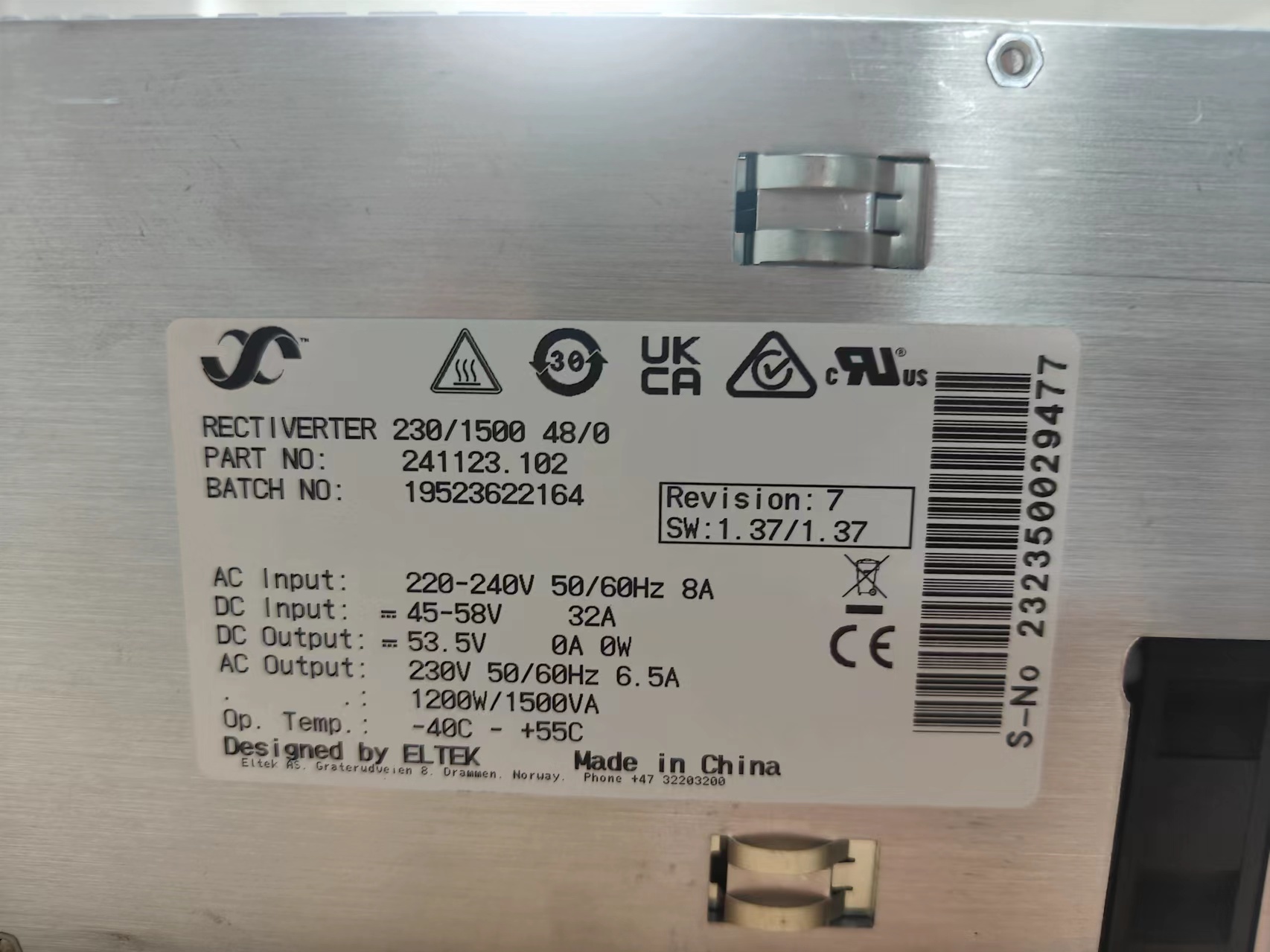

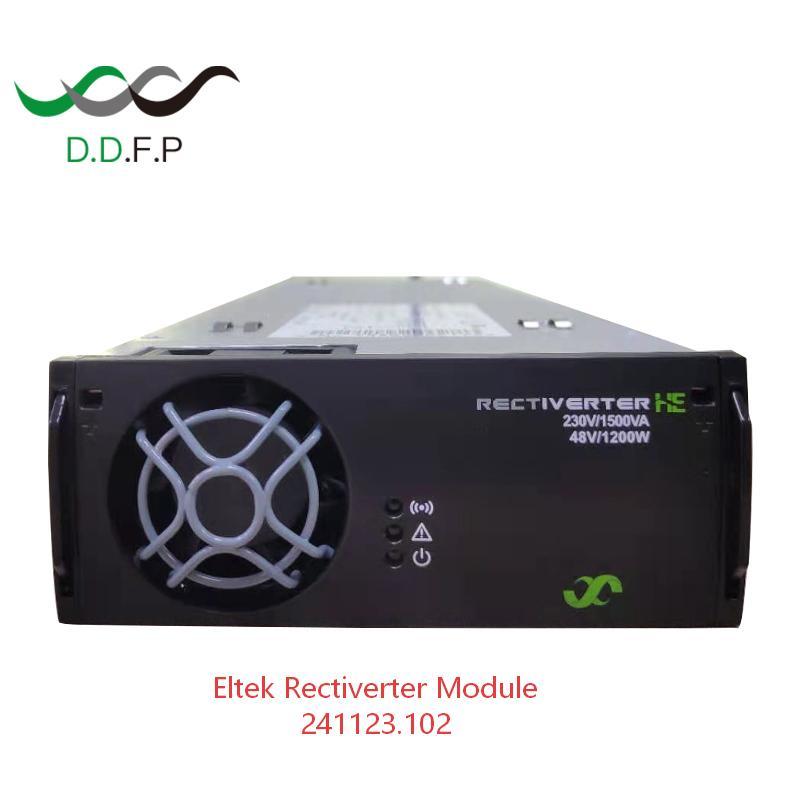

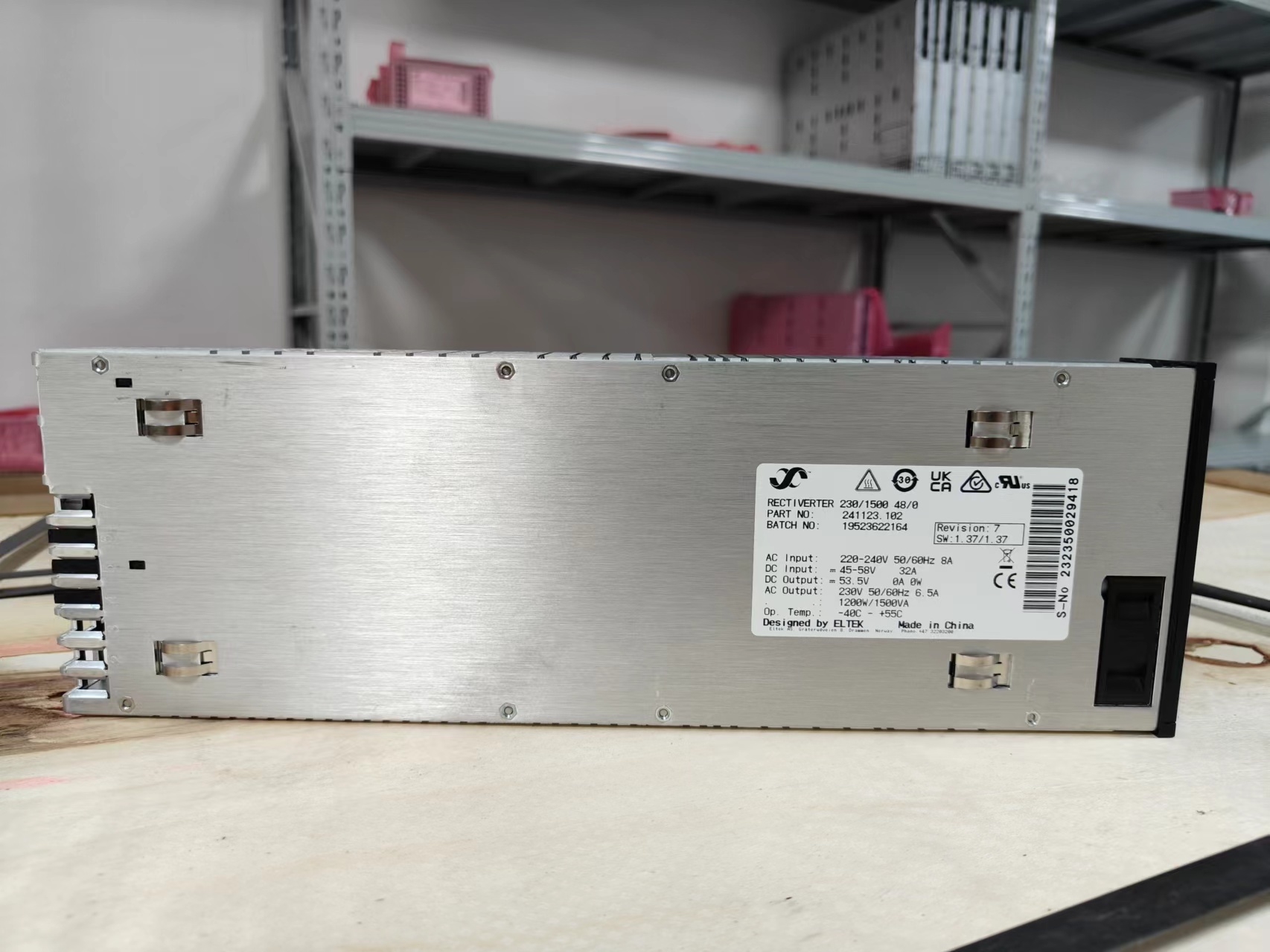

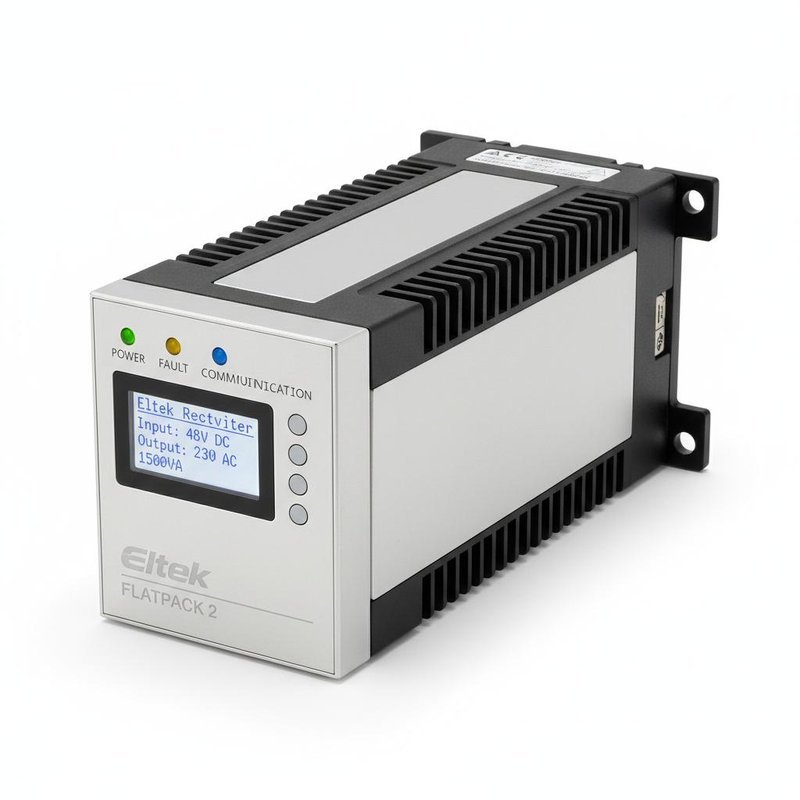

Product Images
