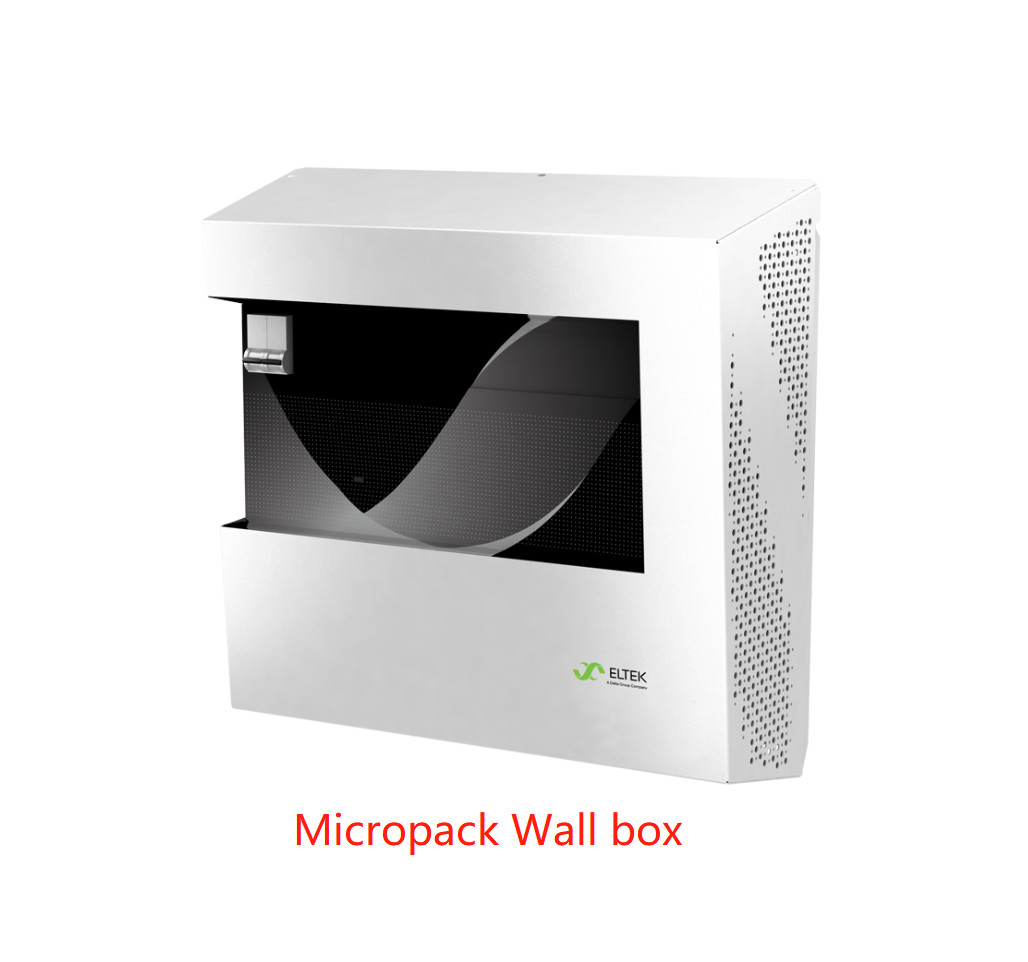

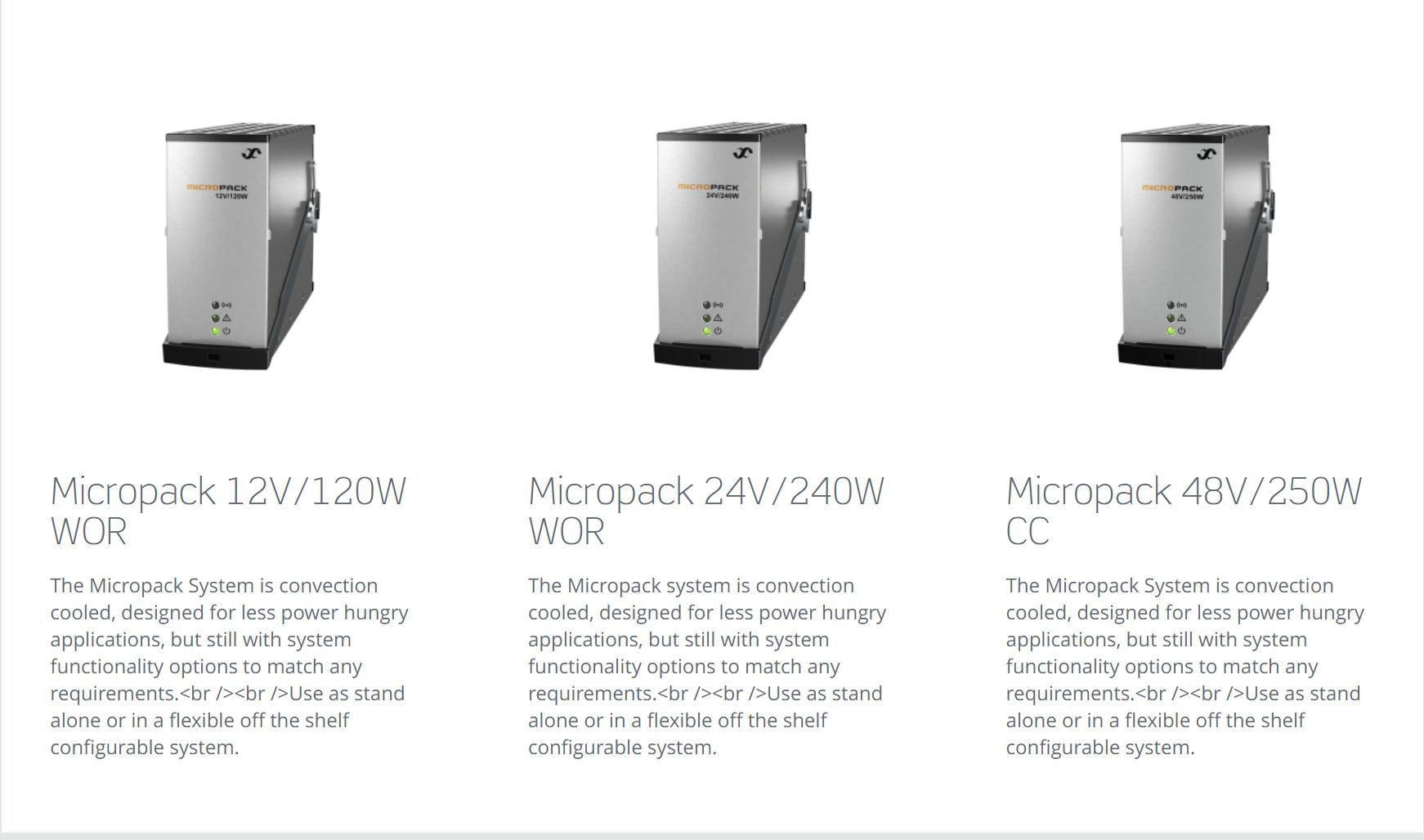

Micropack Wallbox
Compact design and simple installation and optional internal backup batteries makes it a really micro DC backup system. The Micropack wallbox has been designed for industrial and telecom applications with power requirements in the range of 120 - 1000W.
Key features
- Compact design
- Bulk-feed or integrated distribution
- Digital controllers
- The box is optimized for Micropack with its natural convection cooling
- Unique install ability
- Simple removable front cover effective time-to-install
- Global approvalsMicropack Wallbox is CE marked for worldwide installation
APPLICATIONS
l Telecom - Wireless, fiber and broadband
l power systems.
l Industrial – Power utilities, process
l industry, marine and offshore
Parameters :
| |
Model |
Bulk Feed Compack |
Bulk Feed SP2 |
2 - pole dist. Compack |
2 - pole dist. SP2 |
1 - pole dist. Compack |
|
|
| |
Part number |
CTOU0410.XXXX |
CTOU0410.XXXX |
CTOU0410.XXXX |
CTOU0410.XXXX |
CTOU0410.XXXX |
| |
INPUT DATA |
|
|
|
|
|
|
| |
Voltage (range) |
1x single phase feed (85 - 300) V AC |
|
|
| |
Single AC feed |
• |
• |
• |
• |
• |
| |
Single AC feed with SPD ( OVP Class 2) |
Option |
Option |
Option |
Option |
Option |
| |
Recommended input breaker |
10 A |
| |
Protection |
Individual fuse in rectifier module On/ Off MCB |
| |
Connection |
Directly on input
MCB, up to 25mm 2
|
Directly on input
MCB, up to 25mm 2
|
Terminal, max 4mm 2 |
Terminal, max 4mm 2 |
Directly on input MCB, up
to 25mm 2
|
| |
OUTPUT DATA |
|
|
|
|
|
|
| |
Voltage |
12-48 V DC |
24-48 V DC |
12-48 V DC |
24-48 V DC |
- 48 VDC |
|
|
| |
NiCad, number of cells supported |
10-11 / 20-22 |
20-22 |
10-11 / 20-22 |
20-22 |
- |
| |
Pb, number of cells supported |
6/ 12/ 24 |
12/ 24 |
6/ 12/ 24 |
12/ 24 |
24 |
| |
Power (maximum) @ nominal input |
1000 W |
| |
Current (maximum) @ nominal input |
40 A |
| |
Unprotected bulk output |
• |
• |
- |
- |
- |
| |
Protected battery outputs |
- |
- |
1 x 2 pole (16 - 50 A) |
1 x 2 pole (16 - 50 A) |
2 x 1 pole (16 - 30A) |
| |
Protected load outputs |
- |
- |
2 x 2 pole (1 - 32 A) |
2 x 2 pole (1 - 32 A) |
4 x 1 pole (2 - 30A) |
| |
Integrated battery shunt and LVBD |
- |
- |
- |
- |
50A |
| |
Connection |
Terminal, max 16mm 2 |
Terminal, max
16mm 2
|
Terminal, max 16mm 2 |
Terminal, max 16mm 2 |
Terminal, max 4mm 2 |
| |
Output Protection in rectifiers |
Fuse |
| |
CONTROL AND MONITORING |
|
|
|
|
|
|
| |
Monitoring Unit |
Compack |
Smartpack 2 |
Compack |
Smartpack 2 |
Compack |
|
|
| |
Local Operation |
WEB Interface |
Display and keys |
WEB Interface |
Display and keys |
WEB Interface |
| |
Remote Operation |
WebPower (WEB Interface, SNMP protocol and email) |
| |
Number of Alarm Relays (NO, COM, NC) |
3 |
6 |
3 |
6 |
3 |
| |
Number of configurable inputs |
3 |
6 |
3 |
6 |
3 |
| |
Current measurements |
Rectifier current and if battery shunt is used; battery current and load current |
|
| |
Alarms |
Low & high output voltage alarms (Minor and major levels), Earth fault alarm, Temperature alarm, Mains outage alarm, Battery remaining capacity/ low quality alarms, Battery/ load breaker t ripped alarm and much more |
| |
OTHER SPECIFICATIONS |
|
|
|
|
|
|
| |
Isolation |
3.0 kVAC - input to output
1.5 kVAC - input to earth
0.5 kVDC - output to eart h
|
|
|
| |
Operating temperature |
-40 to +45°C (-40 to +113°F), humidity 5 - 95% RH non-condensing
Output power de-rates at high temperature, see datasheet for applicable rectifier
|
| |
Protection Class |
IP21, (IP22, with additional cover PN: 298484) |
| |
Storage temperature |
-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| |
Dimensions[WxHxD] / Weight |
452 x 450 x 200mm (17.8 x 17.7 x 7.9”) / 7 kg (excluding rectifiers) |
| |
DESIGN STANDARDS |
|
|
|
|
|
|
| |
Electrical safet y |
IEC/ EN 60950-1 |
|
|
| |
EMC |
ETSI EN 300 386 V.1.3.2
EN 61000-6-1 / -2 / -3 / -4 / -5*
|
| |
Environment |
ETSI EN 300 019, ETSI EN 300 132 - 2 |
|
* Only valid for Wallbox with 12 and 24 V rectifiers
|
