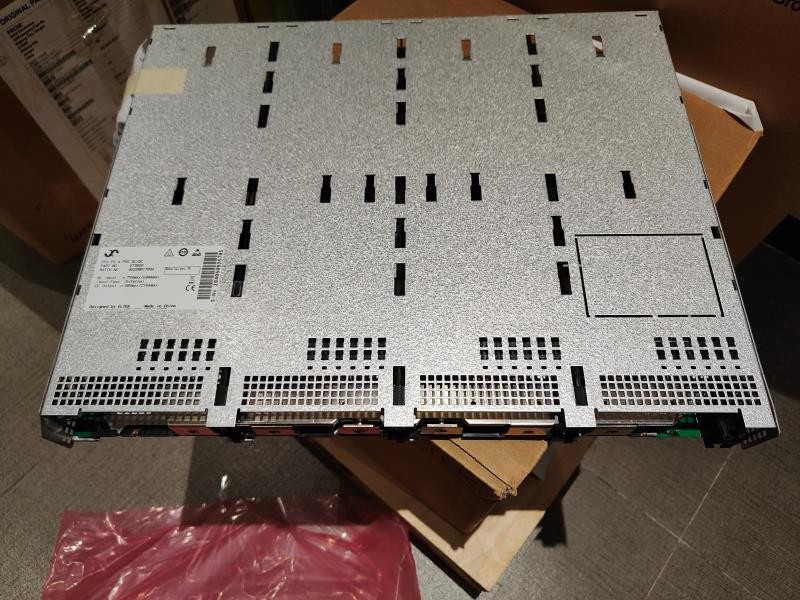

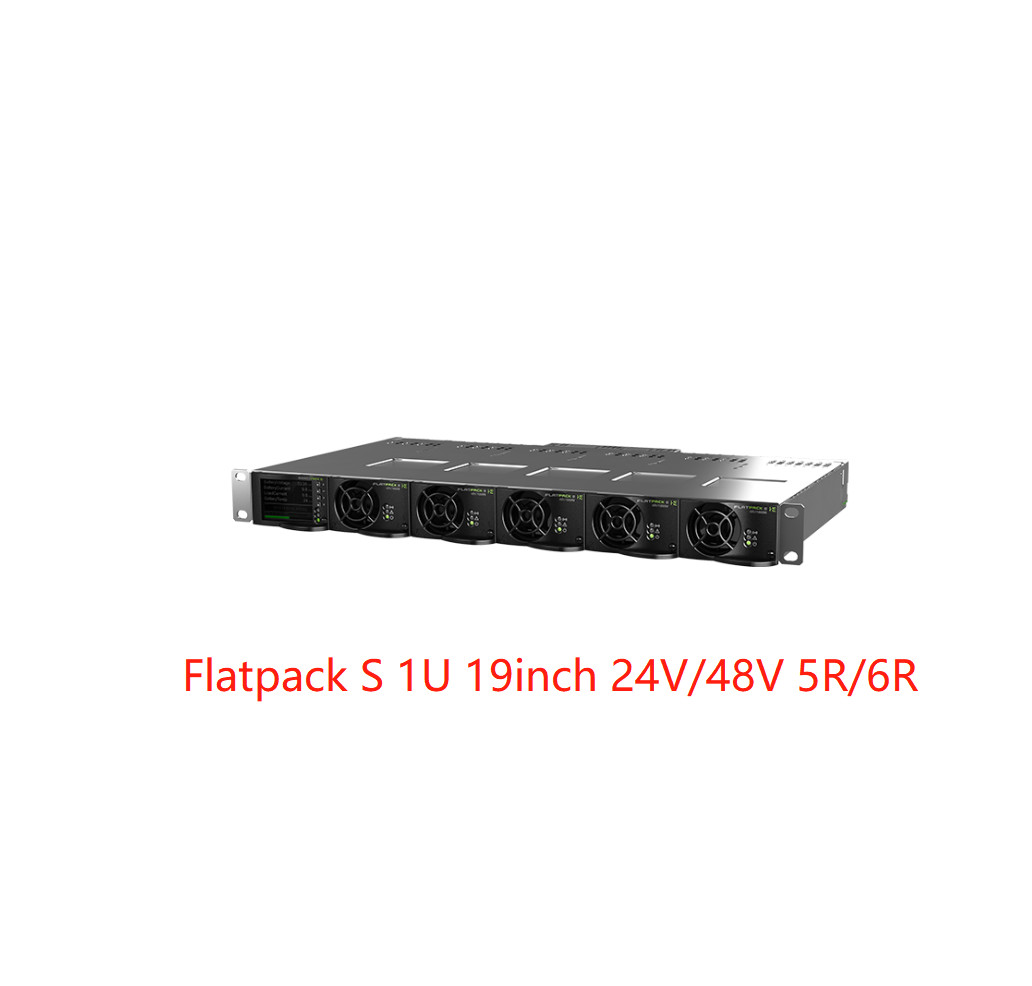

Eltek Flatpack S Power Shelves Power 1U 19inch 48V/24V with 5R/6R rectifiers (241122.900 /241122.901)
Flatpack S power shelves
The shelf can be used with all Flatpack S rectifiers and meets the markets demand for flexible and expandable power solutions.
The combination of power density, efficiency, and reliability makes the Flatpack S family a perfect choice for telecom and industrial applications.
Key features
l Compact HE power shelves
l Hot pluggable rectifiers
l FPS 24/1000 HE
l FPS 24/1000 HE SIL3
l FPS 48/1000 HE
l FPS 48/1800 HE
l 270 mm depth
l 1U height
Parameters :
| |
|
|
| Model Flatpack S 1U/ C+5R Flatpack S 1U/ 6R |
| Part number 241122.900 241122.901 |
| INPUT DATA |
|
| Voltage (nominal) |
185 - 305V AC/ DC |
|
| Maximum current (per feed) 21Arms |
| Mains configuration 3 x single phase |
| Mains connection 6 x faston |
| Frequency 45 – 66Hz |
| OUTPUT DATA |
|
| Maximum voltage |
60VDC |
|
| Maximum current 187,5Adc 225Adc |
| Connection M6 insert nuts |
| CONTROLLER |
| Smartpack S1) External 2) |
| MECHANICAL DATA |
|
| Dimensions (W/ H/ D) |
19” / 1U / 270mm
(recommended minimum cabinet depth, 300mm)
|
|
| Weight (without rectifiers / controller) 2,8 Kg [6.17 lbs] |
| OTHER SPECIFICATIONS |
| Operating temperature 3) -40 to +85°C (-40 to +185°F) |
| Coding Coding to prevent insertion of incorrect power modules |
| Mounting Flush mount or mid mount |
| DESIGN STANDARDS |
| Electrical safety UL 60950-1 2ed, EN 60950-1 2ed |
|
EMC ETSI EN 300 386 V.1.6.1
EN 61000-6-1 (immunity, light industry) EN 61000-6-2 (immunity, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-4 (emission, industry)
|
|
Environment ETSI EN 300 019-2-1 Class 1.2
ETSI EN 300 019-2-2 Class 2.3
ETSI EN 300 019-2-3 Class 3.2
|
