Eltek 380V to 54V DC-DC converter systems Flatpack2 DCDC 380/48 3000 SHE 36KW 72KW (CDT31242.xxx CDT32442.xxx)
Eltek 380 V to 54 V DC-DC converter systems Flatpack2 DCDC 380/48 3000 SHE 36KW 72KW (CDT31242.xxx CDT32442.xxx)

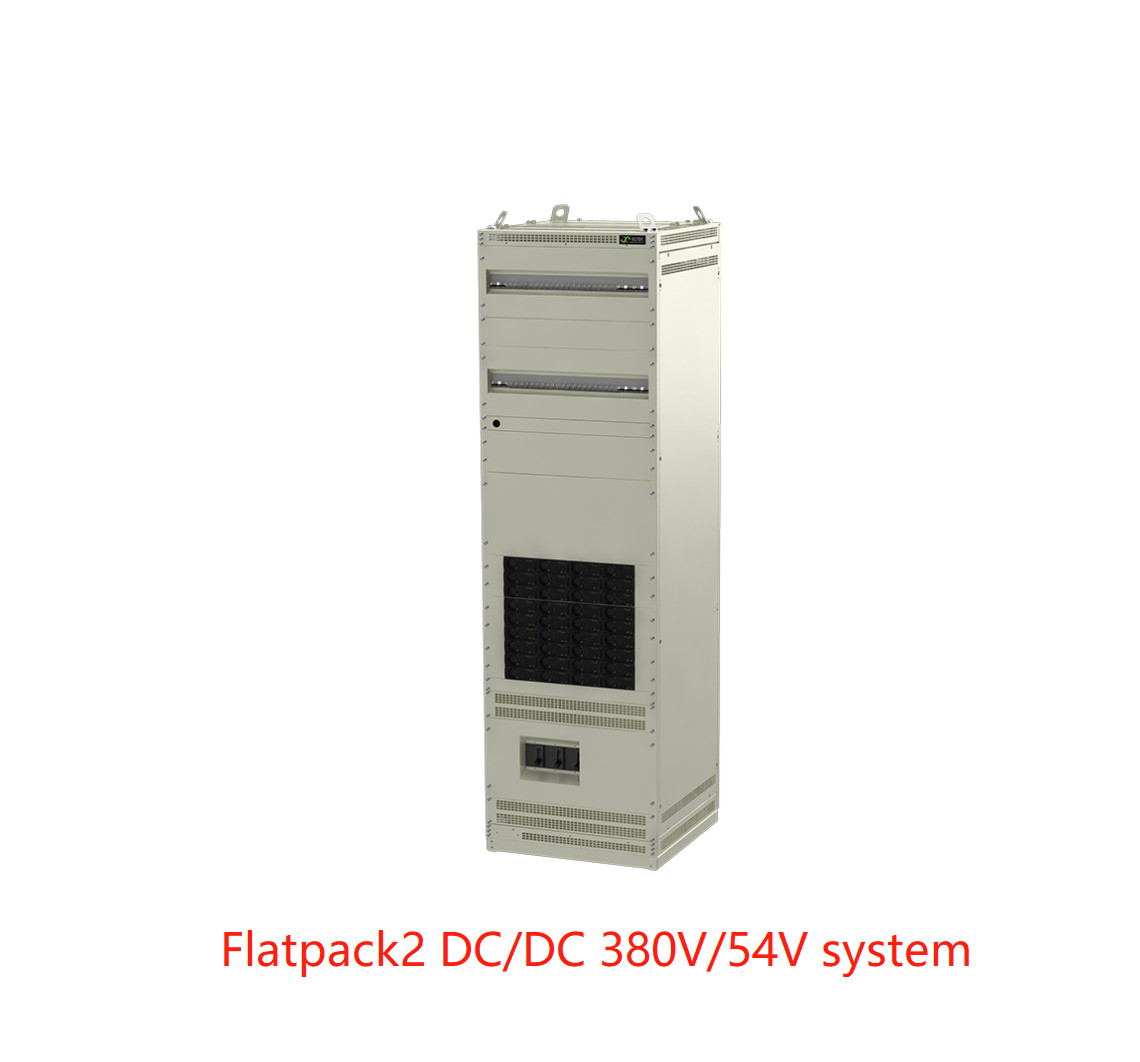

Flatpack2 DC/DC 380V/54V system
Using the Flatpack2 DC/DC 380V/48V 3000W SHE module with Eltek’s feature-rich Smartpack2 control and monitoring unit enables sites to benefit from utilizing 380 Vdc as a transmission voltage.
Either for a competitive alternative to traditional UPS in Data Centers, or for central power plants in Telecom site expansions.
Integrating state-of-the-art, super high efficiency converter modules with Eltek’s feature rich Smartpack2 monitoring and control unit, the high performance Flatpack2 DC/DC 380V/54V Power System converts the 380 Vdc bus voltage down to a regulated 54 Vdc with a module efficiency of 98.2 %.
Key features
l Input protection
l Versatility
l Scalability
l Modular – build as your load grows
l Super High Efficiency (SHE)
l Smartpack2 controller
l Hot pluggable
l 50-55 Vdc adjustable output
l Patented SHE technology
APPLICATIONS
TELECOM
• Telecom central office expansions
• High power site upgrades
DATA CENTERS
• Conversion from 380 VDC (260-400 VDC) to 50-55 VDC
• Colocation facilities
• UPS+VDC plant replacement
Parameters :
|
| Model |
36 kW System |
72 kW System |
108 kW System |
| Part number |
CDT31242.xxx |
CDT32442.xxx |
CDT33642.xxx |
| INPUT DATA |
| Voltage (operating range) |
260 - 400 VDC |
| Maximum current |
147.6 A |
295.2 A (2x 147.6 A) |
442.8 A (3x 147.6 A) |
| Protection (module level) |
Fuse, shutdown when VIN is out of range |
| Protection (cabinet level) |
1x 160 A MCCB |
2x 160 A MCCB |
3x 160 A MCCB |
| OUTPUT DATA |
| Voltage (default) |
54.5 VDC |
| Voltage (adjustable range) |
50 - 55 VDC |
| Max power, nominal input |
36 kW |
72 kW |
108 kW |
| Max current, @VOUT = 50 VDC |
720 A |
1440 A |
2160 A |
| Current sharing |
±5 % of maximum current from 10 to 100 % load |
| Static voltage regulation |
±0.5 % from 0 – 100 % load and nominal input |
| Dynamic voltage regulation |
±5.0 % for 10-90 % or 90-10 % load variation, regulation time < 50 ms |
| DC Outputs |
Up to 2x 30 ways ≤63 A MCB Up to 2x 20 ways ≤125 A MCB |
| Protection |
Overvoltage shutdown; short circuit proof; high temperature; hot plug-in inrush current limiting; OR-ing FET |
| Additional info |
See Flatpack2 DCDC 380V 48V 3000W SHE datasheet |
| CONTROL AND MONITORING |
| Monitoring unit |
Smartpack2 |
| Local Operation |
Display and keys, WEB interface via standard browser |
| Remote Operation |
WEB interface; MODBUS; SNMP protocol and email |
|
Alarms
|
Low & high output voltage alarms (Minor and major levels), Earth fault alarm, Temperature alarm, Mains outage alarm, Load breaker tripped alarm and much more. |
| Additional info |
See Smartpack2 datasheet |
| OTHER SPECIFICATIONS |
| Peak Efficiency |
98.2 % |
|
Isolation
|
4.2 kVDC – input and output
2.2 kVDC – input earth
0.5 kVDC – output earth
|
| Operating temperature |
-20 to +45 °C (-4 to +113 °F) possible power derating above 40 °C (104 °F) |
| Storage temperature |
-40 to +85 °C (-40 to +185 °F) |
| Humidity |
5 – 95 % RH, non-condensing |
| Dimensions [WxHxD] |
600 x 2000 x 600 mm (23.62 x 78.74 x 23.62”) |
| DESIGN STANDARDS |
| Electrical safety |
IEC/EN 60950-1: 2013 |
|
EMC
|
IEC/EN 61000-6-1:2007,
IEC/EN 61000-6-2:2005,
IEC/EN 61000-6-3:2007 + A1:2011, IEC/EN 61000-6-4:2007 + A1:2011, ETSI EN 300 386 v2.1.1: 2016
|
|
Environment
|
Tested in accordance with:
ETSI EN 300 019-2-1 v2.2.1: 2014 (Class 1.2);
ETSI EN 300 019-2-2 v2.3.1: 2013 (Class 2.3);
ETSI EN 300 132-3-1 v2.1.1; 2011/65/EU (RoHS) & 2008/98/EC (WEEE)
Normal operating conditions as per IEC/EN 62040-5-3:2016 clause 4.2, other operating conditions as per clause 4.3 must be advised.
|
| 1) Cabinet views shown without doors. |
