Eltek Flatpack2 24V 48KW DC power system with Smartpack2 and Flatpack2 24/1800HE
Eltek Flatpack2 24V 48KW DC power system with Smartpack2 and Flatpack2 24/1800HE

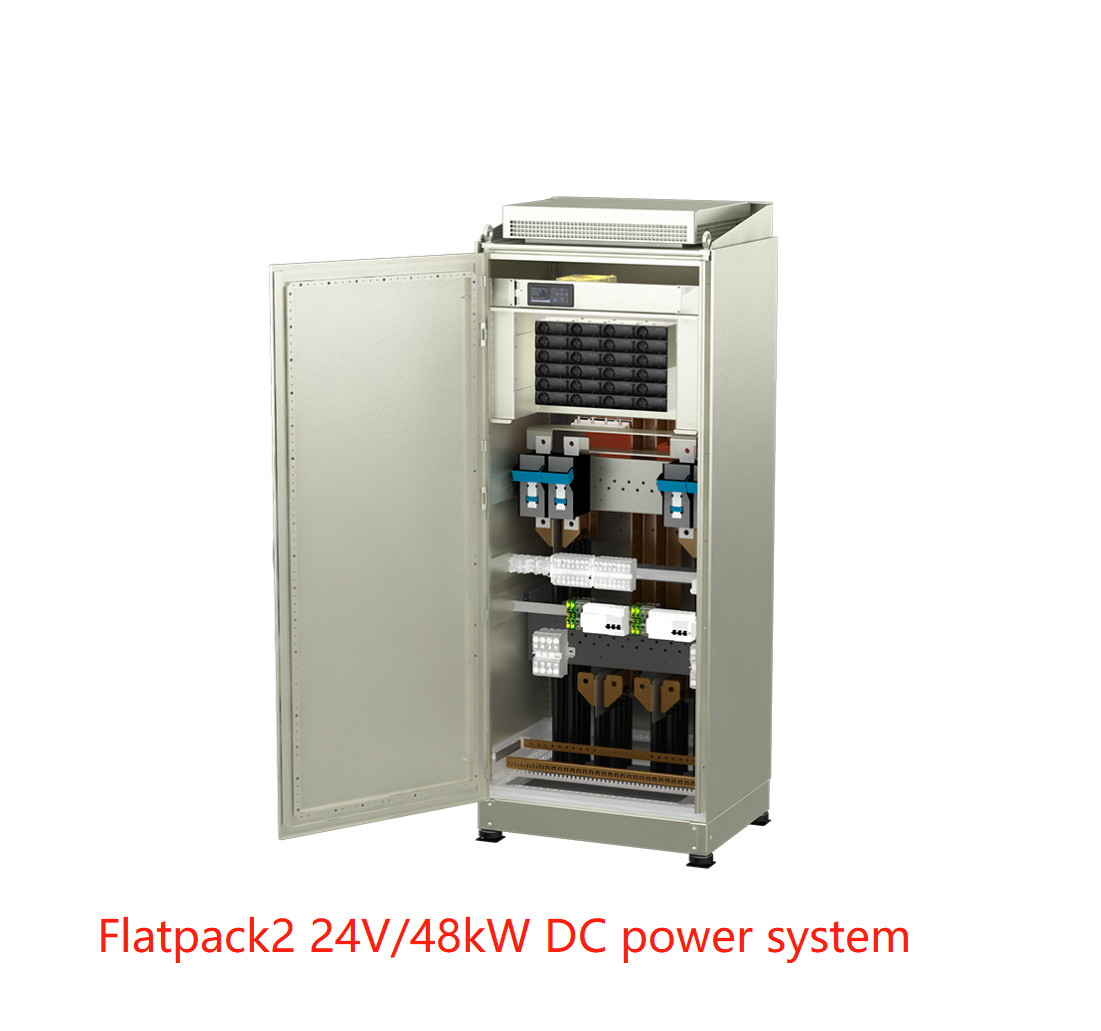

Flatpack2 24V/48kW DC power system

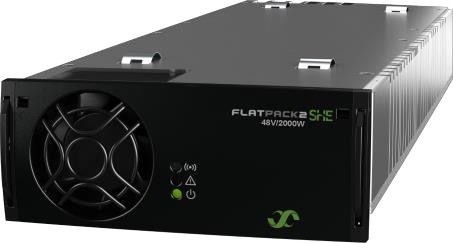

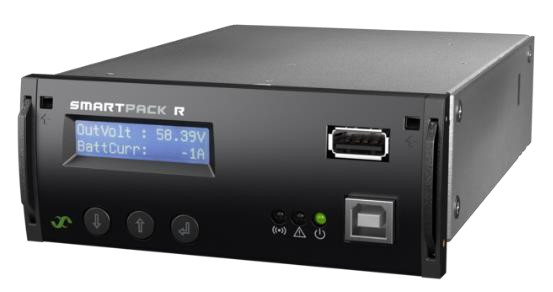

The Flatpack2 24V 48kW has been specifically designed to meet the demand for higher density and more compact power solutions for marine applications worldwide. It is suitable for applications needing an expandable, easily serviceable and reliable power supply, fitting within aminimal space. The modular concept of the Flatpack2 systems makes it easy to scale the Flatpack2 24V/48kW to fit specific power needs from 4 to 48kW. A system with unused rectifier positions can be expanded later simply by adding more rectifiers. The power system is monitored by Smartpack 2 controller which has all the functionality required for present and future applications. It contains 6U of PRs (power rack) which can house 24 Flatpack2 rectifier modules.
Key features
l DNV / ABS approved (pending)
l Scalable
l Hot swappable modular rectifier units
l High efficiency
l Digital controllers
l Heat management
l Unique connection
l Ingress protection up to IP43
Parameters :
| Input |
| Current (maximum) |
2000 ADC |
| Voltage AC (operating range) |
85 - 300 VAC |
| Voltage DC (operating range) |
85 - 300 VDC |
| Max input AC Voltage |
300 VAC |
| Max input DC Voltage |
300 VDC |
| Mains configuration |
230/400VAC 3 phase (Y);230VAC 3 phase (Δ) |
| DC output |
|
| Voltage (adjustable range) |
21,7 - 28,8 VDC |
| Current (maximum) |
2000 ADC |
| Max voltage |
28,8 VDC |
| Max power |
48 kW |
| Battery distribution |
|
| Breaker positions up to |
1 |
| Breaker rating up to |
1200A |
| DC load distribution |
|
| Breaker positions up to |
2 |
| Breaker rating up to |
1200A |
| LVLD |
No |
