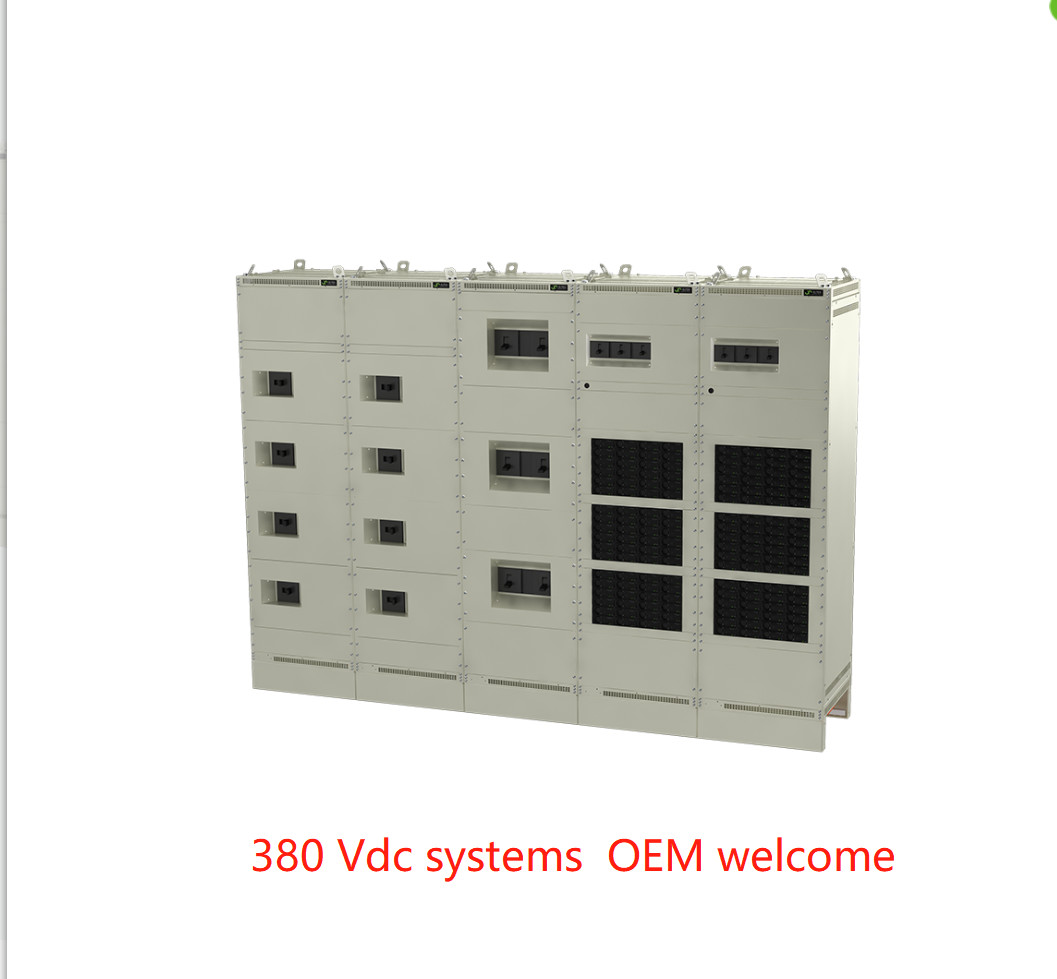

Eltek 380Vdc Power Solutions for telecom sites Flexible Power Systems up to 864KW with FP2 converters and Smartpack2 controller
380 Vdc Power Solutions
Eltek’s 380 Vdc systems provide operators with the ability to solve the combined challenges of ever greater power density, varying load types, and increased site flexibility without compromising on performance, cost, or service ability.
Enable optimization and capacity expansion

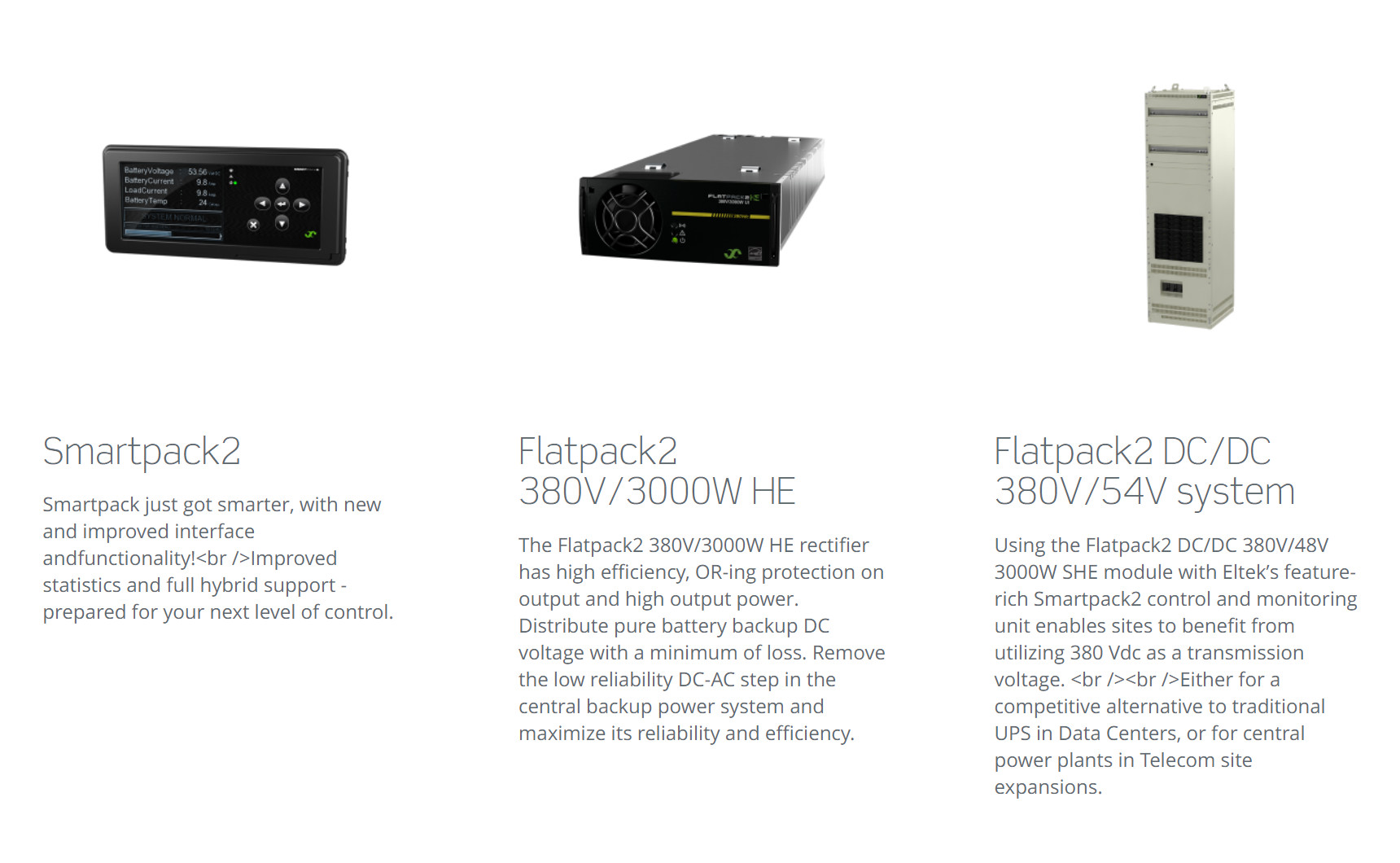

Construct the ideal power system to suit the site needs perfectly, using building blocks based on the Flatpack2 High Efficiency (HE) power converter module, and Smartpack2 control and monitoring system.
Using 380 Vdc reduces the normal operating current by a factor of 7 compared to 48 Vdc – so reducing copper use per kW of load – and greatly increases the flexibility of site designs, with batteries no longer required to be close to the power converters, and the load able to be located 100s of meters away from the power system.
The power platform also includes the ability to simply integrate a variety of renewable energy sources to complement traditional utility supplies.
380 VDC Power Solutions
|
|
| DC OUTPUT POWER CONVERSION |
|
|
| Output |
380 VDC |
| Single cabinet capacity |
216 kW |
| Expandability |
Up to 864 kW |
| Modules |
Flatpack2 380V 3000W HE |
| Monitoring |
Full system parameter monitoring & control with Smartpack2 |
| Cabinet dimensions [WxDxH] |
600 x 600 x 2000 mm |
|
| DISTRIBUTION CABINETS |
|
|
| Output |
Up to 24x 125 A 4p MCBs; Up to 6x 630 A 4p MCCBs; Up to 2x 2500 A 4p MCCBs |
| Expandability |
Up to 6x distribution cabinets total |
| Monitoring |
Breaker trip;
Load monitoring per output (option)
|
| Cabinet dimensions [WxDxH] 600 x 600 x 2000 mm |
