Eltek Rectiverter-Indoor system Scalable 120 kW system with optional A+B, AC input (CDEJ6042.xxxx)
The scalable Rectiverter indoor system provides backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 48 VDC power for DC loads and battery charging.

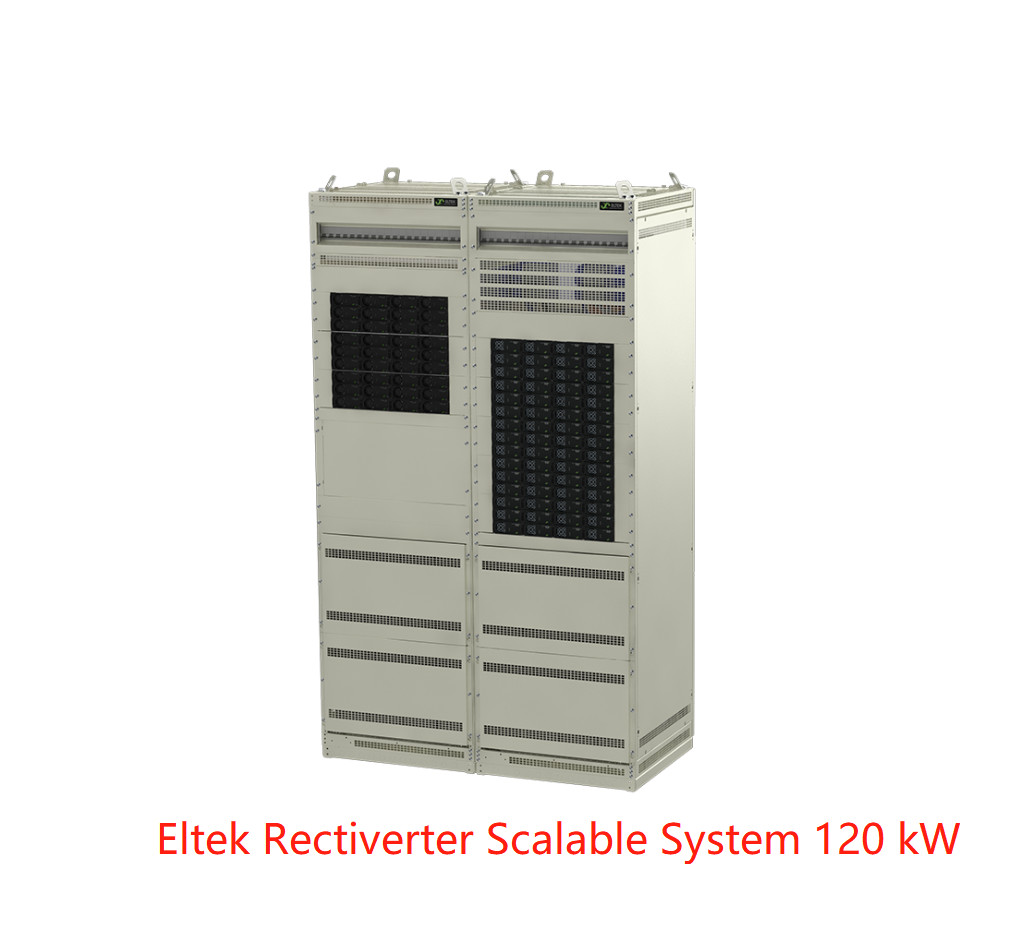

Rectiverter Scalable System 120 kW
The system has a maximum load capacity of 108 kW, which is dynamically variable to provide AC outputs up to 90 kVA / 72kW and also feed DC loads up to 72 kW with built in AC & DC distribution.
When used in combination with the optional B-input (dual AC input) which eliminates the need for a traditional ATS (Automatic Transfer Switch), the Rectiverter indoor system represents the ultimate in flexibility and scalability.
Key features
400 VAC 3 phase (Y) input
400 VAC 3 phase (Y) output
48 VDC input/output
Max 90 kVA / 72 kW AC output
Max 72 kW DC output
AC Distribution
DC distribution option
A+B option (dual AC input)
LVBD option
Up to 4 battery strings
Built in transfer technology
150% overload capability, 15S
600% quick trip current 20 ms
Hot pluggable
Smartpack2 controller

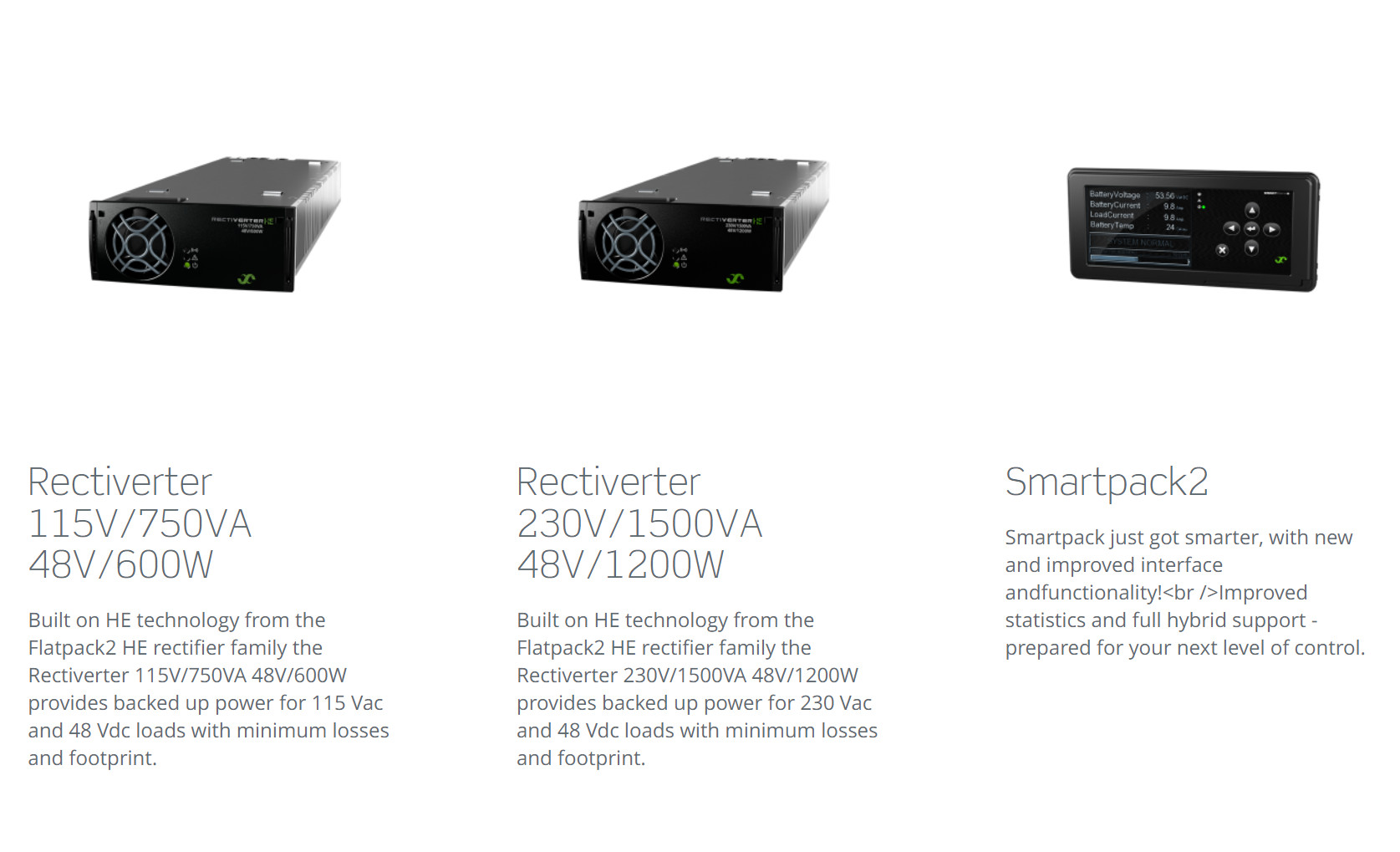

Operates in paralell with Flatpack2 rectifiers
Global compliance
Patented HE technology
SINGLE LINE DIAGRAM 120 KW + 108 KW B-INPUT
Parameters :
|
| Models / ordering information |
|
120 kW + 108 kW B-input |
| Product family |
|
CDEJ6042.xxxx |
| AC OUTPUT DATA |
| Voltage (default) / (adjustable range)1) |
|
400 VAC 3 phase (Y) / 346-415 VAC |
| Frequency (default inverter mode) |
|
50 Hz (adaptive) |
| Frequency (set-able inverter mode) |
|
50Hz, 60Hz or last synced 50/60Hz (adaptive) |
| Power maximum (continuous / overload (<15s) ) |
|
72 kW (90 kVA) / 120kVA |
| Current maximum/phase (continuous / overload (<15s) ) |
|
130 ARMS / 174 ARMS |
| Current (maximum) Quick trip/phase (20ms) |
|
640 A (6 x nominal) |
| Hold up (Voltage dips) (before switching to battery) |
|
> 5 ms @ 72 kW load |
| THD |
|
< 1.5 % at resistive load |
|
Output features
|
Module: Fuse in L and N , Hot pluggable
1 pole or 3 pole AC distribution (connection directly on MCB)
Max breaker capacity according to recommended max breaker for rectiverter module
|
| DC OUTPUT DATA |
| Voltage (default) / (adjustable range) |
|
53.5 VDC / 43 - 58 VDC |
| Power (maximum @nominal input) |
|
72 kW 2) |
| Current (maximum @VOUT ≤ 48 VDC) |
|
1500 A 2) |
| Hold up time, maximum output power |
|
>10ms; VOUT > 41 VDC |
| Output features |
|
Short circuit proof, Over voltage Shutdown |
| INPUT DATA |
| AC Mains Input Voltage(3 phase Y) |
|
320-475 VAC, |
| AC Current/phase(at nominal output voltage) (depending on module type) |
140-240 ARMS 4) |
| Frequency (default: sync range) |
|
47-53 & 57-63 Hz |
| Frequency (set-able: sync range) |
|
47-53 Hz, 57-63 Hz or both (adaptive) |
| Power Factor / THD |
|
> 0.99 at 50% load or more / < 3.5% |
| DC Voltage nominal / extended range (no overload)3) |
|
45 - 58 VDC / 40 - 45 VDC |
| DC Current (maximum) |
|
1920 A / 2700 A during overload (15s) |
| Input features |
|
Module : Fuse in L and N, Hot pluggable, Varistor, Hot pluggable
AC input individual screw terminals 150 mm2 for L1-L3, N & PE
|
| BATTERY BREAKER |
| 1-pole battery breaker |
2*TPS 2 holder (800-1600 A) |
4*TPS 00 holder (250-600 A) |
| OPTIONS |
| B-input maximum power (with FP2 HE, 2 kW rectifiers) |
|
72 kW |
| B-input maximum power (with FP2 HE, 3 kW rectifiers) |
|
108 kW |
| DC distribution (connection directly on breaker) |
|
1-125 A, 1 pole breaker (max 30 pc 18 mm, max 20 pc 27 mm) |
| LVBD (1-pole) |
|
1800 A |
| OTHER SPECIFICATION |
| Efficiency |
>96% (mains mode (AC/AC and AC/DC)), >94% (inverter mode (DC/AC)) |
| Protection Class |
IP 20 |
|
|
| Operating temperature |
-40 to +55°C (-40 to +131°F), humidity 5 - 95% RH non-condensing |
| Storage temperature |
-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing |
| Dimensions[WxDxH] / Weight |
1200 x 600x 2000mm (23,7 x 23,7 x 78,8”) / 300 kg (1100 lbs) |
| DESIGN STANDARDS |
| Electrical safety |
EN 60950-1, EN 62040-1 UPS safety |
|
| EMC |
ETSI EN 300 386 V.1.6.1, FCC CFR 47 Part 15
EN 61000-6-1 /-2/-3/-4, EN62040-2
|
|
|
Environment
|
ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3)
Normal operating conditions to be as per IEC/EN 62040-3:2011 clause 4.1 RoHS (2011/65/EU) and WEEE (2002/96/EC) compliant
|
|
1) Output voltage ranges configured in factory and have individual keying in top chassis
3) 40 - 45 VDC: reduced performance - no power boost and increased voltage THD on AC output.
|
2) AC load has priority. Maximum available DC output power and current is dependent on instant
AC load and AC input voltage; i.e maximum 48kW/1000 A at full AC power and nominal input for 230VAC.
4) If DC voltage is pulled below 43V the input current may increase above this level
|
* The indoor Rectiverter Cabinet with AC &DC feed in one cabinet
