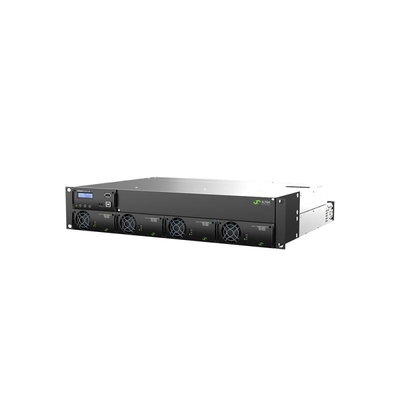

AC DC Rectiverter 2U Power Core 6kVA AC 4.8KW DC Smartpack R controller (Part No.:CTOR0402.1xxx)
The rectiverter 2U power core combines both AC and DC feed into one 2U compact unit. Make it provides AC backup power for 230Vac or 115Vac loads; and 48Vdc power for DC loads and battery charging.
The total output power for both AC and DC is limited to a total 8KW, AC and DC output limits can be set according to the connected load, where the limitation for AC load is set to mas 6kVA and for DC load for max 4KW or 8KW.
Applications :
TELECOM-MOBILE/WIRELESS
· LTE/4G/WiMAX
· Distributed antenna system
· Broadband
· Radio base stations/cell sites
POWER UTILITIES
· Low & High voltage switchgear
· Transformer & SUB stations
· Control & protection
· SCADA system
RAILWAY & METRO INFRASTRUCTURE
· Control & protection
· Signaling
Key Features :
l Compact design and simple installation
l Single phase 230 or 115VAC input and output
l 48Vdc input and output
l Up to 4 rectiverter modules
l 8KW total AC+DC output
l Max 6kVA AC output
l Max 4KW/ 8KW DC output
l 1 or 2 pole AC distribution options
l 1 Pole DC distribution option
l Built in transfer technology
Techinical Data:
|
| Models |
8 kW, 230 VAC |
4 kW, 115 VAC |
| Product family |
CTOR0402.1xxx |
CTOR0402.1xxx |
| AC OUTPUT DATA |
| Voltage (default) / (adjustable range) 1) |
230 VAC / 200-240 VAC |
115 VAC / 100-127 VAC |
| Frequency (inverter mode – default) |
50 Hz (adaptive) |
60 Hz (adaptive) |
| Frequency (inverter mode – settable) |
50 Hz, 60 Hz or last synced 50 / 60 Hz (adaptive) |
| Power maximum (continuous / overload <15s) |
4800 W (6000 VA) / 8000 VA |
2400 W (3000 VA) / 4000 VA |
| Current maximum (continuous / overload <15s) |
26 ARMS / 34,8 ARMS |
| Current (maximum) quick trip (20ms) |
128 A (6 x nominal) |
| Hold up (Voltage dips) (before switching to battery) |
5 ms |
5 ms |
| THD |
< 1,5 % at resistive load |
| Protection |
Fuse in L, Hot pluggable, Varistor |
| DC OUTPUT DATA |
| Voltage (default) / (adjustable range) |
53,5 VDC / 43-58 VDC |
| Power (maximum @nominal input) |
4800 W 2) |
2400 W 2) |
| Current (maximum @VOUT ≤ 108 VDC) |
100 A 2) |
50 A 2) |
| Current sharing (10 - 100% load) |
±5 % of maximum current from 10 to 100 % load |
| Protection |
Short circuit proof, Over voltage shutdown, Reversed polarity and Fuse |
| INPUT DATA |
| AC Mains Input Voltage (range / LV disconnect) |
185-275 VAC / 170 VAC |
95-140 VAC / 85 VAC |
| AC Current (maximum - depends on module type) |
32,8-46 ARMS 3) |
36,8-45,2 ARMS 3) |
| Frequency (default: sync range) |
47-53 & 57-63 Hz |
57-63 & 47-53 Hz |
| Frequency (settable: sync range) |
47-53 Hz, 57-63 Hz or both (adaptive) |
| Power Factor / THD |
> 0,99 at 70% load or more / < 3,5 % |
| DC Voltage nominal / extended range 4) |
45-58 VDC / 40-45 VDC |
| DC Current (maximum) |
128 A / 180 A during overload (15 s) |
64 A / 90 A during overload (15 s) |
| Input features |
Fuse in L and N, Hot pluggable, Varistor
AC input individual screw terminals 4 mm2 for L, N & PE (4x single phase)
|
| OPTIONS |
| Control unit |
Smartpack R |
| Alarm connection |
Extension Alarm Card (6x Digital Inputs & 6x Relays) |
| Battery distribution |
Max. 2x 100 A or 1x 150 A |
| LVBD |
150A (optional) |
| AC distribution |
Max. 3x 16 A (1 pole) or 1x 16 A (2 pole) MCBs |
| DC distribution |
Max. 3x 60 A (1 pole) MCBs |
| OTHER SPECIFICATION |
| Efficiency |
> 96 % (mains mode), > 94 % (inverter mode) |
> 92 % (mains mode), > 91 % (inverter mode) |
| Operating temperature |
-40 to +55 °C (-40 to +131 °F), humidity 5-95 % RH non-condensing |
| Storage temperature |
-40 to +85 °C (-40 to +185 °F), humidity 0-99 % RH non-condensing |
| Dimensions [W x D x H] |
483 x 386 x 97 mm (19 x 15,2 x 3,8 inch) |
|
| Weight |
9,9 kg (21,8 lbs) |
|
| DESIGN STANDARDS |
| Electrical safety |
EN 60950-1, EN 62040-1 UPS safety |
|
|
EMC
|
ETSI EN 300 386 V2.1.1, FCC CFR 47 Part 15
EN 62040-2
EN 61000-6-1/-2/-3/-4
|
|
|
Environment
|
ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)
Normal operating conditions as per IEC 62040-3:2011 clause 4.2. Other operating conditions as per IEC 62040-3:2011 clause 4.3, must be advised
RoHS 3 (2015/863/EU) and WEEE (2008/98/EC) compliant
|
