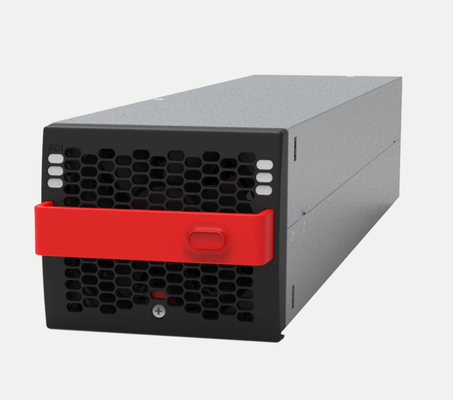

CE+T Bravo 10-48/230 48Vdc 230Vac DC To AC Inverter Module T611730201 1.25KVA/1KW

1 piece
MOQ
1 USD/pc
Price
CE+T Bravo 10-48/230 48Vdc 230Vac DC To AC Inverter Module T611730201 1.25KVA/1KW
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Brand: CE+T
Part Number: Bravo 10 - 48/230
Product Name: Rectiverter Module
Model Name: Modular Inverter
AC Input: 230 V (150 - 265 V)
DC Intput: 48 VDC / (40-60V)*
AC Output Frequency: 50HZ /60HZ
AC Output: 230 V (200 - 240 VAC)
Output Power: 1250 VA / 1000 W
Package: Cartns
Highlight:

48Vdc 230Vac T611730201

,

230Vac dc to ac inverter module T611730201

,

dc ac inverter module T611730201

Basic Infomation
Place of Origin: CN
Brand Name: CE+T
Certification: CE,UL
Model Number: CE+T modular inverters
Payment & Shipping Terms
Packaging Details: cartons
Delivery Time: 6-8 weeks
Payment Terms: L/C,T/T
Supply Ability: 1000 pieces / month
Product Description

CE+T Modular inverter Bravo 10 - 48/230 48Vdc 230Vac ( Part No.T611730201) DC to AC modulr inbertersCE+T Bravo 10-48/230 48Vdc 230Vac DC To AC Inverter Module T611730201 1.25KVA/1KW 0

CE+T Modular inverter Bravo 10 - 48/230 48Vdc 230Vac ( Part No.T611730201) DC to AC modulr inberters


More than an inverter.


Our patented technology provides additional AC input to supply loads directly from the grid.

As a result, you benefit from a secure power supply with an overall conversion efficiency of up to

96%.

Our solutions are designed for modularity, reliability, compactness and cost savings

Reach the highest reliability thanks to:

0 ms transfer time (grid to battery);

• Built-in Static Transfer Switch (no single point of failure);

Truly redundant (power & communication);

• Configuration in parallel (no master/slave)



CE solutions (designed for 230 Vac and 3 x 400 Vac)

Bravo 4 - 48/230 Bravo 6 - 48/230 Bravo 10 - 48/230 Bravo ECI - 48/230 Bravo ECI - 380/230 Bravo ECI - 400/230
DC In (Range) 48 Vdc (40 – 60) 48 Vdc (40 – 60) 48 Vdc (40 – 60) 48 Vdc (40 – 60) 336 Vdc (200 – 400) 372 Vdc (200 – 430)
AC In/Out (Input Range) 230 Vac (150 – 265) 230 Vac (150 – 265) 230 Vac (150 – 265) 230 Vac (150 – 265) 230 Vac (108 – 290) 230 Vac (150 – 290)
Output power 0.5 kVA / 0.4 kW 0.75 kVA / 0.6 kW 1.25 kVA / 1 kW 3 kVA / 2.4 kW 3 kVA / 2.5 kW 3 kVA / 2.5 kW
Up to 2.5 kVA 3.75 kVA 40 kVA 2.7 MVA 450 kVA 450 kVA
Efficiency: AC/AC 92% 94% 96% 96% 96% 96%
Efficiency: DC/AC 90% 92% 92.5% 93.5% 94.5% 94.5%
Operating temperature -20°C to 65°C -20°C to 65°C -20°C to 65°C -20°C to 65°C -20°C to 65°C -20°C to 65°C
Dimension 1U x 87 mm x 346 mm 1U x 87 mm x 346 mm 1U x 87 mm x 346 mm 2U x 103 mm x 435 mm 2U x 103 mm x 435 mm 2U x 103 mm x 435 mm
Part number T641730201 T651730201 T611730201 T521730301 T521D70201 T521D80201
Part number (No AC In) N/A N/A N/A T521730311 N/A N/A



Industrial solutions (designed for 24 Vdc, 60 Vdc, 110Vdc and 220Vdc)

TSI Bravo - 24/230 TSI Bravo - 60/230 TSI Bravo - 110/230 TSI Bravo - 220/230
DC In (Range) 24 Vdc (19 – 35) 60 Vdc (48 – 72) 110 Vdc (90 – 160) 220 Vdc (170 – 300)
AC In/Out (Input Range) 230 Vac (150 – 265) 230 Vac (150 – 265) 230 Vac (150 – 265) 230 Vac (150 – 265)
Output power 1.5 kVA / 1.2 kW 2.5 kVA / 2 kW 2.5 kVA / 2 kW 2.5 kVA / 2 kW
Up to 48 kVA 80 kVA 80 kVA 80 kVA
Efficiency: AC/AC 95.5% 96% 96% 96.5%
Efficiency: DC/AC 89.5% 91% 91% 92.5%
Operating temperature -20°C to 65°C -20°C to 65°C -20°C to 65°C -20°C to 65°C
Dimension 2U x 103 mm x 435 mm 2U x 103 mm x 435 mm 2U x 103 mm x 435 mm 2U x 103 mm x 435 mm
Part number T321720201 T321740201 T321750201 T321760201
