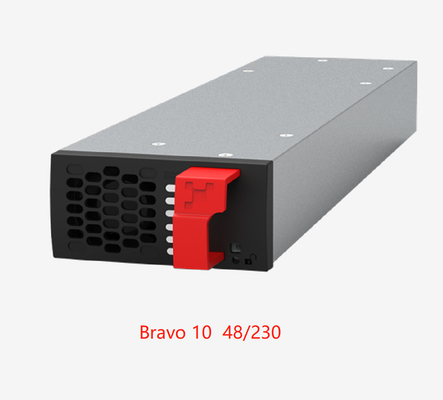

CE+T Modular inverter Bravo 10 - 48/230 48Vdc 230Vac ( Part No.T611730201) DC to AC modulr inberters
CE+T Modular inverter Bravo 10 - 48/230 48Vdc 230Vac ( Part No.T611730201) DC to AC modulr inberters 1.25KVA/1KW
Description:

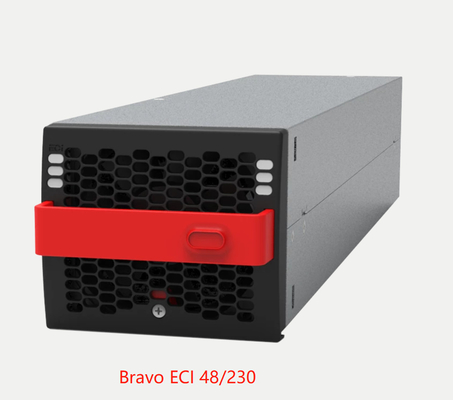

Bravo 10 is a small modular inverter offering many opportunities to design a solution that perfectly fits your needs. The ECI technology offers both AC and DC inputs to provide a perfect AC power while reducing the number of power conversion (the module operates under normal condition with the AC input delivering a 96% efficiency)! In conjunction with the DC input, it provides an excellent AC backup solution
Applications :
An ideal solutions for securing small but critical AC loads, from 1.25KVA to 40KVA, such as telecom small cells (4G and 5G),access control, traffic lights, security etc,
The module can be integrated into shelves for single -phase (230Vac) or three-phase (3*400Vac) installation with different output powers, We have already designed 3 shelves configuations ; 5m odules (56.25kva, single- phase ),4 moudles ( 5kva, single phase ) and 9 modules ( 11.25kva, single phase )
Parameters :
Bravo 10 - 48/230
| General |
| Part Number |
T611730201 |
| Cooling / Audible noise |
Fan forced cooling / < 65 dBA at 1 meter |
| MTBF |
240 000 hrs (MIL-217IF) |
| Dielectric strength DC/AC |
4300 Vdc |
| RoHS |
Compliant |
| Operating T° / Relative Humidity (RH) non-condensing |
Tested according ETS300-019-2-3 Class 3.1
-20°C to 65°C, power de-rating from 40°C to 65°C / Max RH 95% for 96 hours per year
|
| Storage T° / Relative Humidity (RH) non-condensing |
Tested according ETS300-019-2-1 Class 1.2
-40°C to 70°C / Max RH 95% for 96 hours per year
|
| Public transport T°/Relative Humidity (RH) non-condensing |
Tested according ETS300-019-2-2 Class 3.1
-40°C to 70°C / Max RH 95% for 96 hours per year
|
| Material (casing) |
Zinc coated steel |
| Power |
| AC Input Data |
| AC voltage: Nominal / range |
230 V (150 - 265 V) |
| Brownout |
800 W @ 150 Vac / 1000 W @ >190 Vac linear decreasing |
| Power factor / THD |
> 99% / < 3% |
| Frequency range (selectable) / synchronization range |
50 Hz (range 47 – 53 Hz) / 60 Hz (range 57 – 63 Hz) |
| DC Input Data |
| DC voltage: Nominal / range |
48 VDC / (40-60V)* |
| Nominal current (at 48 Vdc and 1000 W output) |
22.3 A |
| Maximum input current (at 48 Vdc for 15 second) / voltage ripple |
34 A / < 10 mV RMS |
| AC Output Data |
| Efficiency (Typical): Enhanced power conversion / on line |
96% / >92.5% |
| Nominal voltage AC** Adjustable) |
230 V (200 - 240 VAC) |
| Frequency / frequency accuracy |
50 or 60 Hz / 0.03% |
| Nominal Output power |
1250 VA / 1000 W |
| Short time overload capacity |
150% (15 seconds) |
| Admissible load power factor |
Full power rating from 0 inductive to 0 capacitive |
| Total harmonic distortion (resistive load) |
< 3% |
| Load impact recovery time (10% - 90%) |
≤ 0.4 ms |
| Nominal current |
5.4 A @ 230 Vac |
| Crest factor at nominal power |
3 : 1 for load P.F. ≤ 0.7 |
| Short circuit clear up capacity 0 - 20 ms |
21.7 A for 20 ms |
| Short circuit current after 20 ms |
9.9 A (20 ms to 15 s) , 7.4 A (15 s to 60 s), > 60 s - manual reset is required |
| AC output voltage stability |
±1% from 10% to 100% load |
| In Transfer Performance |
| Max. voltage interruption / total transient voltage duration (max) |
0 s / 0 s |
| Signaling & Supervision |
| Display |
Synoptic LED |
| Supervision |
Inview ranges / Inview S - T302004100, Inview S Slot - T602004110, Inview GW - T602004000 |
| Remote on / off |
On rear terminal of the shelf |
| Alarms output |
2 dry contacts and 2 digital inputs |
| Safety & EMC |
| Safety |
EN62040-1 |
| EMC |
EN 61000-4-2 / EN 61000-4-3 / EN 61000-4-4 / EN 61000-4-5 / EN 61000-4-6 / EN 61000-4-8 ETSI EN 300386 v1.9.1 |
