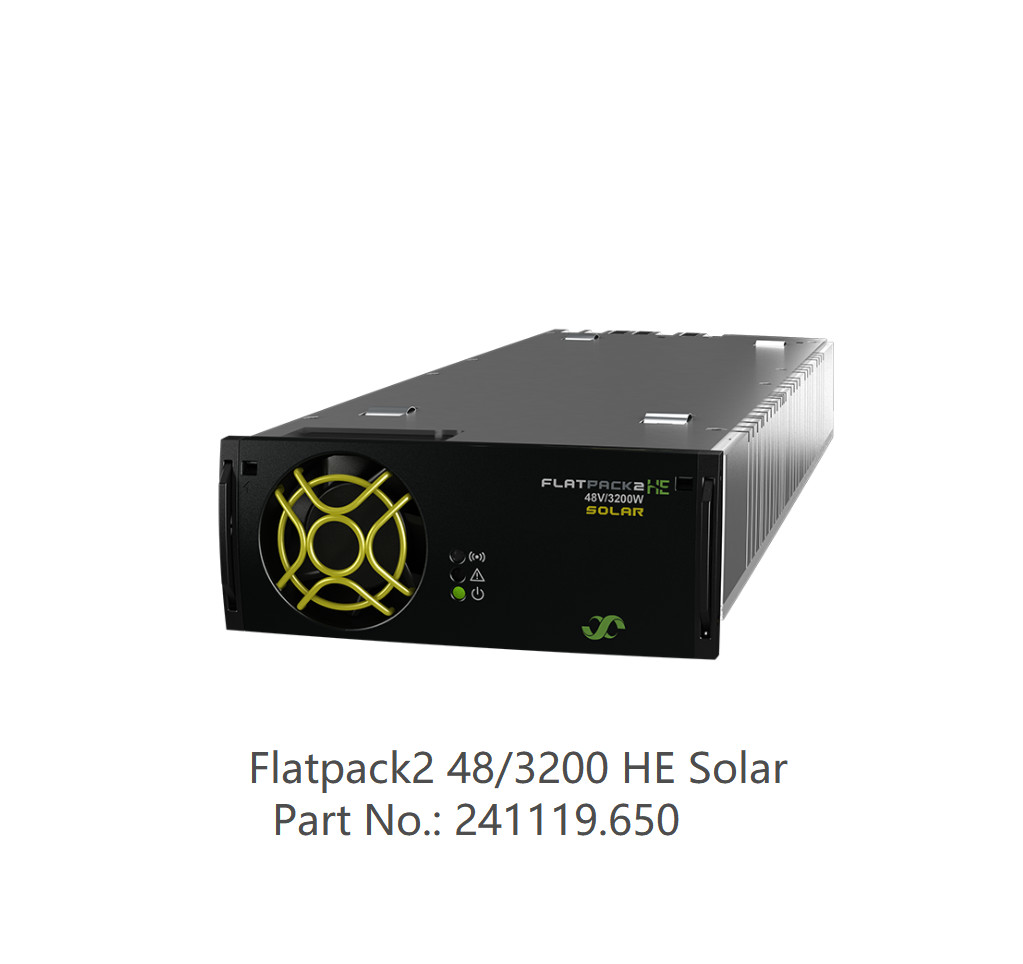

Eltek Solar Charger Flatpack2 48/3200 HE Solar Flatpack2 HE solar 3200W Flatpack2 48V solar charger (241119.650 )

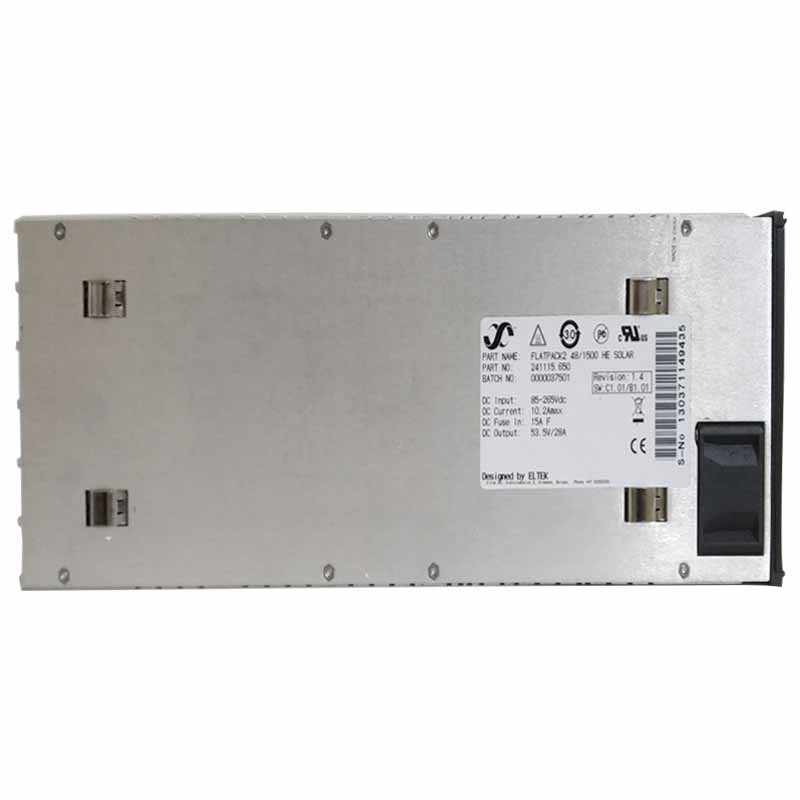

Eltek Solar charger Module Flatpack2 48/1500 HE SOLAR (Part No. 241115.650 ) for Hybrid Power Systems
High efficiency up to 96.5%, the galvanic isolated solar charger sets new standards for renewable power in telecom.
The combination of innovative design, efficiency and reliability makes the Flatpack2 HE SOLAR stand out.
APPLICATIONS
- The Flatpack2 HE SOLAR charger is suitable for any telecom site with autonomous (solar only) or hybrid solar power.
- It can be used in parallel with any other Flatpack2 rectifiers feed by generator or unreliable mains on a hybrid side.
- Fully integrated with the standard Flatpack2 family, can be used in 48V FP2 system solutions with Smartpack controller.
- Typically each charger is fed by one string of 4 to 6 solar panels.
- Galvanic isolation between solar panels and batteries/ telecom equipment
PRODUCT FEATURES
*Maximum Peak Power Tracking (MPPT)
The charger uses a digitalized advan ced control algorithm that finds the solar panel voltage that generates the maximum power independent of sun availability. The charging is continuous according to performance profile for panels. In addition to finding the profiles peak power a full scan is performed at a fixed interval to stay on peak even with panel failures and major shadings. This gives close to 100% panel utilization.
Smartpack2 Controller
All standard control and monitoring features are available with solar charger plus additional feat ures like warnings for shaded/ dirty solar panels and energy monitoring.
Energy Logging
Integrated energy logging feature will monitor the power supplied from solar panels through the charger.
Energy log is stored on a historical basis in controller. The kWh or Wh supplied and consumed on site is stored on hourly, daily and weekly basis. Values can be seen 52 times back in time from the last log.
Generator Control
To minimize fuel consumption on a hybrid site the controller utilizes calculated backup capacity data and optional time delay to give start/ stop signals. Fuel tank level monitoring gives full visibility of consumption, theft and refill interval.
Forced charging can be triggered by daily time schedule, monthly periodical run time and emergency charge based on fast battery voltage drops. Charge mode during generator run is selectable between normal temperature compensated float charge and boost charge.
FLATPACK2 48/1500 HE SOLAR
| Input data |
|
| Voltage |
Nominal 170-230Vdc ;Tolerances : 85-265Vdc |
| Start Up voltage |
150Vdc |
| Max Current |
9.5A max at nominal input and full load ; 10 A max at 85vDC and full load |
| Input protection |
Varistors for translent protection ‘ Fuse in both liens ; revers polarity |
| Output data |
|
| Voltage |
Default 53.5Vdc |
| Max current |
31.3 A at 48Vdc |
| Current sharing |
Passive to optimize the power avaliable from each string of solar panels |
| Static voltage regulation |
±0.5% from 10% to 100% load |
| Dynamic voltage regulation |
±5% from 10% to 90% load or 90-10% load variation , regulation time less than 50ms |
| Ripple and Noise |
＜ 250MV peak to peak ; ＜2Mv ms psophometric etc |
| Output Protection |
Over voltage shutdown ; High temperatue protection ; hot plug in; fuse; short circult proof |
| Other Spec. |
|
| Efficiency |
＞ 96% at 30- 80% load and 200Vdc input |
| Isolation |
3.0kva input and output ; 0.5kdc output earth |
| Alarms |
High tem shutdown Fan failure Low voltage alarm over voltage etc |
| Dimension |
109 x 41.5 x 327mm (W x H x D) (4.25 x 1.69 x 13”) |
| Weight (kg) |
2kg |
