Eltek DC/AC Inverters Rectifiers in One Box - Rectiverter Series
Part Numbers: 241123.100, 241123.101, 241123.102
Product Overview
Eltek DC/AC Inverters Rectifiers in one box Rectiverter 115V/750VA 48V/600W (Part No.: 241123.100)
Built on HE technology from the Flatpack2 HE rectifier family, the Rectiverter 115V/750VA 48V/600W provides backed up power for 115 Vac and 48 Vdc loads with minimum losses and footprint.
Rectifier and Inverter in One Compact Unit
The Rectiverter is a 3-port device capable of charging the 48V battery while simultaneously providing power for AC and DC loads. During mains outage, the Rectiverter feeds AC loads using energy stored in the battery.
Key Features
- Unique 3-in-1 operation
- Inverter functionality
- Rectifier functionality
- Power source transfer
- Modular design
- High efficiency operation
- Global compliance certifications
- Patented technology
- Hot pluggable capability
- Voltage keying system
Technical Specifications
| Parameter |
230/1500 Model |
115/750 Model |
| Part Numbers |
241123.100, 241123.101, 241123.102 |
241123.100L, 241123.101L, 241123.102L |
| AC Output Voltage |
230 VAC (200-240 VAC adjustable) |
115 VAC (100-127 VAC adjustable) |
| AC Output Power |
1200W (1500VA) continuous / 2000VA overload |
600W (750VA) continuous / 1000VA overload |
| DC Output Voltage |
53.5 VDC (43-58 VDC adjustable) |
| DC Output Power |
1200W maximum |
600W maximum |
| Efficiency |
>96% (mains mode), >94% (inverter mode) |
>92% (mains mode), >91% (inverter mode) |
| Operating Temperature |
-40 to +75°C (-40 to +167°F) |
| Dimensions |
109 x 41.5 x 327mm (4.25 x 1.69 x 13") |
| Weight |
1.95 kg (4.3 lbs) |

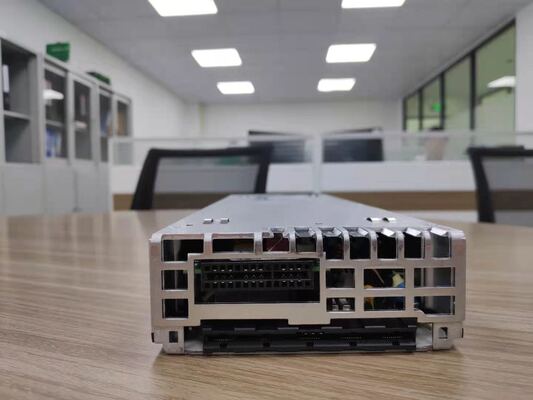

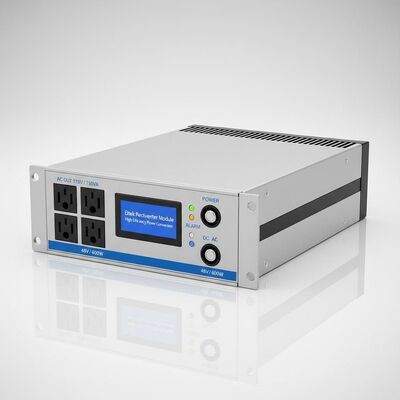

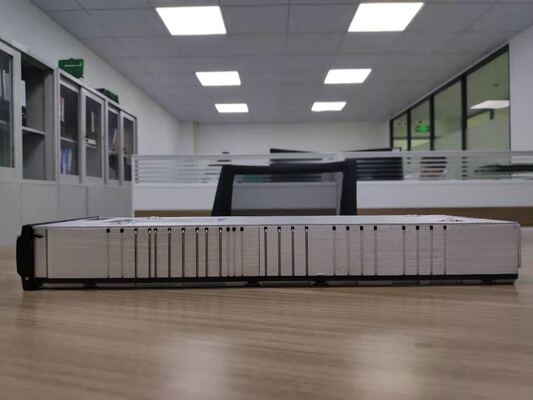

Product Images
Complete Solutions
We provide comprehensive solutions including site survey, professional planning according to customer requirements, technical support, and maintenance services for telecommunication companies worldwide. Our competent team and network of trusted partners ensure reliable service delivery.
Frequently Asked Questions
How do you control the quality?
All products undergo simulated usage scenarios, load testing, full load testing, and current sharing tests before shipment to ensure product quality.
What is your minimum order quantity?
There is no minimum order quantity - single units can be ordered. Pricing and scheduling may vary based on order size.
Can you introduce your company?
We will provide our company introduction document for a comprehensive overview of our capabilities and experience.
What are the advantages of your company?
Adequate inventory, reliable supply chain for ongoing needs, flexible solutions tailored to customer requirements, and comprehensive technical support.
Can I request samples and pricing?
Samples are available at sample pricing, with freight costs borne by the customer.
How do you handle quality issues?
With nearly 10 years in the industry, we maintain our reputation by thoroughly analyzing issues. If confirmed as quality problems, we resolve them according to contract agreements with our dedicated service team.
What about product quality?
100% original products with new packaging. Each item is tested before shipping to ensure optimal quality.
How many months for guarantee?
1-year quality guarantee provided.
How do you handle inferior-quality goods?
We cover return shipping costs for any defective products within the guarantee period.
