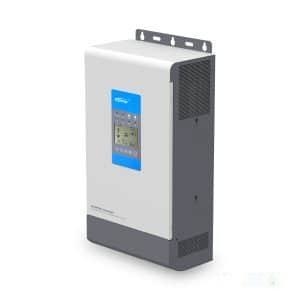

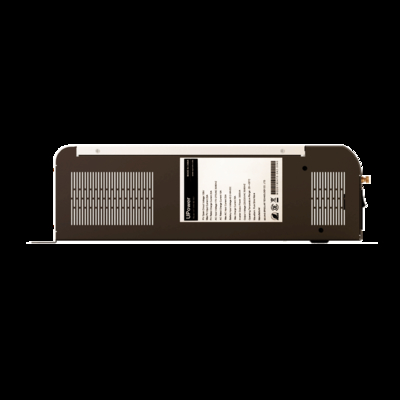

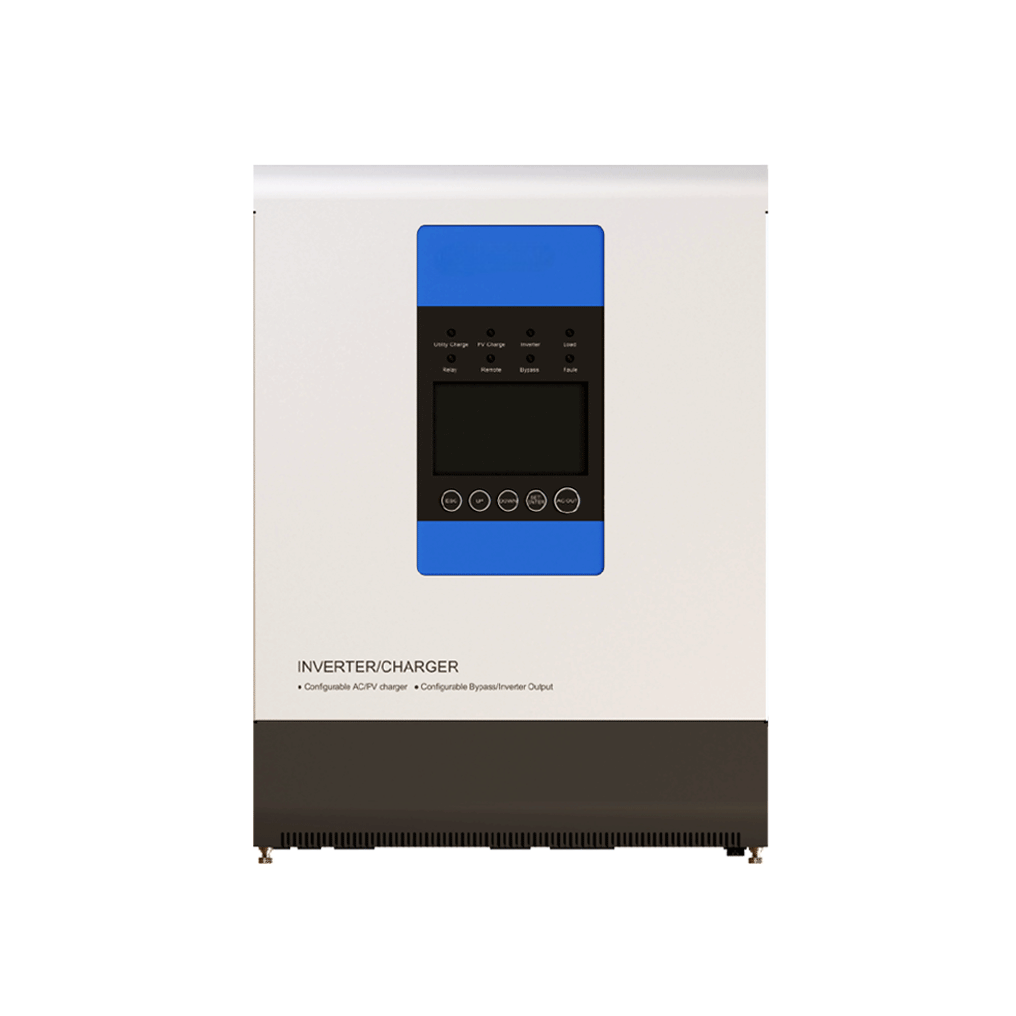

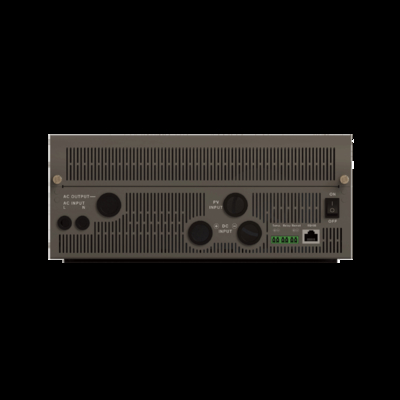

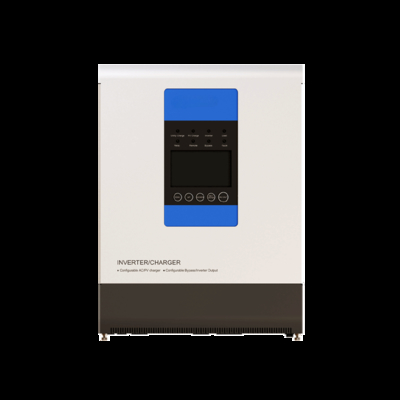

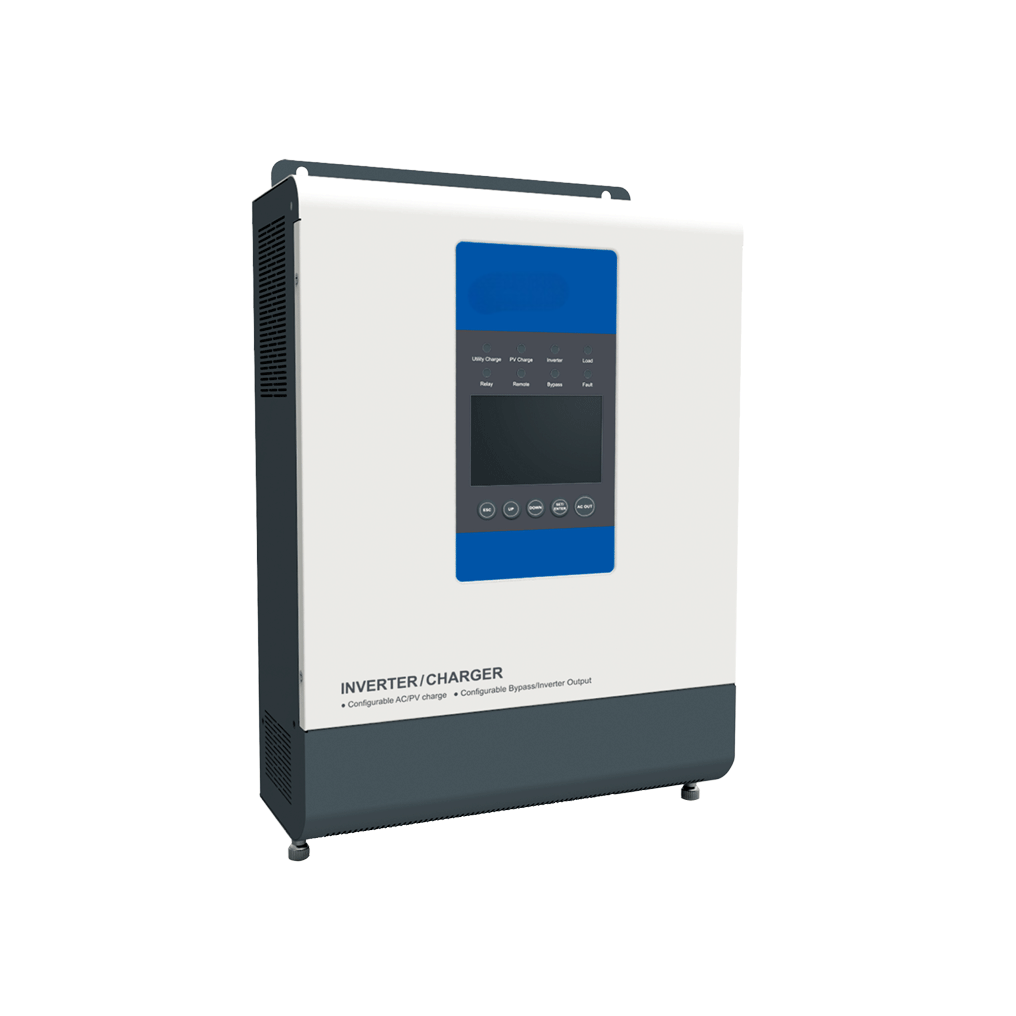

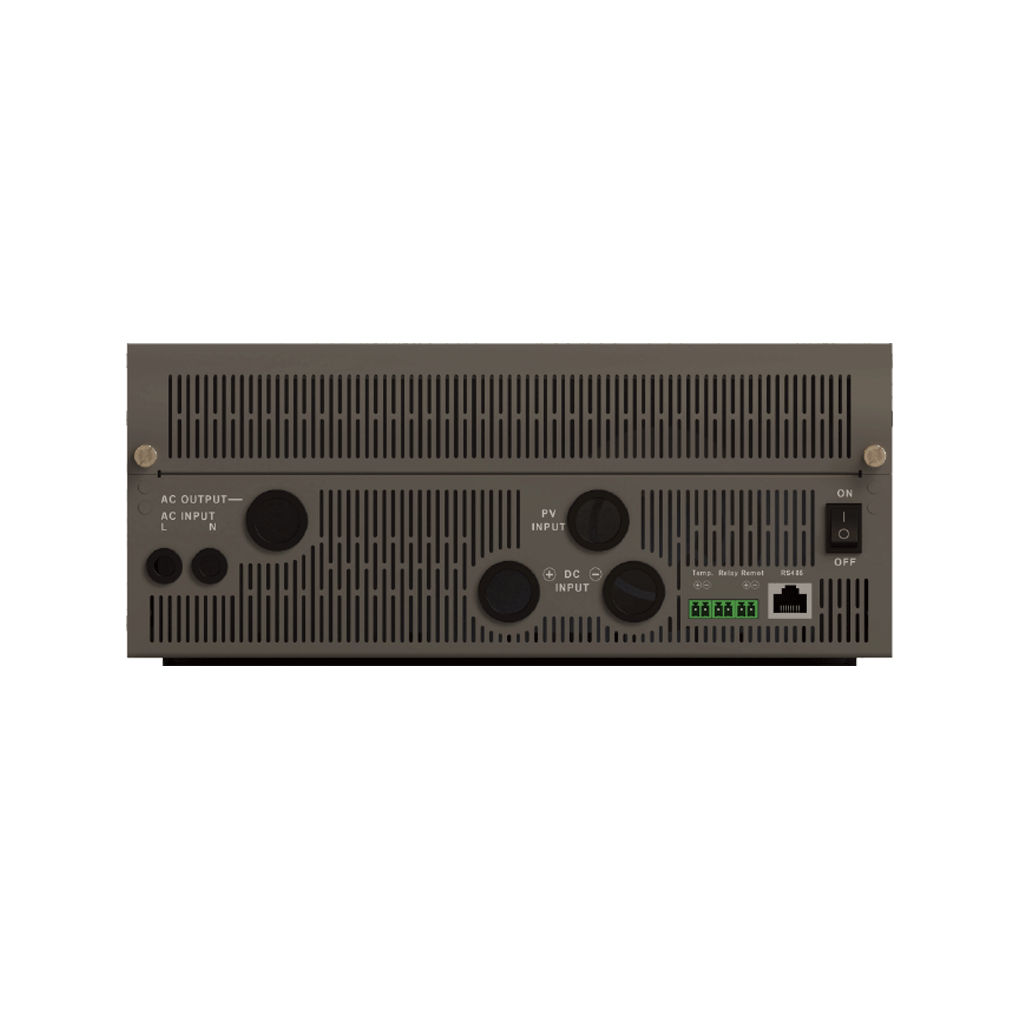

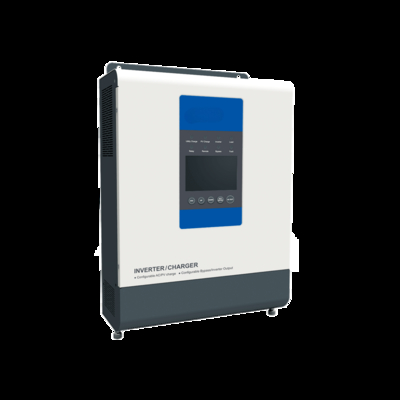

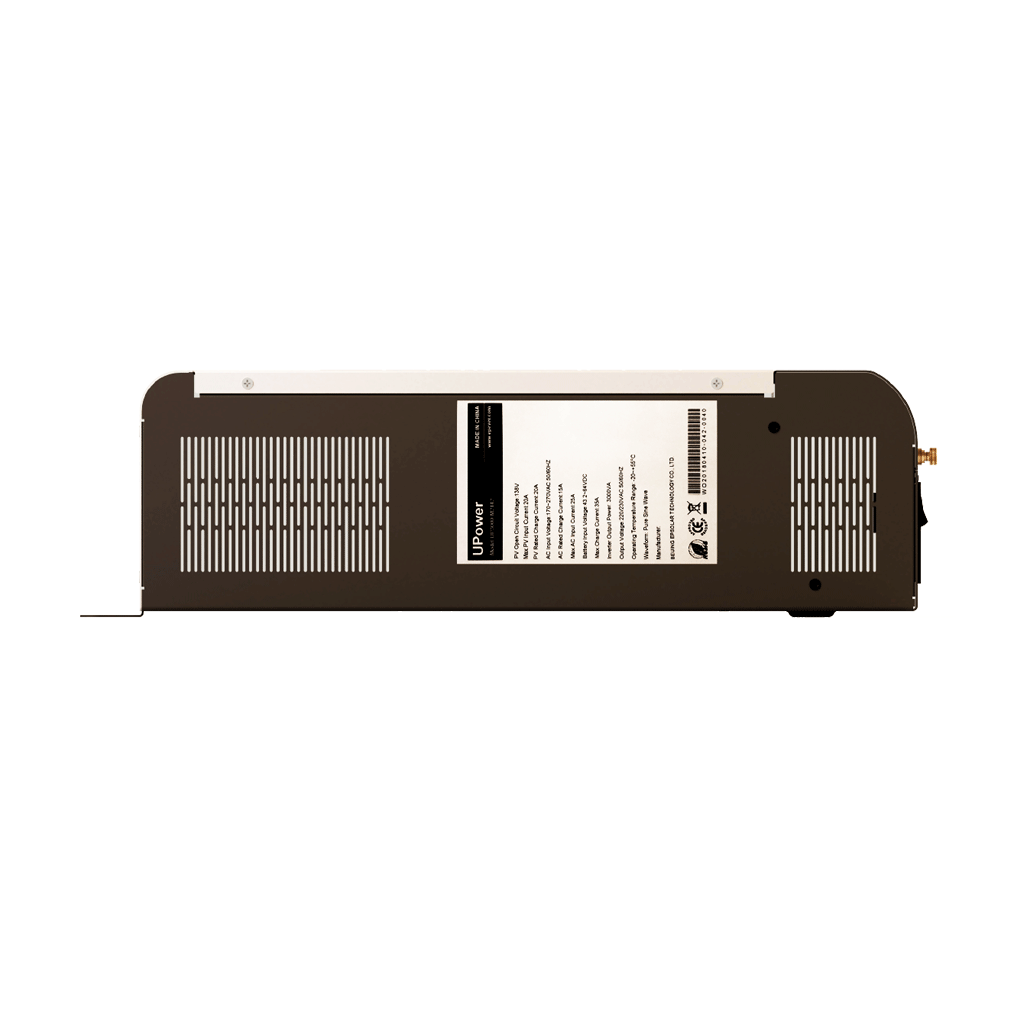

UPower series is an inverter/charger with power from 1KVA to 5KVA, which combines MPPT solar charge controller, pure sine wave inverter, and AC/DC charger in one unit. The inverter and AC/DC charger can work simultaneously, makes UPower perfectly suits residential applications, schools, cottages and the area where the electricity is not stable or the applications that need uninterruptible power.
Specification
|
Model
|
UP1000-M3212
|
UP1000-M3222
|
UP1500-M3222
|
UP2000-M3322
|
UP3000-M3322
|
UP3000-M6322
|
|
Nominal battery voltage
|
12VDC
|
24VDC
|
24VDC
|
24VDC
|
24VDC
|
24VDC
|
|
Battery input voltage range
|
10.8～16VDC
|
21.6～32VDC
|
21.6～32VDC
|
21.6～32VDC
|
21.6～32VDC
|
21.6～32VDC
|
|
Inverter output
|
|
|
|
|
|
|
|
Continuous output power
|
800W
|
800W
|
1200W
|
1600W
|
2400W
|
2400W
|
|
Output power 15min.
|
1000W
|
1000W
|
1500W
|
2000W
|
3000W
|
3000W
|
|
Output voltage range
|
220V(-6%~+5%)
230V(-10%~+5%)
|
220V±5%;230V(-10%～+5%)
|
220V±5%;230V(-10%～+5%)
|
220V±5%;230V(-10%～+5%)
|
220V±5%;230V(-10%～+5%)
|
220V±5%;230V(-10%～+5%)
|
|
Output frequency
|
50/60±0.1Hz
|
|
Output mode
|
Single phase
|
|
Output wave
|
Pure Sine Wave
|
|
Distortion THD
|
≤3%(12V or 24V resistive load)
|
|
Max.efficiency
|
91%
|
94%
|
95%
|
95%
|
95%
|
95%
|
|
Utility charging
|
|
|
|
|
|
|
|
Utility input voltage range
|
160VAC～280VAC(Working voltage range);
170VAC～270VAC(Utility starting voltage range)
|
|
Max.utility charge current
|
20A
|
20A
|
20A
|
30A
|
30A
|
30A
|
|
Solar charging
|
|
|
|
|
|
|
|
Max. PV open circuit voltage
|
60V(At minimum operating environment temperature);
46V(At 25℃ environment temperature)
|
100V(At minimum operating environment temperature);
92V(At 25℃ environment temperature)
|
150V(At minimum operating environment temperature);
138V(At 25℃ environment temperature)
|
|
Max. PV input power
|
390W
|
780W
|
780W
|
780W
|
780W
|
1500W
|
|
Max. PV charging current
|
30A
|
30A
|
30A
|
30A
|
30A
|
60A
|
|
Equalization voltage
|
Sealed:14.6V,Flooded:14.8V
|
Sealed:29.2V,Flooded:29.6V
|
|
Boost voltage
|
Gel:14.2V,Sealed:14.4V,Flooded:14.6V
|
Gel:28.4V,Sealed:28.8V,Flooded:29.2V
|
|
Float voltage
|
Gel/Sealed/Flooded:13.8V
|
Gel/Sealed/Flooded:27.6V
|
|
Tracking efficiency
|
≤99.5%
|
|
Charging conversion efficiency
|
≤98%
|
|
Temperature compensation
|
-3mV/℃/2V (Default)
|
|
Others
|
|
|
|
|
|
|
|
No load consumption
|
≤1.2A
|
≤0.6A
|
≤0.6A
|
≤0.8A
|
≤0.8A
|
≤0.8A
|
|
Enclosure
|
IP30
|
|
Operating temperature range
|
`-20℃～50℃(full input and output with no derating)
|
|
Dimensions(HxWxL)
|
386×300×126mm
|
386×300×126mm
|
386×300×126mm
|
444×300×126mm
|
444×300×126mm
|
518×310×168mm
|
|
Net weight
|
7.3kg
|
7.3kg
|
7.4kg
|
8.5kg
|
9.2kg
|
14.9kg
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
