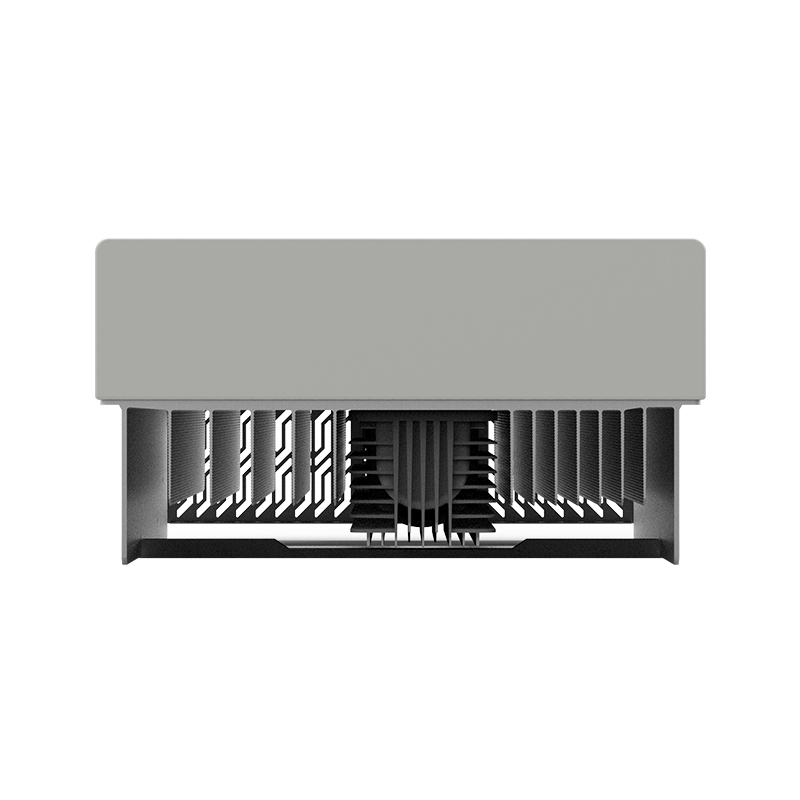

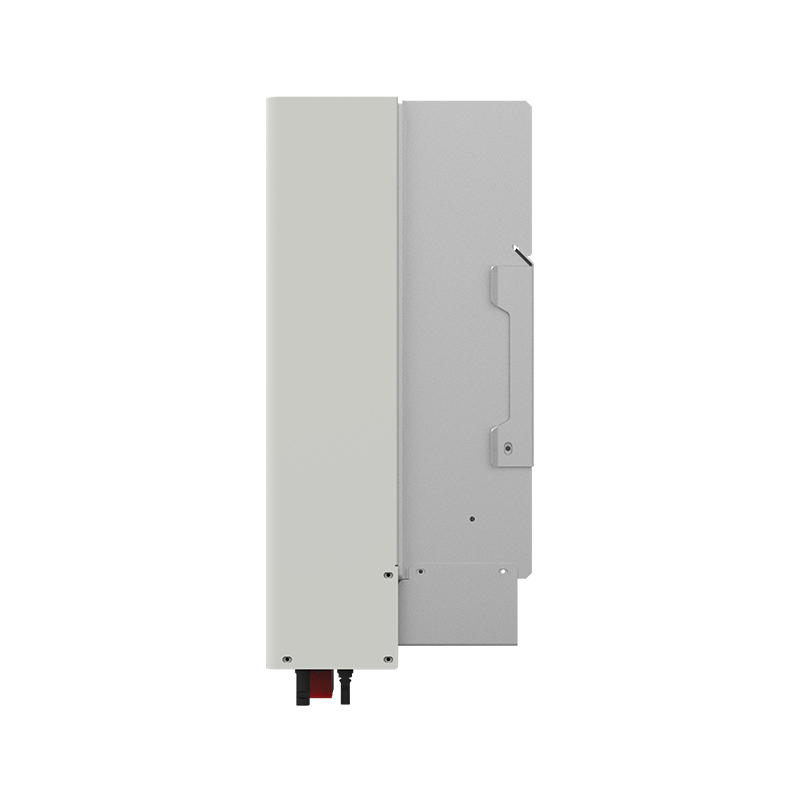

The HP Series 30A is an advanced hybrid inverter/charger engineered for diversified energy systems. It integrates practical parallel operation capabilities with unparalleled reliability and versatile charging modes. Equipped with an LCD display and Modbus communication protocol, it offers efficient energy management while maximizing solar energy utilization with optimized MPPT technology. The HP-AHP30A features an IP30 protection level, ensuring a premium, stable, and reliable electricity supply in indoor environments. With its noise level below 45dB, it provides a quiet operation ideal for settings where a low noise profile is essential. With these features, the HP-AHP30A is a reliable solution suitable for various environments and applications.
Specification
|
Model
|
HP3522-AH1250P30A
|
HP3542-AH0650P30A
|
HP5542-AH1050P30A
|
|
Utility input
|
|
Utility Input Voltage
|
176VAC~264VAC (Default), 90VAC~280VAC (Configurable)
|
176VAC~264VAC (Default), 90VAC~280VAC (Configurable)
|
|
Utility Input Frequency
|
45Hz~65Hz
|
45Hz~65Hz
|
|
Maximum Utility Charging Current
|
110A
|
60A
|
100A
|
|
Switch Response Time
|
Switch Response Time – Inverter to Utility: 10ms
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
|
Switch Response Time – Inverter to Utility: 10ms
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
|
|
Inverter output
|
|
Inverter Rated Power (@30℃)
|
3500W
|
3500W
|
5500W
|
|
3-second Transient Surge Output Power
|
7000W
|
7000W
|
8500W
|
|
Inverter Output Voltage
|
220/230VAC±3%
|
220/230VAC±3%
|
|
Inverter Frequency
|
50/60Hz±0.2%
|
50/60Hz±0.2%
|
|
Output Voltage Waveform
|
Pure Sine Wave
|
Pure sine wave
|
|
Load Power Factor
|
0.2~1(VA ≤ Rated output power)
|
0.2~1(VA ≤ Rated output power)
|
|
THDu (Total Harmonic Voltage Distortion)
|
≤3% (24V resistive load)
|
≤3% (48V resistive load)
|
|
Maximum Load Efficiency
|
89%
|
92%
|
91%
|
|
Maximum Inverter Efficiency
|
93%
|
94%
|
94%
|
|
Solar controller
|
|
PV Maximum Open-circuit Voltage
|
500V (At minimum operating environment temperature)
440V (At 25℃)
|
500V (At minimum operating environment temperature)
440V (At 25℃)
|
|
MPPT Voltage Range
|
85~400V
|
85~400V
|
|
Number of MPPTs
|
1
|
1
|
2
|
|
PV Maximum Input Current
|
One way, 20A/way
|
One way, 20A/way
|
Two ways, 2x15A
|
|
PV Maximum Input Power
|
4000W
|
4000W
|
2×3000W
|
|
PV Maximum Charging Current
|
120A
|
60A
|
100A
|
|
MPPT Maximum efficiency
|
≥99.0%
|
≥99.5%
|
|
Battery
|
|
Battery Rated Voltage
|
24VDC
|
48VDC
|
|
Battery Work Voltage Range
|
21.6VDC~32.0VDC
|
43.2VDC~64VDC
|
|
Battery Maximum Charging Current
|
120A
|
60A
|
100A
|
|
Others
|
|
No-load Losses
|
<1.3A
|
<0.6A
|
<1.0 A
|
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @24V input
|
Test condition: Utility, PV and Load are disconnected, AC output is ON, fan stops, @48V input
|
|
Standby Current
|
<0.3A Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @24V input
|
<0.15A Test condition: Utility, PV and Load are disconnected, AC output is OFF, fan stops, @48V input
|
|
Work Temperature Range
|
-20℃~+55℃ (When the environment temperature exceeds 35℃, the actual output power is reduced appropriately)
|
-20℃~+55℃
(When the environment temperature exceeds 35℃, the actual output power is reduced appropriately)
|
|
Storage Temperature Range
|
-25℃~+60℃
|
-25℃~+60℃
|
|
Enclosure
|
IP30
|
IP30
|
|
Relative Humidity
|
< 95% (N.C.)
|
< 95% (N.C.)
|
|
Altitude
|
<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
|
<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
|
|
Mechanical parameters
|
|
Dimension (Length x Width x Height)
|
541mm × 414mm × 228mm
|
513mm × 414mm × 224mm
|
541mm × 414mm × 228mm
|
|
Mounting Size (Length x Width)
|
340mm x 130mm
|
340mm x 130mm
|
340mm x 130mm
|
|
Mounting Hole Size
|
Φ10mm
|
Φ10mm
|
Φ10mm
|
|
Net Weight
|
23.2kg
|
20.4kg
|
24.4kg
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
