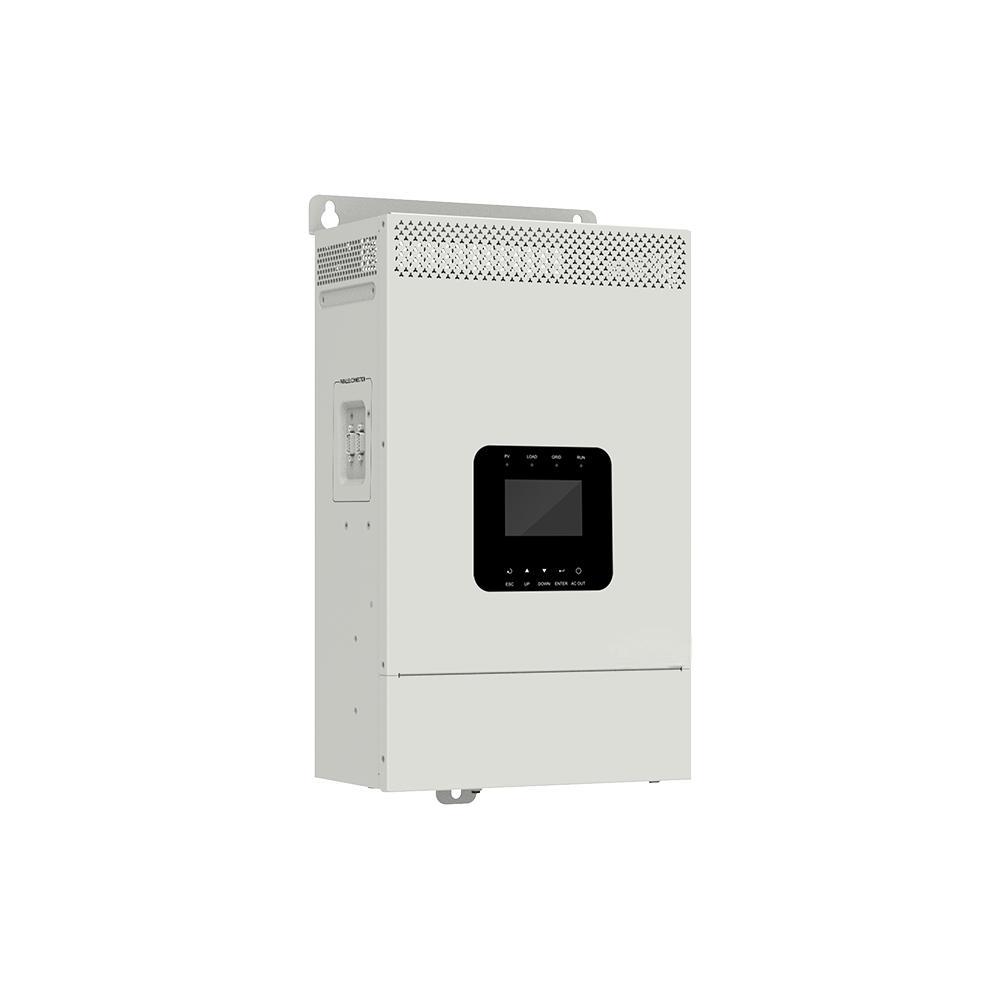

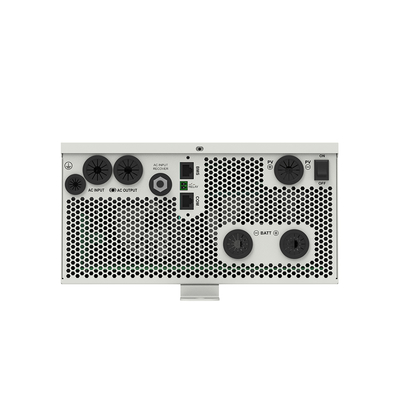

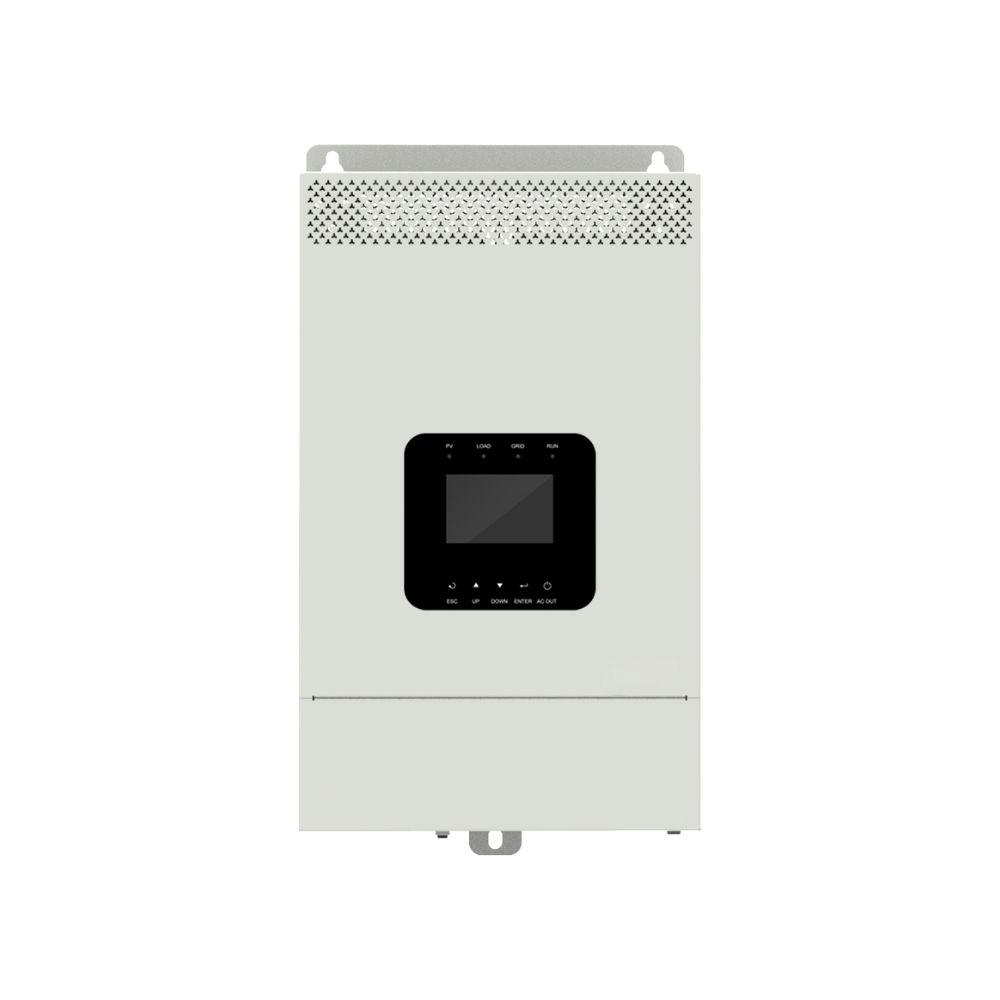

The HP Series 20SA is an advanced hybrid inverter/charger, supporting multiple energy sources like utility, oil generator, and solar. It offers parallel operation, high reliability, and various charging modes. Featuring a large LCD screen and Modbus communication, it provides efficient energy management. With optimized MPPT technology and dual closed-loop control, it maximizes solar power utilization. This inverter ensures high-quality, stable, and reliable electricity for your needs.
Specification
|
Model
|
HP3522-AH1250P20SA
|
HP3542-AH0650P20SA
|
HP5542-AH1050P20SA
|
|
Utility input
|
|
Utility Voltage
|
176VAC to 264VAC (Default)
90VAC to 280VAC (Configurable)
|
|
Utility Frequency
|
45Hz to 65Hz
|
|
Maximum Utility Charging Current
|
110A
|
60A
|
100A
|
|
Switch Response Time
|
Switch Response Time – Inverter to Utility: 10ms;
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
|
|
Inverter output
|
|
Inverter Rated Power (@30℃)
|
3500W
|
3500W
|
5500W
|
|
3-second Transient Surge Output Power
|
7000W
|
7000W
|
8500W
|
|
Inverter Output Voltage
|
220/230VAC±3%
|
|
Inverter Frequency
|
50/60Hz±0.2%
|
|
Output Voltage Waveform
|
Pure sine wave
|
|
Load Power Factor
|
0.2－1(VA ≤ Rated output power)
|
|
THDu (Total Harmonic Voltage Distortion)
|
≤3% (24V resistive load)
|
≤3% (48V resistive load)
|
|
Maximum Load Efficiency
|
91%
|
92%
|
92%
|
|
Maximum Inverter Efficiency
|
93%
|
94%
|
94%
|
|
Parallel Function
|
Yes, 12 units in standard, 16 units at most
|
|
Solar controller
|
|
PV Maximum Open-circuit Voltage
|
500V (At minimum operating environment temperature)
440V (At 25℃)
|
|
MPPT Voltage Range
|
85V to 400V
|
|
PV Maximum Input Power
|
4000W
|
4000W
|
6000W
|
|
MPPT Input Channels
|
One way
|
One way
|
Two ways
|
|
PV Maximum Input Current
|
One way, 16A
|
One way, 13A
|
Two ways, 2x15A
|
|
PV Maximum Short-circuit Current
|
One way, 18A
|
One way, 15A
|
Two ways, 2x18A
|
|
PV Maximum Charging Current
|
120A
|
60A
|
100A
|
|
MPPT Maximum efficiency
|
≥99.5%
|
|
Battery
|
|
Battery Rated Voltage
|
24VDC
|
48VDC
|
|
Battery Work Voltage Range
|
21.6VDC to 32.0VDC
|
43.2VDC to 60.0VDC
|
|
Battery Maximum Charging Current
|
120A
|
60A
|
100A
|
|
Others
|
|
No-load Losses
|
<1.4 A
|
<0.7A
|
<1.0 A
|
|
Test condition: Utility, PV and Load are not connected, AC output is ON, fan stops, @24V input
|
Test condition: Utility, PV and Load are not connected, AC output is ON, fan stops, @48V input
|
|
Standby Current
|
<0.9A
|
<0.5A
|
<0.75A
|
|
Test condition: Utility, PV and Load are not connected, AC output is OFF, fan stops, @24V input
|
Test condition: Utility, PV and Load are not connected, AC output is OFF, fan stops, @48V input
|
|
Work Temperature Range
|
-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)
|
|
Storage Temperature Range
|
-25℃ to +60℃
|
|
Enclosure
|
IP20
|
|
Relative Humidity
|
< 95% (N.C.)
|
|
Altitude
|
<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
|
|
Mechanical parameters
|
|
Dimension (Length x Width x Height)
|
590mm × 288mm × 163mm
|
534mm × 288mm × 163mm
|
590mm × 288mm × 163mm
|
|
Mounting size (Length x Width)
|
568mm x 245mm
|
512mm x 245mm
|
568mm x 245mm
|
|
Mounting hole size
|
Φ9mm/Φ10mm
|
Φ9mm/Φ10mm
|
Φ9mm/Φ10mm
|
|
Net Weight
|
14 Kg
|
12.0Kg
|
14.8Kg
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
