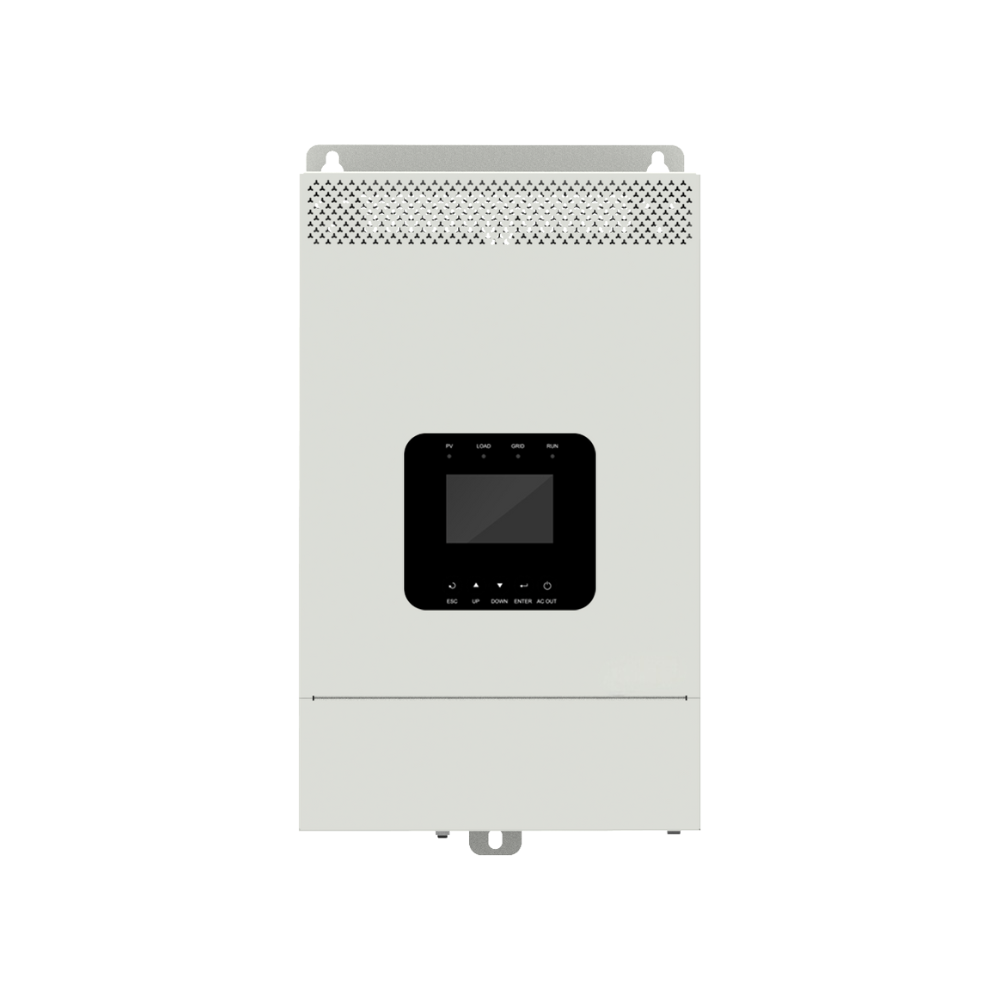

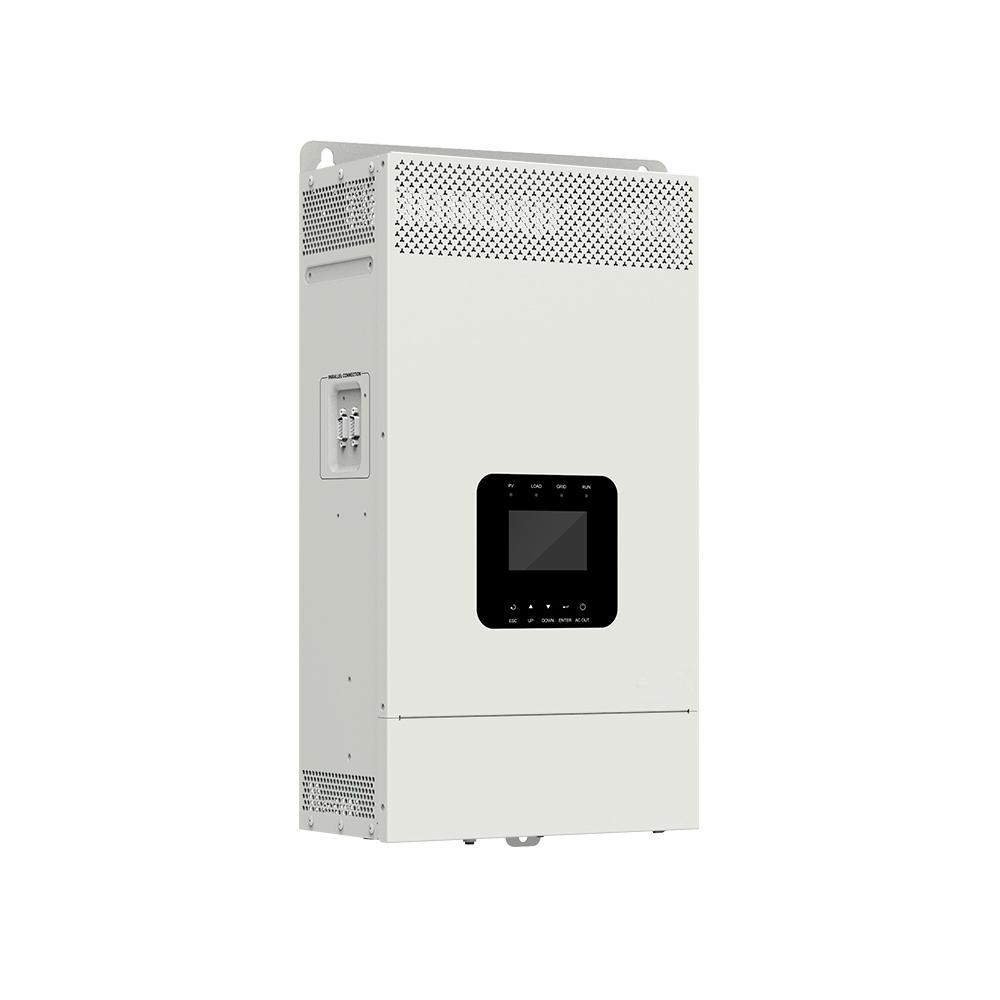

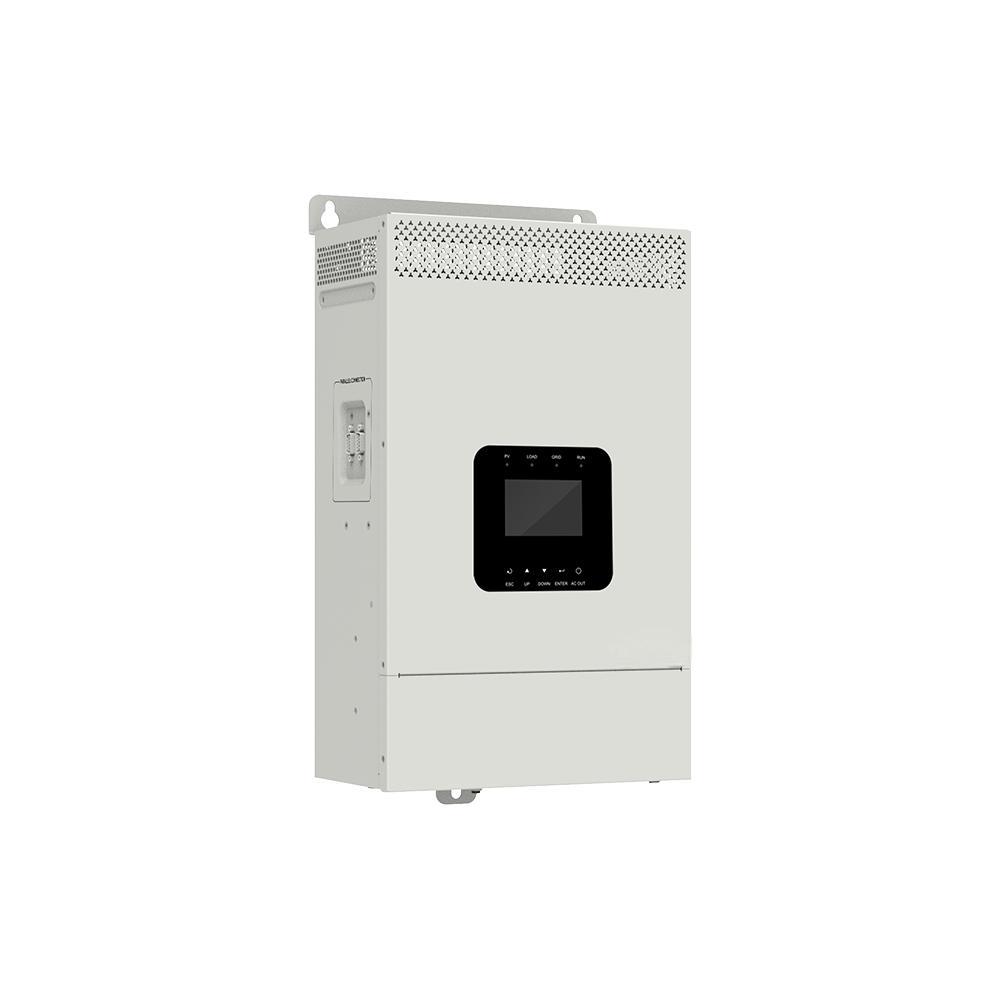

The HP-AHP20SA series is a cost-effective product. It supports multiple charging options, including utility, diesel generator, and solar. It is designed for utility bypass, inverter output, and energy management. The advanced DSP chip, along with its control algorithm, ensures rapid response times, reliability, and high conversion efficiency. Customers can efficiently utilize energy by flexibly switching between solar and utility power using customized settings. This high-quality product provides a stable power supply and is suitable for hybrid power generation systems that combine solar, utility, and oil engine sources. It meets the application requirements for customers seeking costeffective residential power supply solutions.
Specification
|
Model
|
HP3522-AH1250P20SA
|
HP3542-AH0650P20SA
|
HP5542-AH1050P20SA
|
|
Utility input
|
|
Utility Voltage
|
176VAC to 264VAC (Default)
90VAC to 280VAC (Configurable)
|
|
Utility Frequency
|
45Hz to 65Hz
|
|
Maximum Utility Charging Current
|
110A
|
60A
|
100A
|
|
Switch Response Time
|
Switch Response Time – Inverter to Utility: 10ms;
Switch Response Time – Utility to Inverter (when the load power is higher than 100W): 20ms
|
|
Inverter output
|
|
Inverter Rated Power (@30℃)
|
3500W
|
3500W
|
5500W
|
|
3-second Transient Surge Output Power
|
7000W
|
7000W
|
8500W
|
|
Inverter Output Voltage
|
220/230VAC±3%
|
|
Inverter Frequency
|
50/60Hz±0.2%
|
|
Output Voltage Waveform
|
Pure sine wave
|
|
Load Power Factor
|
0.2－1(VA ≤ Rated output power)
|
|
THDu (Total Harmonic Voltage Distortion)
|
≤3% (24V resistive load)
|
≤3% (48V resistive load)
|
|
Maximum Load Efficiency
|
91%
|
92%
|
92%
|
|
Maximum Inverter Efficiency
|
93%
|
94%
|
94%
|
|
Parallel Function
|
Yes, 12 units in standard, 16 units at most
|
|
Solar controller
|
|
PV Maximum Open-circuit Voltage
|
500V (At minimum operating environment temperature)
440V (At 25℃)
|
|
MPPT Voltage Range
|
85V to 400V
|
|
PV Maximum Input Power
|
4000W
|
4000W
|
6000W
|
|
MPPT Input Channels
|
One way
|
One way
|
Two ways
|
|
PV Maximum Input Current
|
One way, 16A
|
One way, 13A
|
Two ways, 2x15A
|
|
PV Maximum Short-circuit Current
|
One way, 18A
|
One way, 15A
|
Two ways, 2x18A
|
|
PV Maximum Charging Current
|
120A
|
60A
|
100A
|
|
MPPT Maximum efficiency
|
≥99.5%
|
|
Battery
|
|
Battery Rated Voltage
|
24VDC
|
48VDC
|
|
Battery Work Voltage Range
|
21.6VDC to 32.0VDC
|
43.2VDC to 60.0VDC
|
|
Battery Maximum Charging Current
|
120A
|
60A
|
100A
|
|
Others
|
|
No-load Losses
|
<1.4 A
|
<0.7A
|
<1.0 A
|
|
Test condition: Utility, PV and Load are not connected, AC output is ON, fan stops, @24V input
|
Test condition: Utility, PV and Load are not connected, AC output is ON, fan stops, @48V input
|
|
Standby Current
|
<0.9A
|
<0.5A
|
<0.75A
|
|
Test condition: Utility, PV and Load are not connected, AC output is OFF, fan stops, @24V input
|
Test condition: Utility, PV and Load are not connected, AC output is OFF, fan stops, @48V input
|
|
Work Temperature Range
|
-20℃ to +50℃ (When the environment temperature exceeds 30℃, the actual output power is reduced appropriately)
|
|
Storage Temperature Range
|
-25℃ to +60℃
|
|
Enclosure
|
IP20
|
|
Relative Humidity
|
< 95% (N.C.)
|
|
Altitude
|
<4000M (If the altitude exceeds 2000 meters, the actual output power is reduced appropriately)
|
|
Mechanical parameters
|
|
Dimension (Length x Width x Height)
|
590mm × 288mm × 163mm
|
534mm × 288mm × 163mm
|
590mm × 288mm × 163mm
|
|
Mounting size (Length x Width)
|
568mm x 245mm
|
512mm x 245mm
|
568mm x 245mm
|
|
Mounting hole size
|
Φ9mm/Φ10mm
|
Φ9mm/Φ10mm
|
Φ9mm/Φ10mm
|
|
Net Weight
|
14 Kg
|
12.0Kg
|
14.8Kg
|
