Name: Custom Made 48Vdc 48KW 1000A Indoor Telecom Power System with FP2 Rectifier for Data Centers
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: FP2 48V 48KW 3 phase 208V
Price: 1999 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: Custom Made

Model Number: FP2 48V 48KW 3 Phase 208V

Product Name: 48V Indoor Big System

Input Voltgae: 208Vac

DC Output: 48Vdc

Capacity: 48KW

Current: 1000A

Height: 2000*600*600 Mm

Highlight:

48kw 1000a telecom rectifier systems

48v rectifier module telecom

custom made telecom rectifier 48v

Basic Infomation

Place of Origin: CN

Brand Name: OEM

Certification: CE

Model Number: FP2 48V 48KW 3 phase 208V

Document: datasheet-flatpack2-48v-he-...-1.pdf

Payment & Shipping Terms

Packaging Details: Wooden cartons

Delivery Time: 2-4 weeks

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: 500 sets / month

Gallery

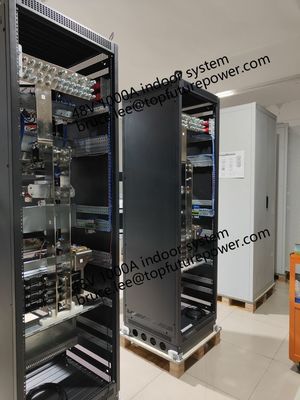

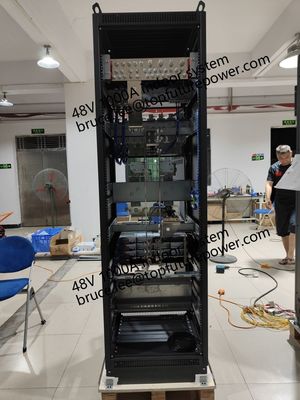

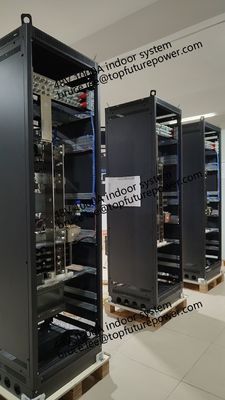

Custom Made 48Vdc 48KW 1000A Indoor Telecom Power System with FP2 Rectifier for Data Centers

Product Description

Custom Made Power Plant FP2 48Vdc 48kw 1000A Indoor Telecom Big Plant

Custom engineered FP2 48Vdc 48kw 1000A Indoor Telecom Cabinet with Eltek Rectifier and Smartpack2 Controller, designed for 3 Phase 208V operation with SPD and BDLD capabilities.

CET Modular Inverter Module TSI BRAVO 110/230

110Vdc 230Vac 2.5kva 2kw Inverter (Part Number: T321750201)

System Overview

The FP2 48V 48KW 3 phase 208V Indoor Telecom Power System is specifically engineered for data center applications in South American markets. This system operates with a mains input voltage of 3 phase 208V instead of the standard 3 phase 380V configuration.

Key Features

Maximum capacity of 16 rectifier slots for Flatpack2 48/3000HE (241119.105) or Flatpack2 48/3000 (241115.903)
Maximum current output of 1000A, expandable to 2000A when combined
Smartpack2 Controller with 6+6 I/Q monitoring capability
Optional LVLD, LVBD and SPD configurations available
Customizable breaker brands to meet specific requirements

Technical Specifications

Product Name	Configuration
48V 48KW 1000A Indoor Power System	48Vdc indoor DC power system Dimensions: 2000600600mm Maximum capacity: 48V 48KW, 1000A with 16 rectifier slots Compatible rectifiers: FP2 48/3000HE, FP2 48/3000, FP2 48/2000HE Smartpack2 Controller AC input breakers: 2160A/3P (custom-made) 40KA SPD protection LVBD load: 263A/1P MCB (custom-made) LVLD load: 263A/1P MCB (custom-made) Fuses load: 4400A (custom-made)
