Product Description:
| MODEL |
300ADISTRIBUTION |
500ADISTRIBUTION |
| |
Partnumber(configuredpowersystems) |
CTO30408S.4xxx |
CTO308xxS.4xxx |
|
| POWERMODULES |
|
|
| |
Connection |
Terminalblocks,10mm2max |
|
| INPUTDATA(SOLARCHARGER) |
|
| |
Voltage(range) |
85-420VDC(operatingrange)/100-380VDC(MPPTrange) |
|
| |
Voltage(start-up) |
150VDC |
|
| |
Maximumcurrent |
20ADC |
|
| PVCONNECTIONPANEL |
|
| ServiceswitchesforPVarrays |
4pcs2-pole |
4or8pcs2-pole |
|
| |
DCSPDType2(option) |
Upto4pcs |
Upto8pcs |
|
| OUTPUTDATA |
|
| |
Voltage |
-48VDC |
-48VDC |
|
| |
Current(maximum) |
300A |
500A |
|
| BATTERYDISTRIBUTION |
|
| |
Numberofbreakerpositions |
6x(singlepole) |
8x(singlepole) |
|
| |
LVBD |
300A |
500A |
|
| |
Batterybreakertype |
Plug-intype(D-frame) |
|
| LOADDISTRIBUTION |
|
| |
Numberofloadpositions |
Upto18x18mmUpto16x18mm |
|
| LVLD1 |
300A(max12x18mmor4x27mm+300A(max10x18mmor4x27mm+ |
| |
LVLD2(option) |
150A(max6x18mmor4x27mm)150A(max6x18mmor4x27mm) |
|
| |
Loadbreakertype |
DINrailmounted,18mmand27mmwide |
|
| CONTROLANDMONITORING |
| |
ControlandMonitoringunit |
3) |
Smartpack2Touch+Smartpack2Basic+I/OMonitorType2 |
|
| |
Mountinglocation |
Doorpanelmounted |
|
| |
Localoperation |
Menuguidedoperationviatouch-padandgraphicalcolourdisplay |
|
| |
Remoteoperation |
Ethernetforremote/localmonitoringandcontrolviaWEBBrowser |
|
| OTHERSPECIFICATIONS |
| |
Operatingtemperature |
-40to+70°C |
[-40to+158°F]4) |
|
| |
Storagetemperature |
-40to+85°C |
[-40to+185°F] |
|
| Dimensions(WxDxH)5) |
482x384xH |
mm[19x15.1xHinch]482x384xHmm[19x15.1xHinch] |
Features:
- Product Name: Telecom Hybrid System
- Max Efficiency: N/A
- Max Output Frequency: N/A
- Communication Interface: N/A
- Voltage: 48V
- Max Output Voltage: N/A
- Features: Communication Power Supply, Solar Extension Kit, Eltek Cabinet
Technical Parameters:
| Property |
Value |
| Max Output Voltage Ripple |
N/A |
| Communication Interface |
N/A |
| Model |
FP2 |
| Power |
6.4KW |
| Type |
Telecom Hybrid System |
| Protection Level |
N/A |
| Voltage |
48V |
| Operating Temperature |
N/A |
| Max Output Current |
N/A |
| Battery Capacity |
N/A |
| Brand |
Eltek Power |
| Product |
Hybrid Solar Systems |
| System |
Flatpack Power System |
Applications:

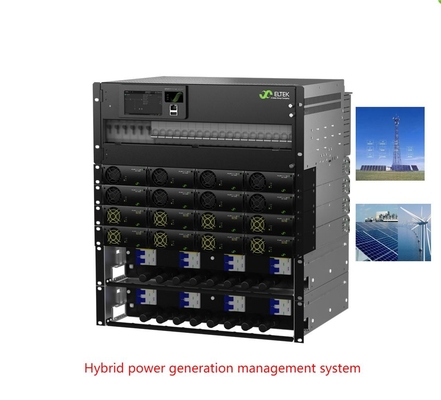

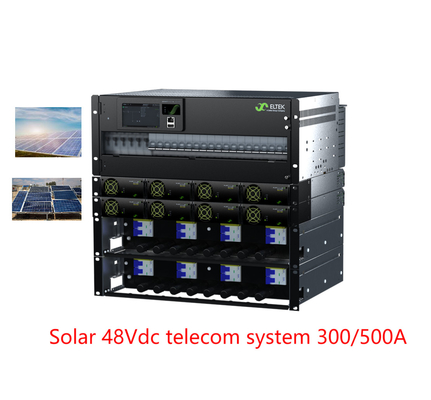

Telecom Hybrid System
The Telecom Hybrid System is a powerful hybrid solar system that provides a reliable communication power supply and a flatpack power system. This system is designed with the FP2 model, and offers excellent performance, with no need for a battery or a voltage ripple. It also operates at a wide range of temperatures, making it suitable for a variety of applications.
The Telecom Hybrid System can be used in many different scenarios. In the telecommunications industry, it can be used to power remote base stations, wireless communication towers, and other communication equipment. In the industrial sector, it can be used to power remote monitoring systems, industrial robots, and other automated systems. It can also be used in the energy industry to power solar farms, wind turbines, and other renewable energy systems.
The Telecom Hybrid System is a reliable and efficient power system that can meet the needs of many different industries. It is a cost-effective solution for powering a variety of applications, and its versatility makes it a great choice for any business.
Support and Services:
Telecom Hybrid System provides comprehensive technical support and services to ensure smooth operation and customer satisfaction.
We provide technical support for our products, including troubleshooting, installation, maintenance, and upgrades. Our team of experts is available to assist you with any questions or concerns you may have. We also provide training and support for users to ensure they are able to use our products to their fullest potential.
We also offer a variety of services, such as installation and commissioning, maintenance, upgrades, and system integration. Our team of experienced professionals is available to assist you with any of your needs.
We strive to provide the best customer service possible. We are committed to providing timely and accurate responses to all inquiries, and to resolving any issues in a timely manner. We are dedicated to ensuring customer satisfaction and providing a positive customer experience.
Packing and Shipping:
Telecom Hybrid System Packaging and Shipping
The Telecom Hybrid System is designed to be shipped safely and securely in a standard box or pallet.
To ensure the safe arrival of the Telecom Hybrid System, please follow these instructions when packing and shipping the product:
- Gently place the Telecom Hybrid System in the box or pallet.
- Ensure all connections are secure and all components are properly packaged.
- Close the box or pallet securely and tape it shut.
- Label the box or pallet with the product name and appropriate shipping information.
- Ship the box or pallet with a reliable shipping company.
.
