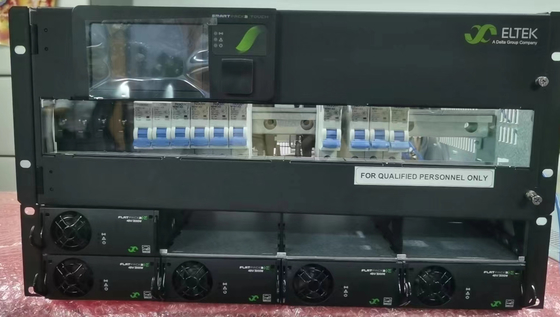

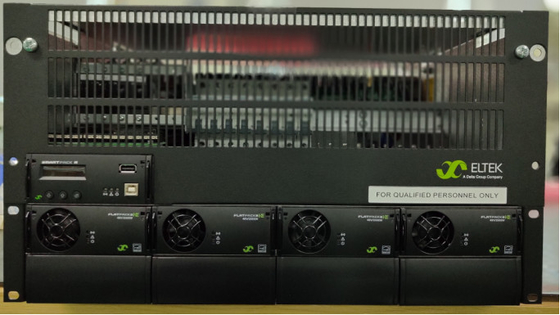

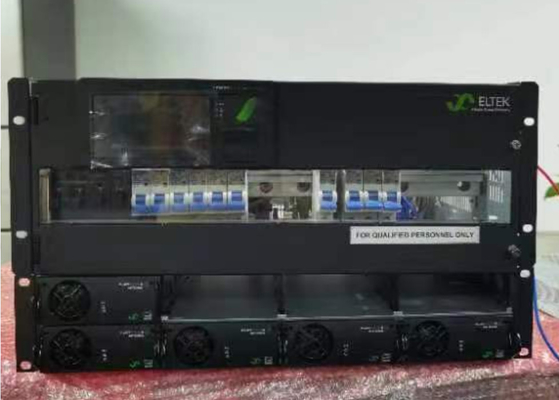

Eltek 48Vdc 19 Inch 5U Telecom 16kw 300A CTO System Smartpack Touch Controller With Distribution Breakers

Eltek 48Vdc 19inch 5U Telecom 16kw 300A CTO System Smartpack Touch Controller with distribution breakers

The combination of high efficiency, power density and reliability makes the Flatpack2 a

product family that truly stands out and provides unparalleled network availability. The versatility of the Flatpack2 rectifier in combination with advanced control and monitoring means that it can be used in a wide variety of DC Telecom applications, both for fixed grid and alternative energy across the globe.

Basic system:

-19”/4U distribution chassis and copper bars

-One FP2 power shelf & Hinged front door with

Smartpack2 master or Smartpack S controller

-4/6 x plug-in battery breaker positions

-8/6 x18mm DIN rail breaker positions

-LVBD

-Temperature sensor & Mains input terminals

Configurable options

-FP2 power shelf

-Battery breakers: 4 or 6 x 100A positions

-Load breakers: up to 2 x additional sections of

6/4 positions (18/27mm), optional 150A LVLD

-Load breakers: Max 20 x 18mm /

-Blank panel for unused breaker positions

-AC surge protection & Chassis top cover

Configurations on request

-10 battery breaker positions

-13mm DIN rail load breakers positions (max 26)

-Plug-in load breaker positions (max 10)

-300A LVLD

Configuration:

(Custom- make for the DC distribution breakers or as standard one )
