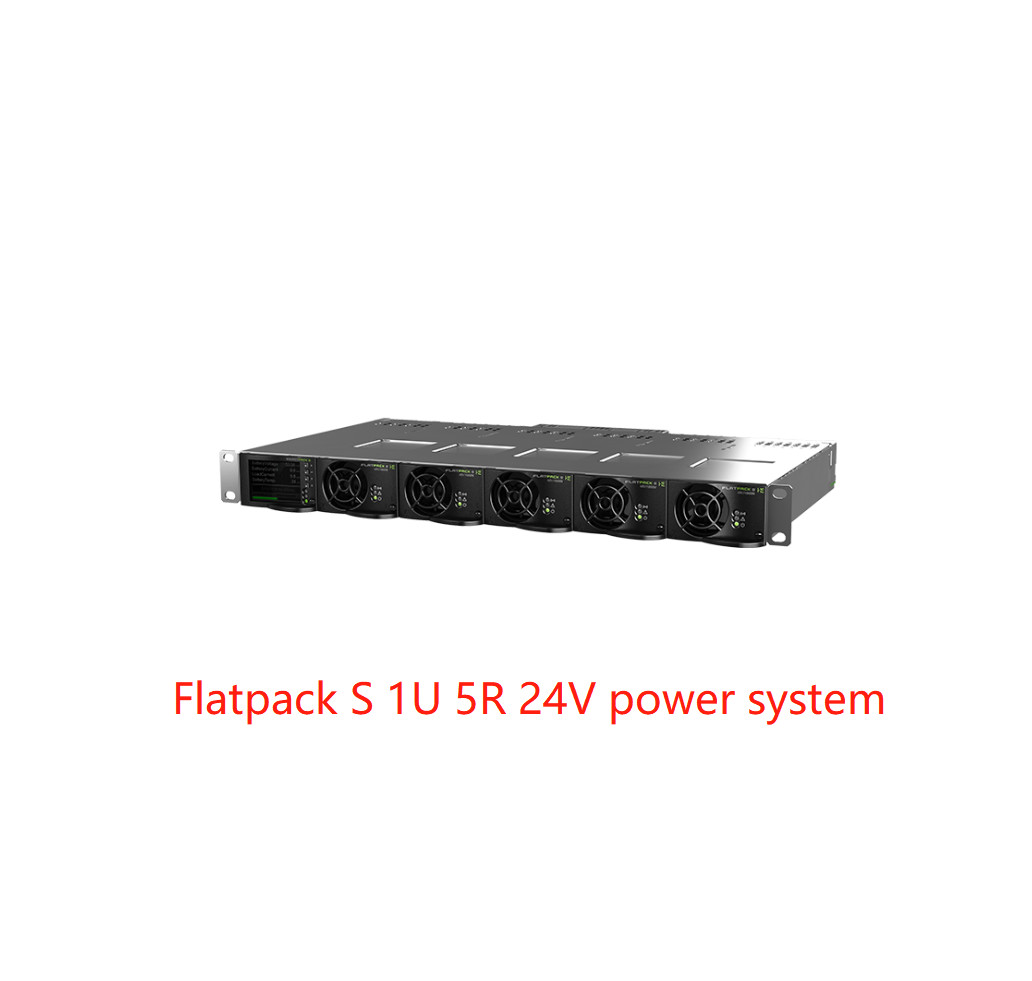

Eltek 24v Flatpack S 1u 5r 9kw Telecom Power System With Flatpack S He 24v/1800w (241122.900)
Eltek 24V 1U 19 INCH TELECOM POWER SHELF with 5 pcs Flatpack S 24/1800HE (241122.900 )
The Flatpack S 1U Power Shelves are designed for integration into a power system. It can be
used with all Flatpack S rectifiers and meets the markets demand for flexible and expandable
power solutions. The combination of power density, efficiency, and reliability makes the
Flatpack S family a perfect choice for telecom and industrial applications.
APPLICATIONS
- INDUSTRIAL
- · OFFHORE
- · PROCESS INDUSTRY
- RAILWAY INFRASTRUCTURE
- · CONTROL AND PROTECTION
- · SIGNALLING
- TELECOM – FIXED
- · FIBER OPTICS / FTTX
- · MICROWAVE
- ·
- CABLE
- · BROADBAND
- TELECOM – MOBILE / WIRELESS
- · BROADBAND
- · LTE/4G/WIMAX
KEY FEATURES
- COMPACT HE POWER SHELVES
- HOT PLUGGABLE RECTIFIERS
- FPS 24/1000 HE
- FPS 24/1000 HE SIL3
- FPS 48/1000 HE
- FPS 48/1800 HE
- 270 MM DEPTH
- 1U HEIGHT
- FLUSH OR MID MOUNT
- AC OR DC INPUT
- FLOATING OUTPUT
- 24Vdc
- ADVANCED CONTROL AND
- MONITORING
Parameters :
|
|
|
| Model Flatpack S 1U/ C+5R Flatpack S 1U/ 6R |
| Part number 241122.900 241122.901 |
| INPUT DATA |
|
| Voltage (nominal) |
185 - 305V AC/ DC |
|
| Maximum current (per feed) 21Arms |
| Mains configuration 3 x single phase |
| Mains connection 6 x faston |
| Frequency 45 – 66Hz |
| OUTPUT DATA |
|
| Maximum voltage |
60VDC |
|
| Maximum current 187,5Adc 225Adc |
| Connection M6 insert nuts |
| CONTROLLER |
| Smartpack S1) External 2) |
| MECHANICAL DATA |
|
| Dimensions (W/ H/ D) |
19” / 1U / 270mm
(recommended minimum cabinet depth, 300mm)
|
|
| Weight (without rectifiers / controller) 2,8 Kg [6.17 lbs] |
| OTHER SPECIFICATIONS |
| Operating temperature 3) -40 to +85°C (-40 to +185°F) |
| Coding Coding to prevent insertion of incorrect power modules |
| Mounting Flush mount or mid mount |
| DESIGN STANDARDS |
| Electrical safety UL 60950-1 2ed, EN 60950-1 2ed |
|
EMC ETSI EN 300 386 V.1.6.1
EN 61000-6-1 (immunity, light industry) EN 61000-6-2 (immunity, industry)
EN 61000-6-3 (emission, light industry)
EN 61000-6-4 (emission, industry)
|
|
Environment ETSI EN 300 019-2-1 Class 1.2
ETSI EN 300 019-2-2 Class 2.3
ETSI EN 300 019-2-3 Class 3.2
|
|

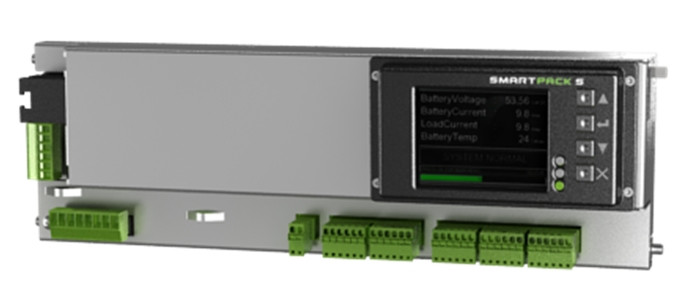

1) See applicable datasheet for Smartpack S

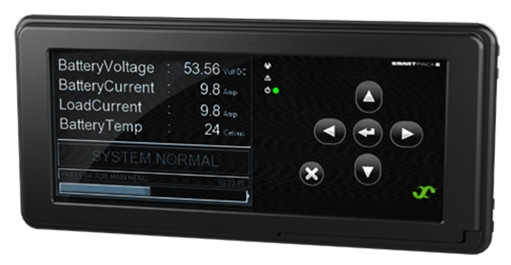

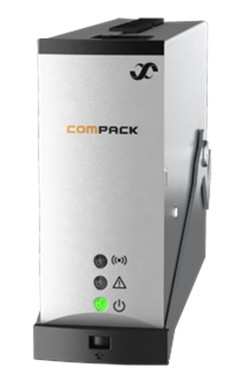

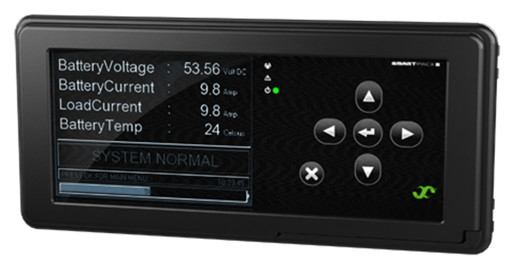

2) Can be used with Compack, Smartpack 2 and Smartpack S controllers
3) See rectifier and controller datasheet for details
|
* Flatpack S 1U with 6R avaliable *
