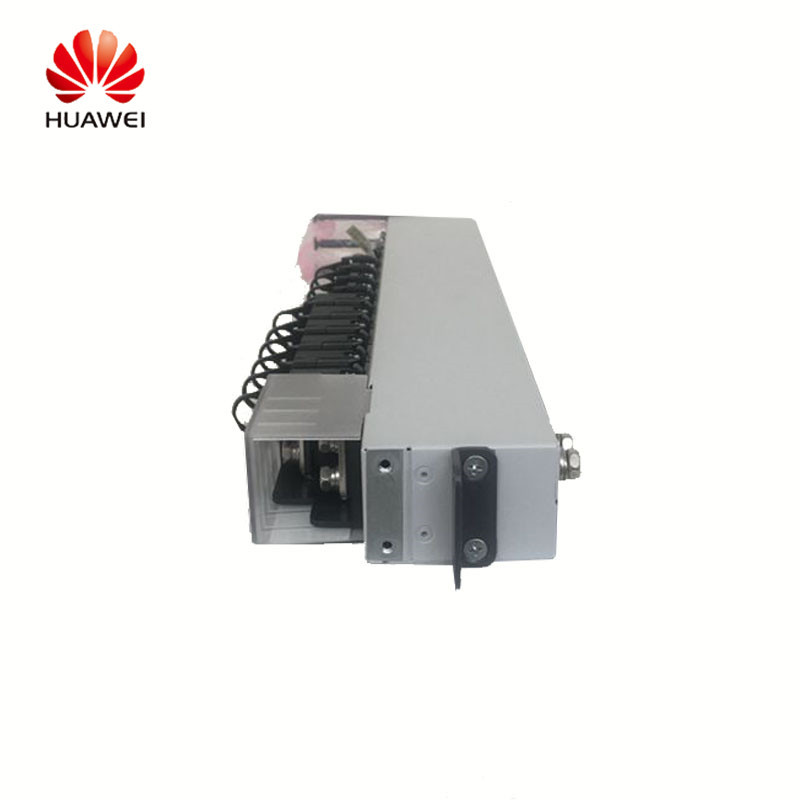

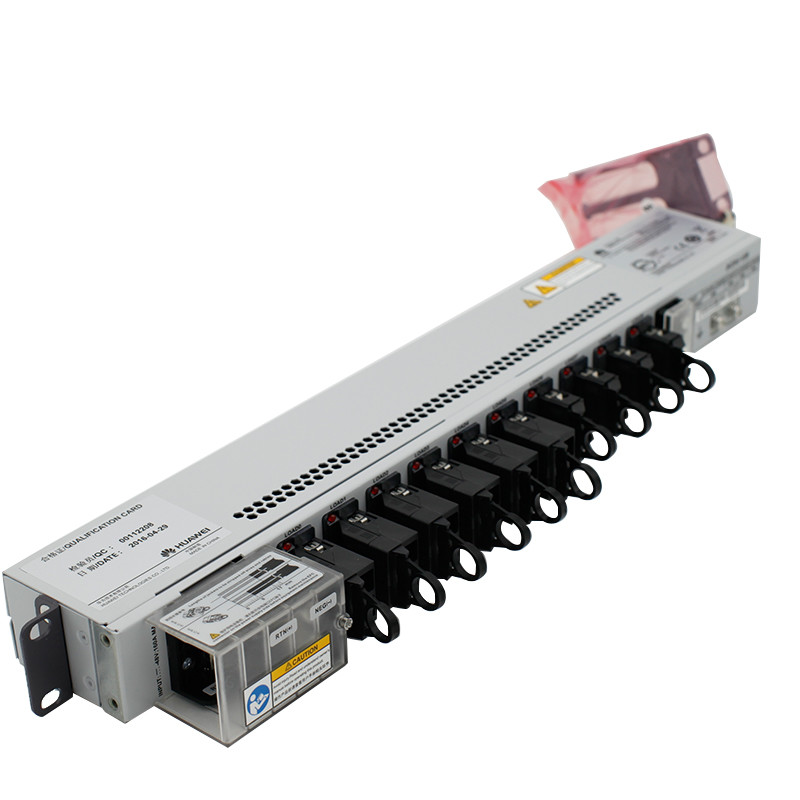

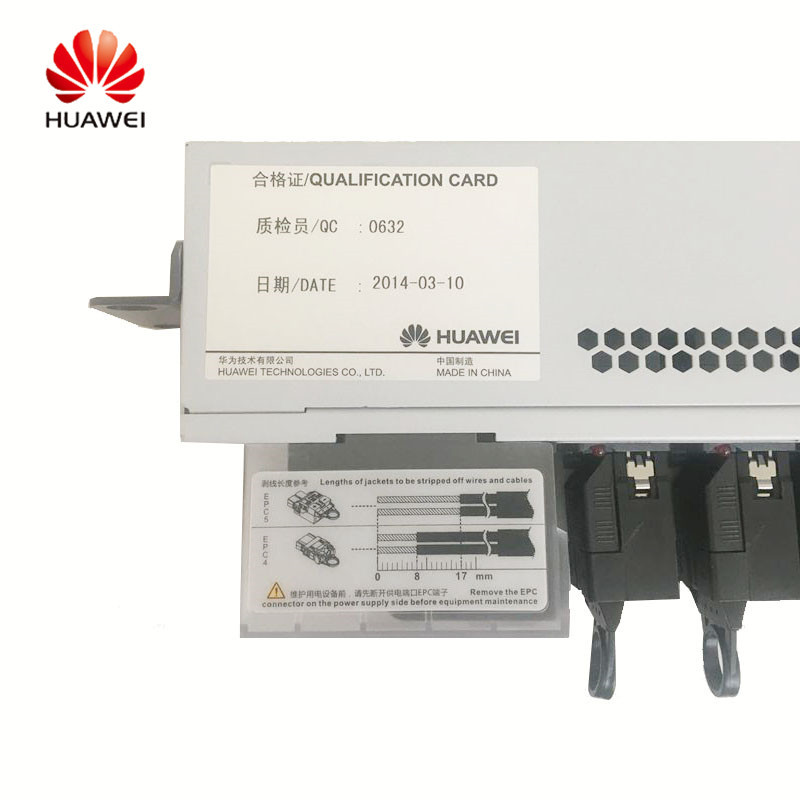

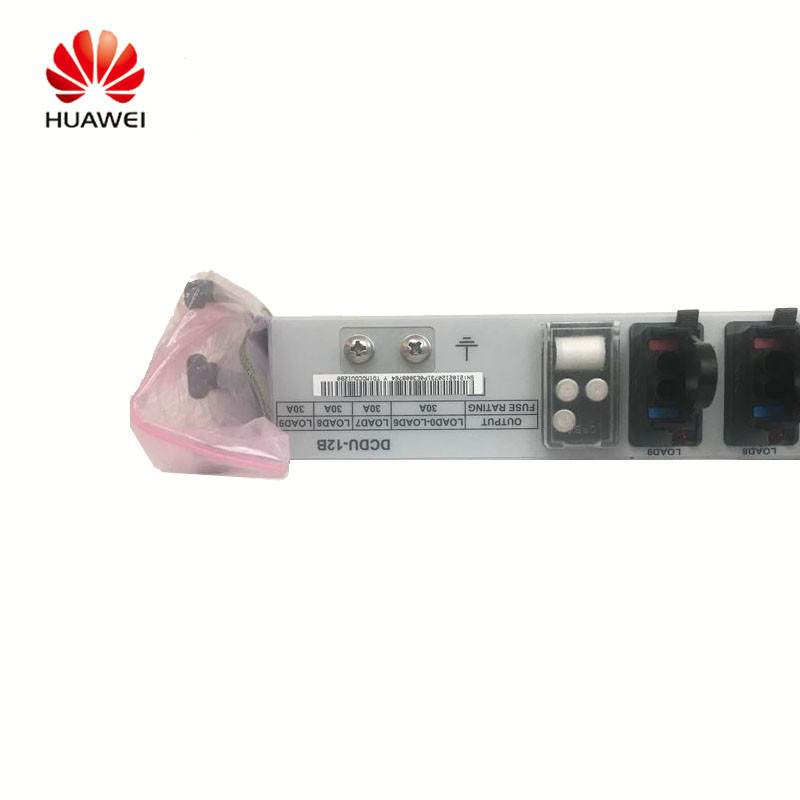

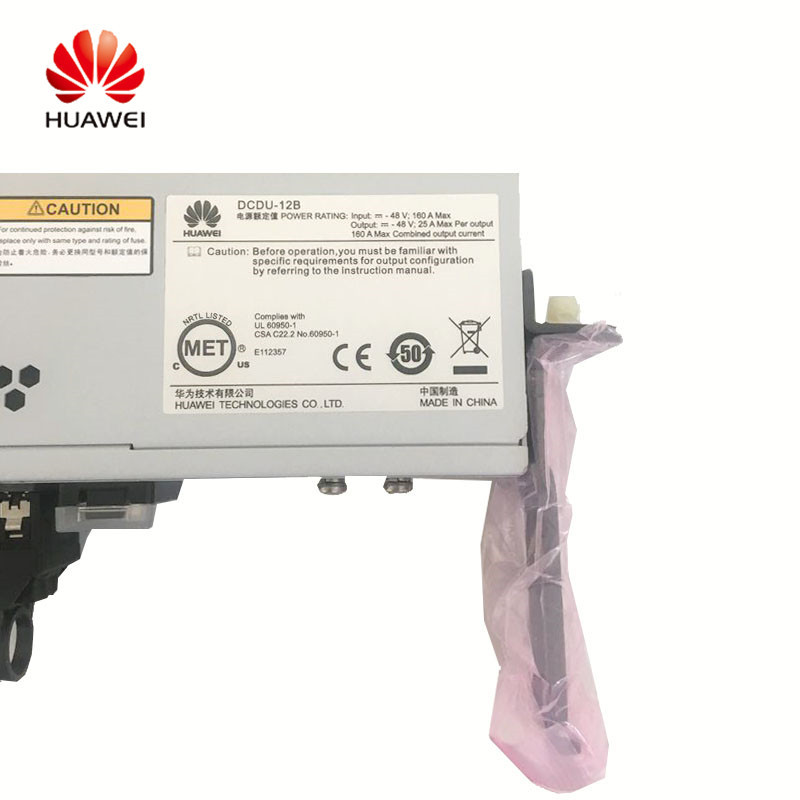

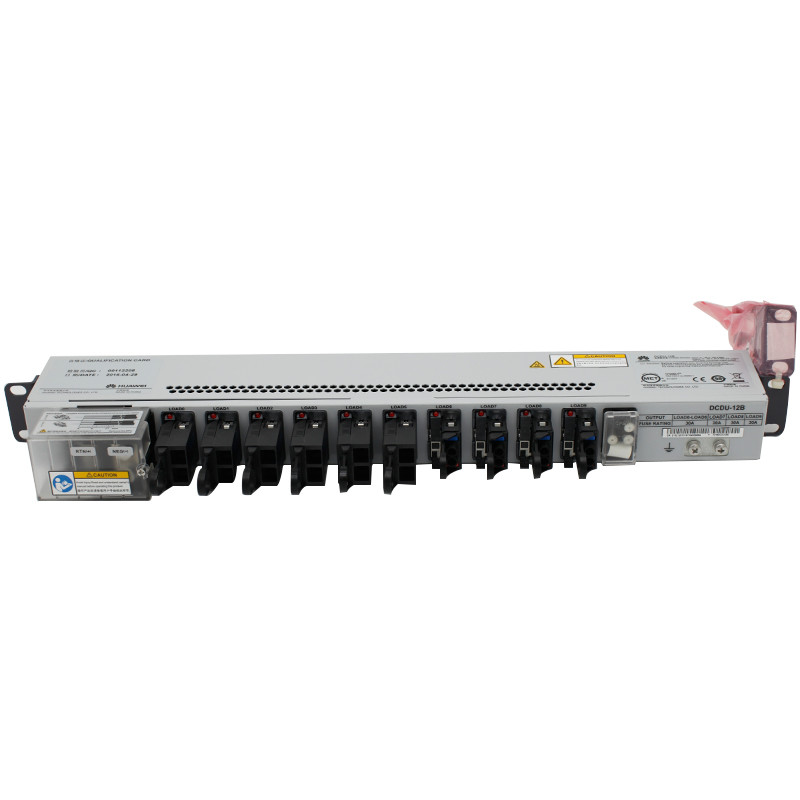

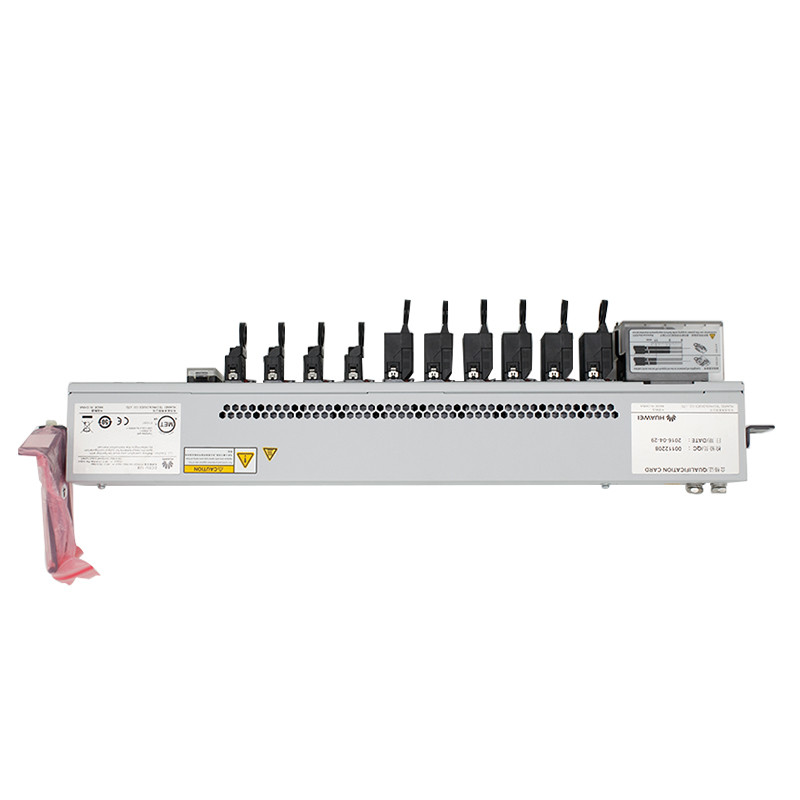

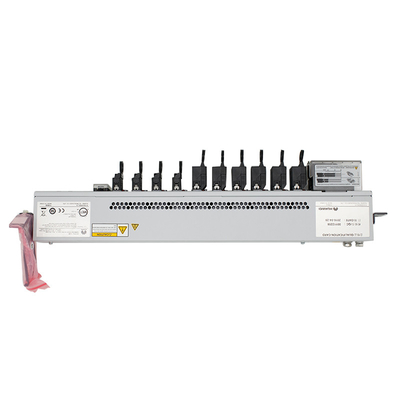

Huawei Brand PDU Power Distriubtion Unit DCDU-12B 48V with 12 output
Huawei Brand PDU Power Distriubtion Unit DCDU-12B 48V with 12 output
DCDU-12B is offering 2 input terminal blocks and 10 individual fused outputs, a highly
reliable DC Power Distribution Unit(PDU), and easy installation of directly DC connector.
It's widely used in Telecom, BTS, Mobile, Unicom, electric power, army, public security,
etc.
System features
Ø Standard 19" structure design providing excellent universality
Ø Compact and light weight, embedded installation, saving room area and installation
cost
Ø Full front access operation for easy maintenance
Ø Complies with UL60950-1, CSA C22.2 No.60950-1,NRTB
| Item |
Technical specification |
| Rated voltage: |
-48V |
| Input Voltage range: |
-38.4Vdc~-57Vdc |
| Input Current(Max): |
160A |
| Input channels: |
2 blocks, DC-48V,Max 160A |
| Rated Output Voltage: |
-48Vdc |
| Output Voltage range: |
-38.4Vdc~-57Vdc |
| Output channels: |
10 channels, 30A/Channel |
| Output protection: |
Fuse |
| Voltage drop: |
≤0.5Vdc |
|
Working environment:
|
Operating temperature: -40°C~+65°C Operating humility: 0~95% (non-condensing)) Operating Elevation: 0~3000m |
| Dimension: |
L*D*H(mm).442 mm *125 mm *42 mm |
| Weight: |
3.5Kg |
| Packing: |
580 mm *225 mm *120mm, 4.0kg |
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
