Name: Compact HE Eltek Flatpack S 1U Power Systems 3KW 5.4KW 230VAC Single Phase
Brand: Beijing Ding Ding Future Technology Co.Ltd
SKU: CTOS0201.xxx /CTOS0301.xxx
Price: 2,650.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Brand: Eltek

Part No.: CTOS0201.xxx /CTOS0301.xxx

AC Input Voltage: 300VAC

Mains Configuration: 230VAC Single Phase

DC Output: 100 ADC

DC Max Voltage: 60 VDC

DC Out Power: 5.4KW

DC Battery Breaker Distribution: 2

Breaker Rating Up To: 80A

LVBD: Yes

Package: Cartons

Highlight:

HE Eltek Flatpack S 1U 5.4KW

Eltek Flatpack S 1U 5.4KW

Compact HE 1U power systems 5.4KW

Basic Infomation

Place of Origin: CN

Brand Name: Eltek

Certification: CE, UL

Model Number: CTOS0201.xxx /CTOS0301.xxx

Payment & Shipping Terms

Packaging Details: Carton pacaked

Delivery Time: 8-10 weeks

Payment Terms: L/C,T/T,MoneyGram,Western Union,D/P

Supply Ability: 500 sets per month

Gallery

Compact HE Eltek Flatpack S 1U Power Systems 3KW 5.4KW 230VAC Single Phase

Product Description

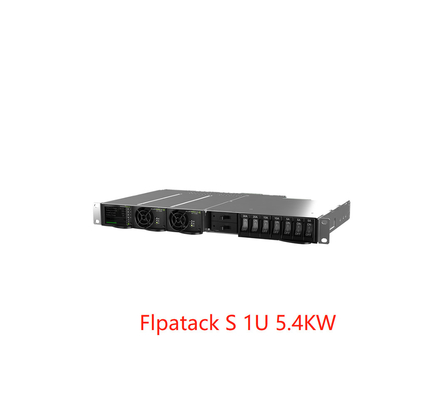

Compact HE Eltek Flatpack S 1U Power Systems 3KW 5.4KW 230VAC Single Phase 0

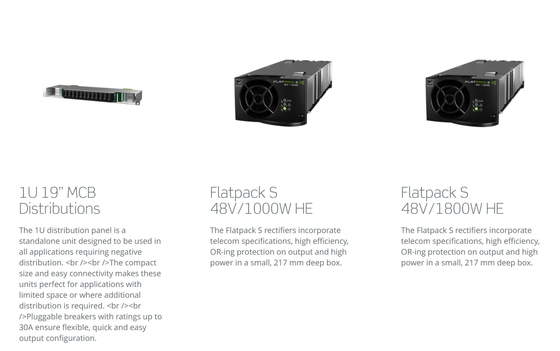

Eltek Flatpack S 1U 3KW 5.4KW DC power system with Flaptack S 48/1000W or Flatpack S 48/1800HE

Compact HE 1U power systems
Increasing network speed demands flexible and expandable DC power solutions. Due to its small size, high efficiency, reliability and wide range of communication, the Flatpack S System is the key for future needs. The shallow depth makes the system suitable for most cabinets and thereby excellent as a replacement unit.

Key features

Complete system
SmartpackS controller
Rectifiers
Battery distribution
Load distribution
262 mm system depth
1U height
Hot pluggable rectifiers
Hot pluggable controller
Advanced control and monitoring through ethernet port
2R (40A)
Load options
7 x 30AMCB drawer (optional LVLD)
4 x 30A MCB front
7 x 15A fuse front
3R (100A)
Load options
2 x 80A

Parameters :

Model	1	Controller + 2 Rectifiers	1 Controller + 3 Rectifiers
Part number	CTOS0201.xxx		CTOS0301.xxx
INPUT DATA
Voltage	100 - 250V AC		100 - 250V AC
Mains Configuration	230VAC, 1 phase or 2 x 1phase		230VAC, 3 x 1 phase or 3 phase( ∆) 230/ 400V AC, 3 phase (Y)
Mains Connection	2,5mm ² Terminal blocks, rear connection
Frequency	45 to 66Hz
OUTPUT DATA
Voltage	- 48Vdc		- 48Vdc
Max. Current	40A		100A
BATTERY DISTRIBUTION
LVBD	Default		Default
Breaker (Plug-in type) maximum size	2 x 40A ¹⁾		2 x 80A ¹⁾
Connection (rear)	16mm ² Terminal blocks		M6 cable lug
LOAD DISTRIBUTION
Rear connections	N/ A		2 x 80A, M6 cable lug
Rear cabel entry, front access Connections, screw terminals Optional LVLD	7 x 3 0A MCB ²⁾ 7 X 4mm ² on MCB 1 and 2		N/ A
Front connections Plug-able screw terminals	4 x 3 0A MCB / 7 x 15A Fuse 4mm²		N/ A
CONTROL & MONITORING
Smartpack S	6x Input/ Output and Ethernet, See Smartpack S datasheet
MECHANICAL DATA
Dimensions (W/ H/ D)	19"/ 1U/ 262mm Recommended minimum cabinet depth, 300 mm
Weight, including controller and distributions, excluding rectifiers	5.3 kg [11.7 lbs]		5.2 kg [11.5 lbs]
DESIGN STANDARDS
Electrical safety	UL 60950-1, EN 60950-1
EMC	ETSI EN 300 386 V.1.4.1 EN 61000-6-1 (immunity, light industry) EN 61000-6-2 (immunity, industry) EN 61000-6-3 (emission, light industry) EN 61000-6-4 (emission, industry)
Environment	ETSI EN 300 019-2-1 Class 1.2 ETSI EN 300 019-2-2 Class 2.3 ETSI EN 300 019-2-3 Class 3.2
1) If only one string is used, one of the battery breakers can be configured as a load breaker. 2) Drawer solution, front access for actual connection, but cables enters from rear

Compact HE Eltek Flatpack S 1U Power Systems 3KW 5.4KW 230VAC Single Phase 2
