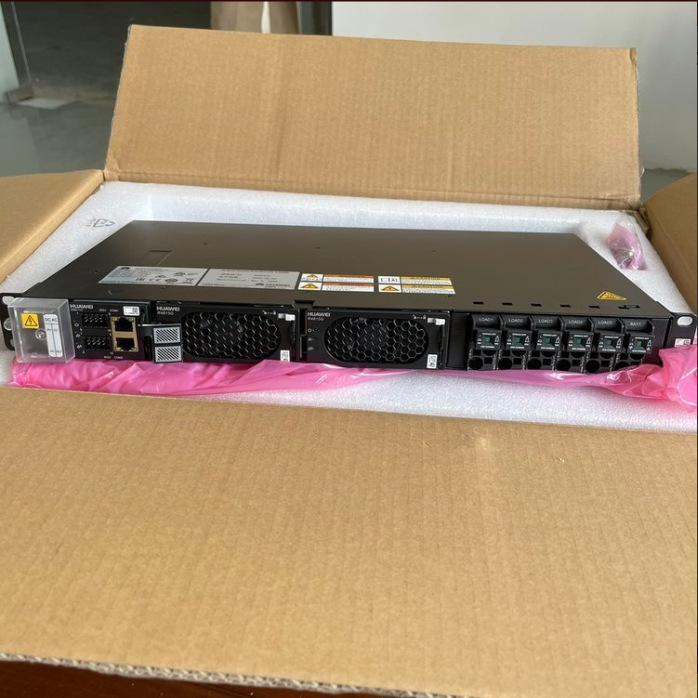

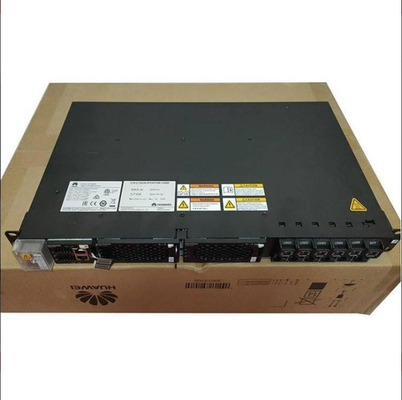

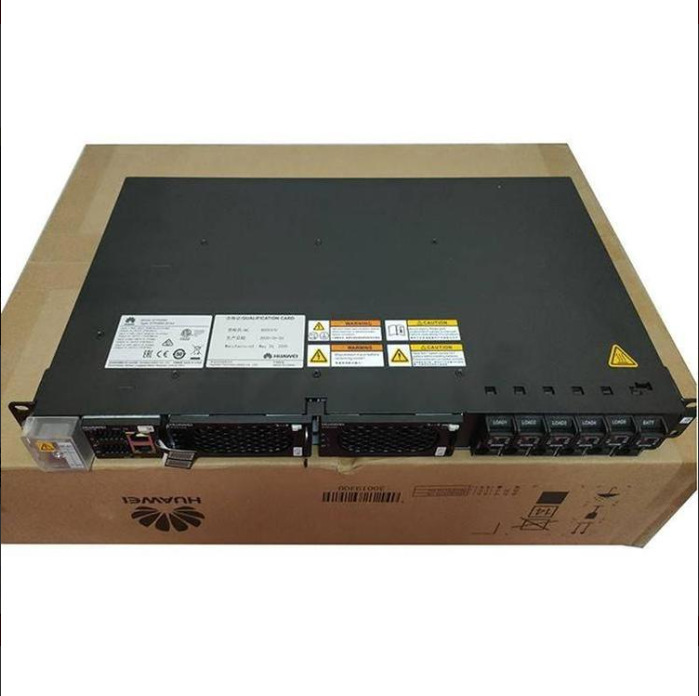

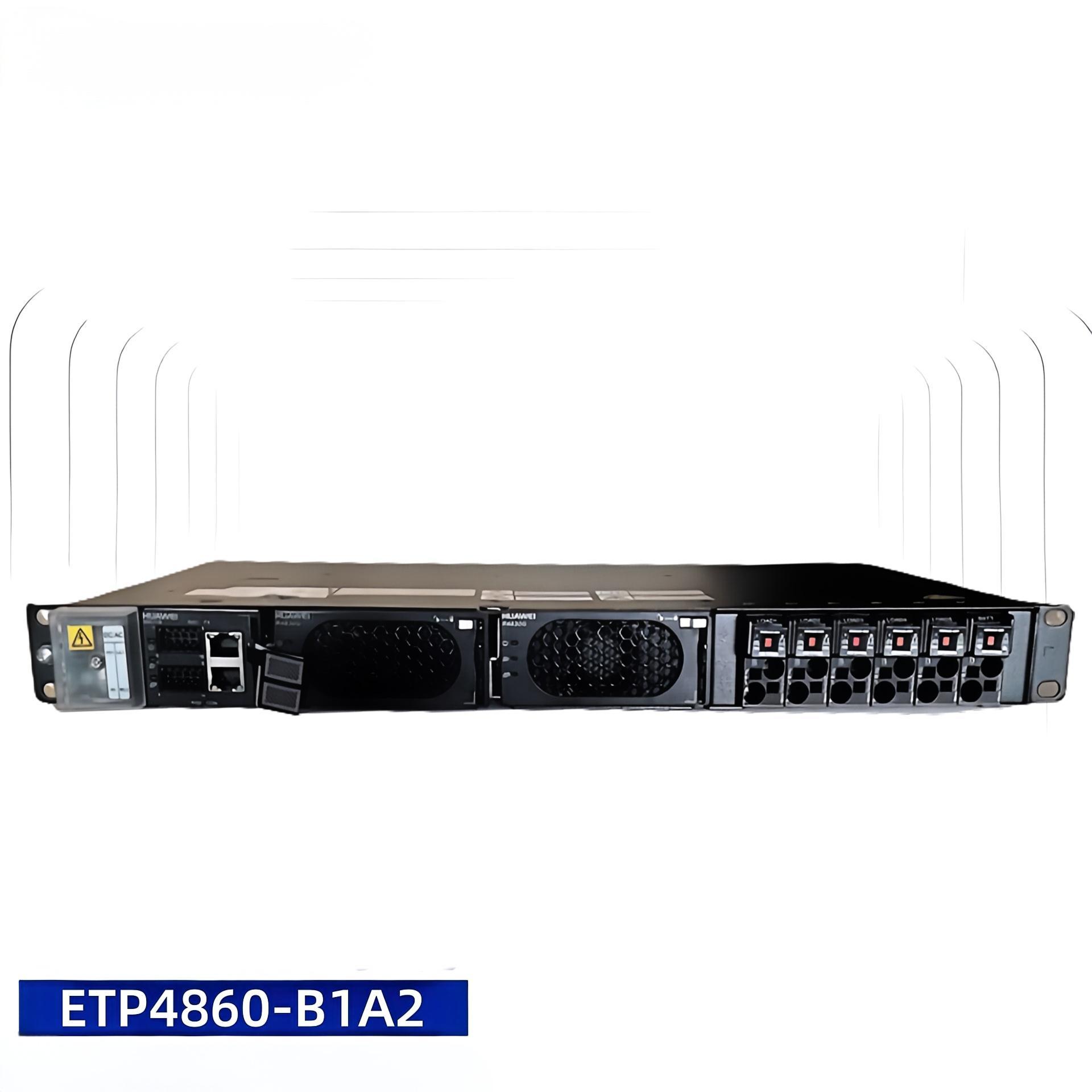

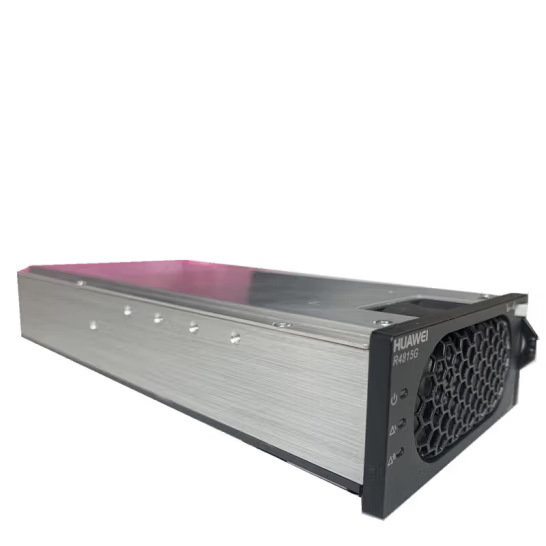

ETP4860-B1A2 is an embedded AC/DC power supply system with excellent performance, such as high energy efficiency, intelligent battery management, remote management, wide AC/DC input voltage range, etc. The system can configure 1U 30A high rectifier module, and provides 4kW output. The ETP4860-B1A2 can be embedded in a 19-inch rack or cabinet.

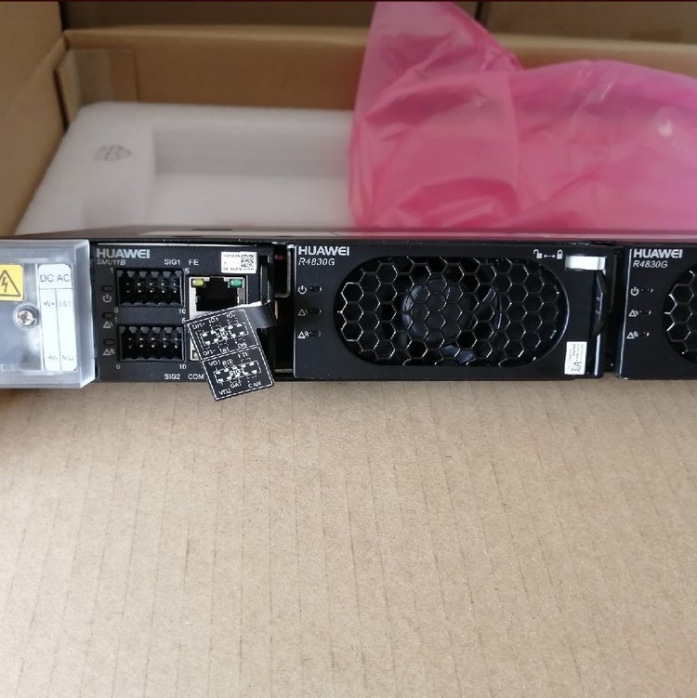

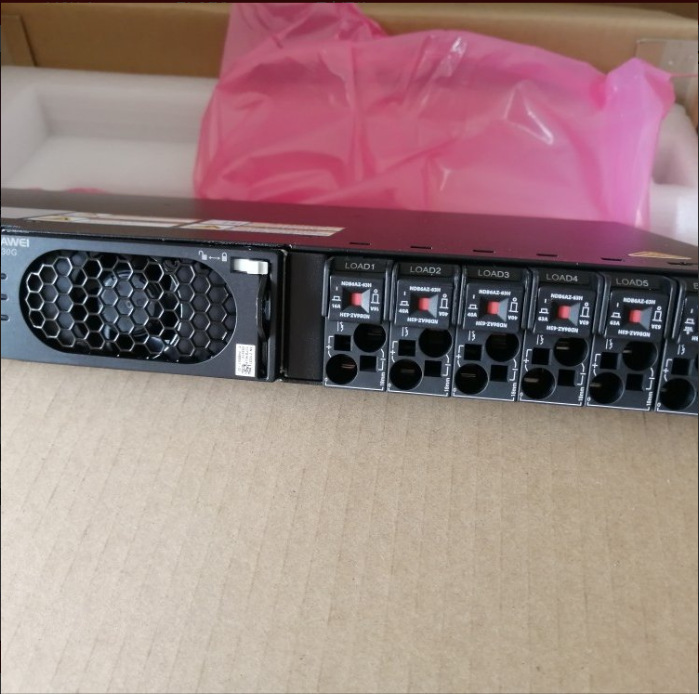

Huawei ETP4830-B1A2 is a telecommunications powerhouse equipped with SMU11B controller and two RG4830G1 rectifiers. It has 5 DC outputs. Each of the rectifiers features an output power of 2000 watts, making a total of 4000 watts for the entire powerhouse. The input voltage is 85 - 300 V AC (45 ~ 66 Hz), and the output voltage is 42 - 58 V DC.
Specification
|
Dimension
|
442 mm (W) × 255 mm (D) × 43.6 mm (1U,H)
|
|
Weight
|
≤ 4 kg (without rectifiers)
|
|
Cooling Mode
|
Natural cooling
|
|
installation Mode
|
Installed on 19-inch rack or cabinet
|
|
Cabling Mode
|
Front inlet and front outlet
|
|
Maintenance Mode
|
Front
|
|
Protection Level
|
IP20
|
|
Input Mode
|
220 V AC single phase or 110 V AC dual-live wire
|
|
Input Voltage
|
85–300 V AC, rated value: 220 V AC
|
|
Input Frequency
|
45–66 Hz, rated value: 50/60 Hz
|
|
Altitude
|
0 – 4000 m (When the altitude ranges from 2000 m to 4000 m, the operating temperature decreases by 1ºC for each additional 200 m.)
|
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
