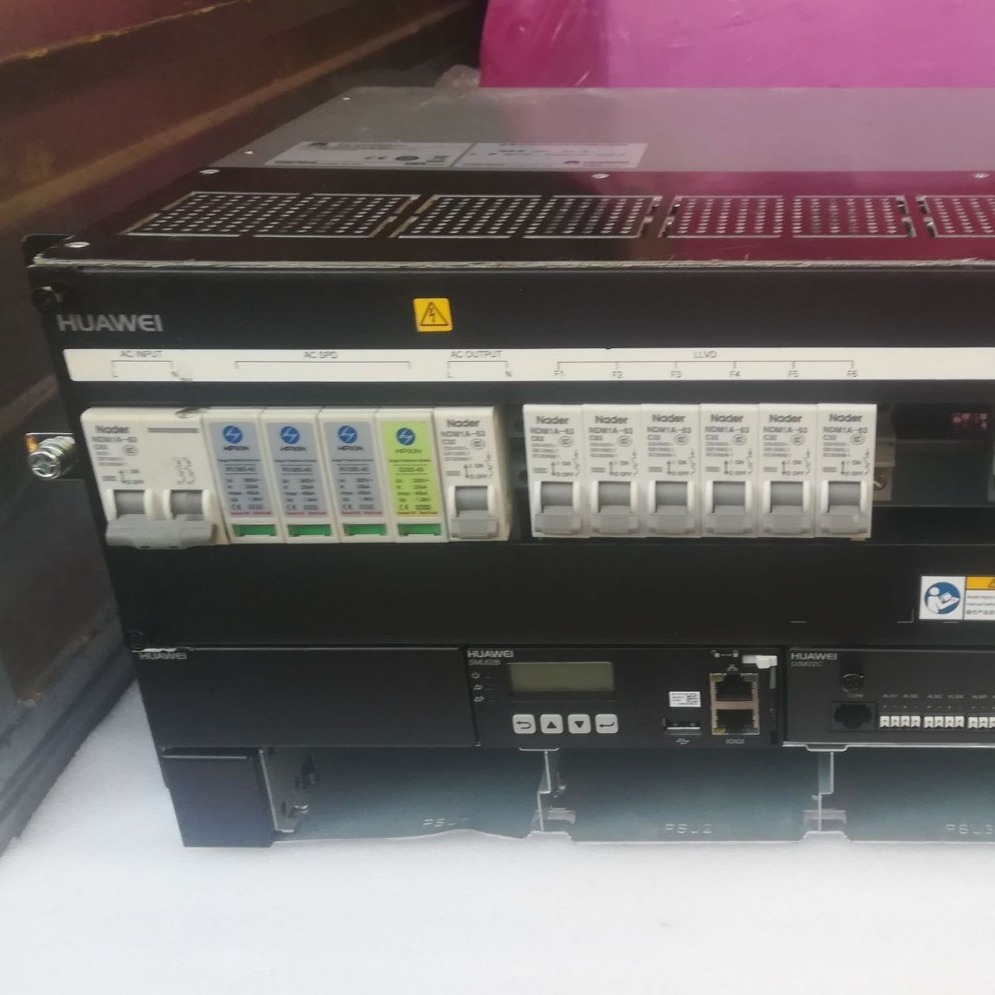

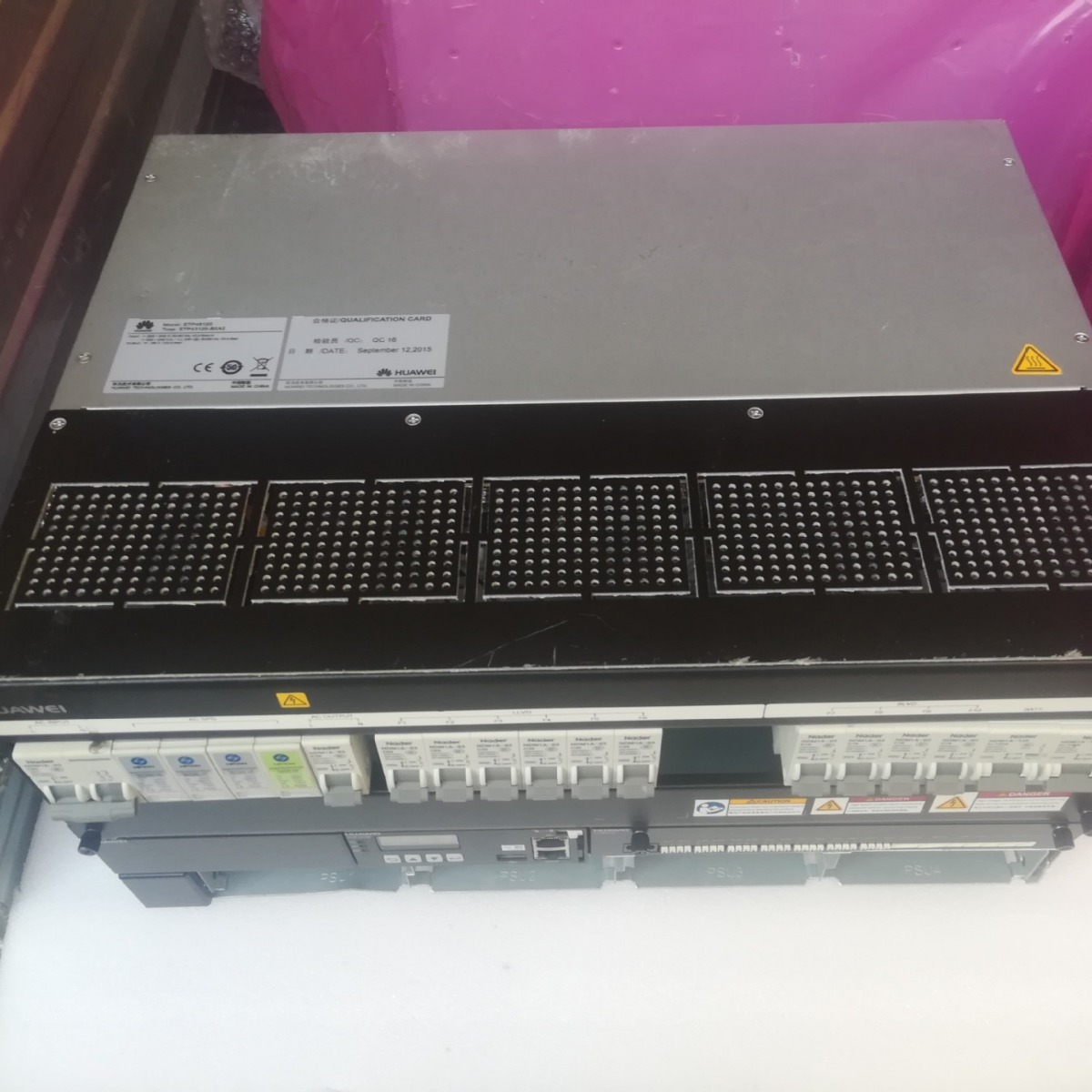

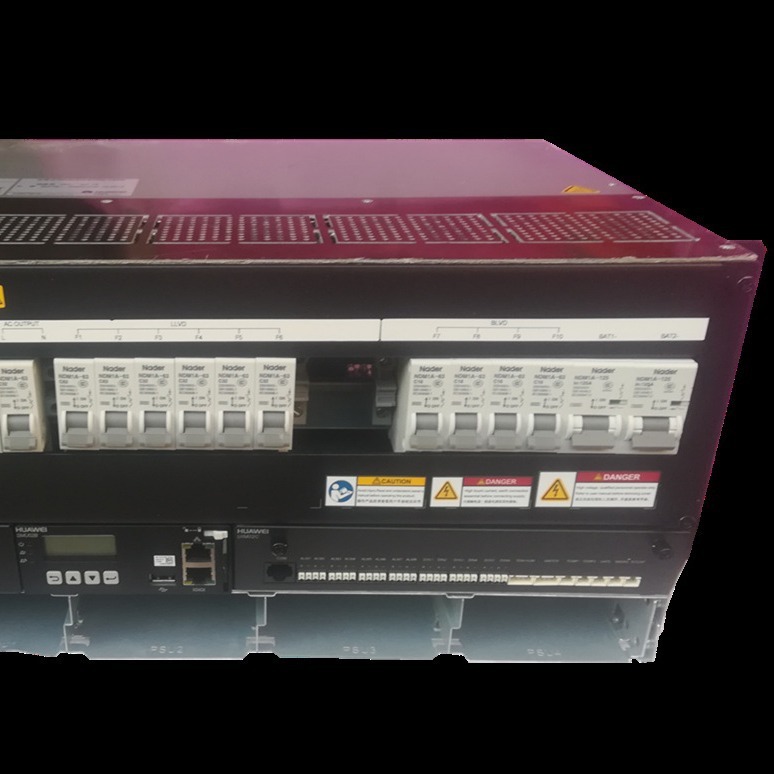

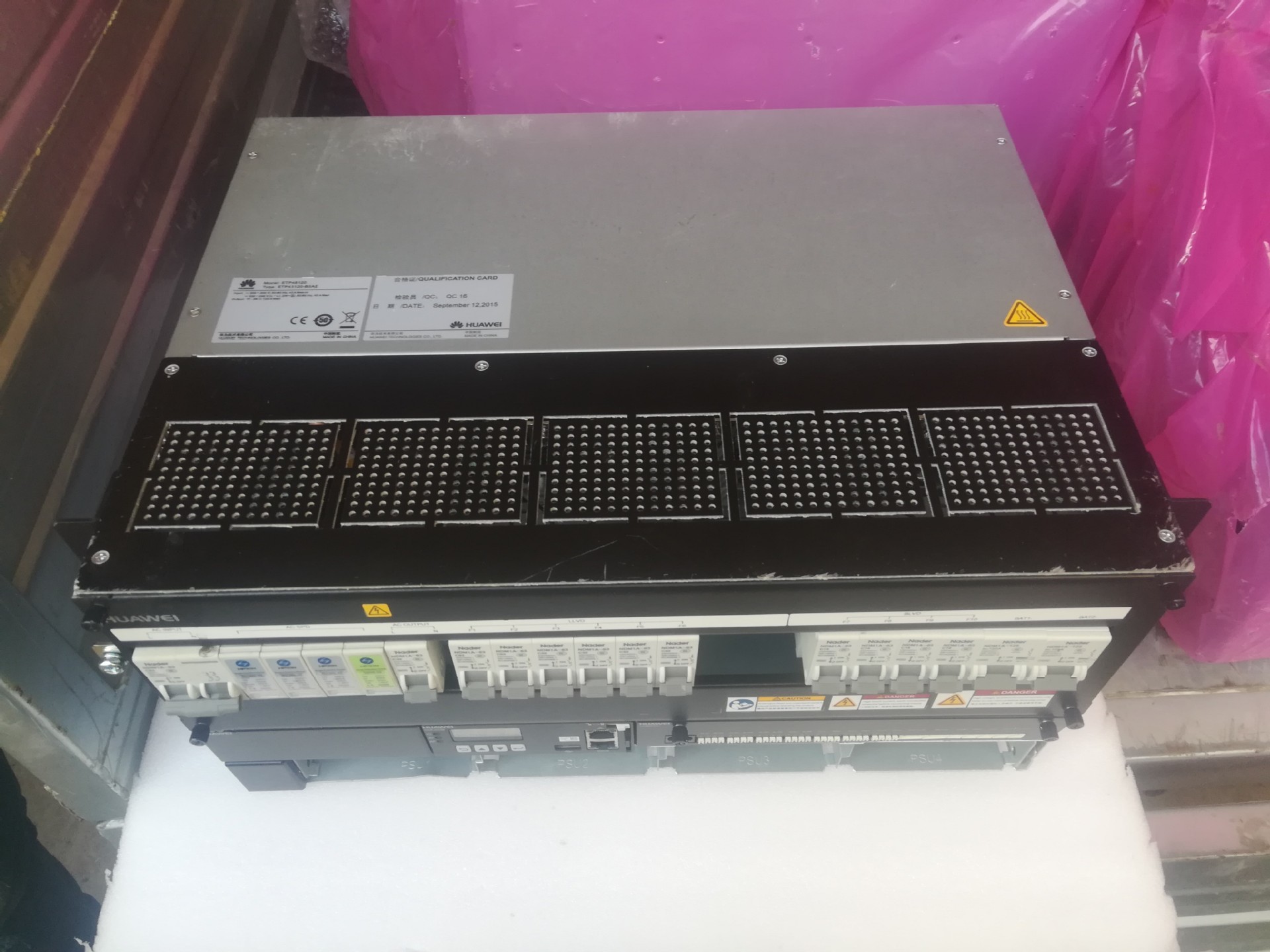

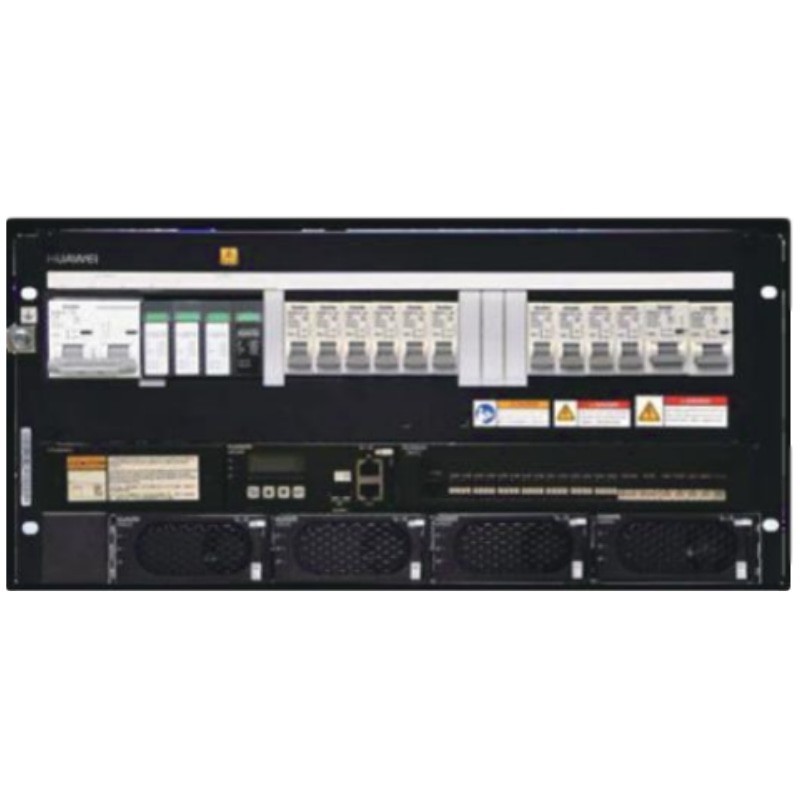

ETP48120-B5A2 is an AC/DC embedded power system with excellent performance such as high power efficiency, intelligent battery management, remote management, wide range of AC input voltage, etc.
The system can configure 4 pieces of 1U 30A high rectifier modules, and provides 120A rated current output.
ETP48120-B5A2 can be embedded in 19-inch rack or cabinet
Features:
1U rectifier: high density, high efficiency (> 96%), excellent high temperature performance (fully output below 55℃)
Wide operation temperature range of embedded power from – 40℃ to 65℃ Hot-swappable
Standard structure design, adapt 19/21 inch installation
Compact design(only 5U in height), saving user space
Excellent rectifier dormancy function increases system efficiency
Intelligent battery management and protection help to prolong battery lifespan
Support environmental signal monitoring and remote management through dry contact, serial interface or
Ethernet interface
Solutions
We provide a complete solutions including site survey, propose professional plan according to customer’s request ,technical support, and maintenance service for Telecommunication Companies in and out of China. We have a competent team and a network of trusted Partners around the world.
FAQ :
1. How do you control the quality?
A:All products before the shipment are simulated usage scenarios, load and full load and current sharing test to ensure the quality of the product.
2. What is your minimum order quantity?
A:There is no minimum order quantity, and one can also be done. The only difference is the price and schedule.
3. Can you introduce your company?
A:I am very honored. I will send you the company’s introduction document later to give you a more comprehensive and direct introduction to our company’s information.
4. What are the advantages of your company?
A:Adequate inventory, and supply guarantee for the subsequent renewal of supply, flexible provided according to different to different needs of customers, providing different solutions.
5. Can i send samples?Report it to me along with the price?
A:You can send samples, the samples are subject to large pride, and the freight needs to be borne by you.
6. How do your company deal with the problem on quality?
A:Our company has been doing this industry for almost 10 years. It has already had a certain reputation. We will carefully analyze it. If it is indeed our quality problem, you can rest assured that it will do things according to the contract agreement and will never let you have any after the worries, our service team will be happy to serve you.
7 What about the quality ?
A:100% original with new package. we will test each item before posted to make sure each item with good quality.
8 How many months for guarantee ?
A: 1 year quality guarantee
9 How to deal with any inferior -quality goods ?
A: Goods can be post by with our charge of post fee for any bad quality products within guarantee time.
